TRITON

Horizontal cable management system

Information

RAB-VP-X11-A1, RAC-VP-X11-A1

19″ 1U panel with 6 large cable management rings, suitable for lower load

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X13-A1, RAC-VP-X13-A1

19″ 1U panel with 6 small cable management rings, suitable for lower load

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X16-A1, RAC-VP-X16-A1

19″ cable management panel 1U with 6 large click-in ring and oval holes, suitable for lower load

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X21-A1, RAC-VP-X21-A1

19″ 1U panel with 6 cable management rings 70 x 40 mm, suitable for higher load

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X22-A1, RAC-VP-X22-A1

19″ 2U panel with 6 cable management rings 70 x 85 mm, suitable for higher load

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X23-A1, RAC-VP-X23-A1

19″ cable management panel 1U with 6 organizers of 70 x 27 mm with cable protection

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X02-A1, RAC-VP-X02-A1

19″ 1U panel with cable trunking, one side plastic rail

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X03-A1, RAC-VP-X03-A1

19″ 1U panel with cable trunking, two-sided plastic rail

Supply
  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X04-A1, RAC-VP-X04-A1

19″ 2U panel with cable trunking, one side plastic rail

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-X05-A1, RAC-VP-X05-A1

19″ 2U panel with cable trunking, two-sided plastic rail

Supply

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

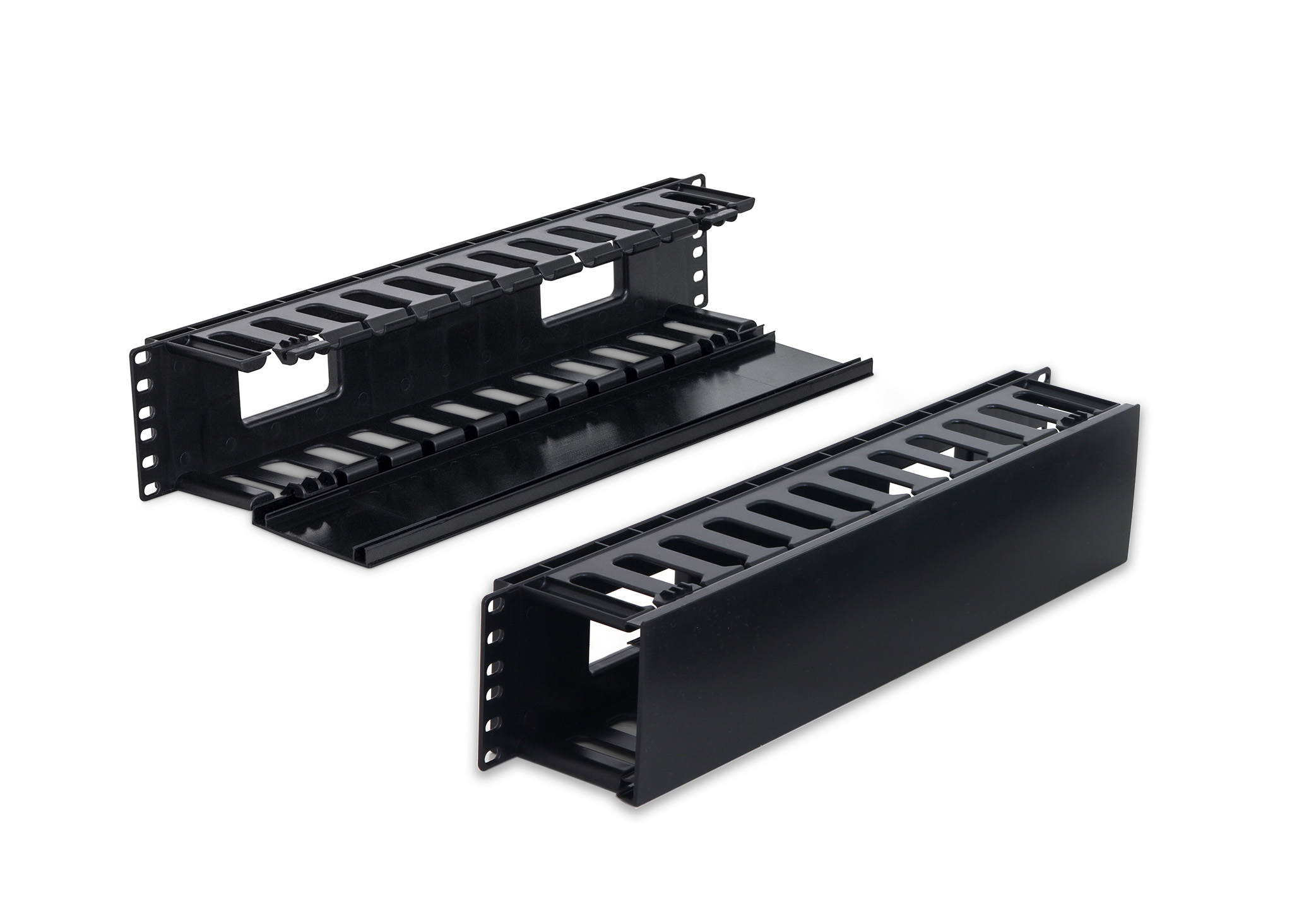

RAB-VP-X30-A1

19″ plastic cable management panel 1U, RAL 9005.

RAB-VP-X31-A1

19″ plastic cable management panel 2U, RAL 9005.

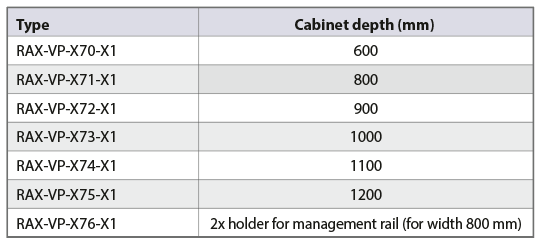

RAX-VP-X7x-X1

Set of cable management / strengthening bars for free standing cabinets RTA, RYA, RMA-N1, RZA-N1 (pair)

For enclosures with a load of more than 500 kg, we recommend install a set of cable management / strengthening bars, which also act as reinforcement.

RAX-VP-T01-X1

Telescopic cable management bar 600-1100 mm.

RAX-VP-T02-X1

Telescopic cable management bar for 600-900 mm deep cabinets (pair). Can also be used for 19″.

RAX-VP-T03-X1

Telescopic cable management bar for 800-1200 mm deep cabinets (pair).

RAB-VP-X12-X1, RAC-VP-X12-X1

The special cable management panel is intended for installation on cabinet’s vertical rails. It is also possible to be used for installation on a vertical perforation in the rear section of wall-mounted cabinets.
Cable management rings (RAB-MS-X21-X1) can be installed on the management panel for better organisation of cables. They are not included in the supply.
The easy fixing system consists in hanging on the vertical rail. The contra directional safety pin prevents an undesirable release.
width 170 mm, height 150 mm.

RAB-VP-X59-A1, RAC-VP-X59-A1

19“ cable management rail.

Příbal

  • Screw M6 x 10 ………………………….. 4x
  • Plastic washer …………………………… 4x
  • Captive nut M6 …………………………… 4x

RAB-VP-D5x-X1, RAC-VP-D5x-X1

Cable management rail for RDA, RTA, RYA, RMA N1 a RZA N1.

RAX-VP-Xxx-X1

Set of cable management/reinforcing bars for RTA, RYA, RMA-N1, RZA-N1 free-standing data cabinets (pair).

RAX-VP-x70-x1 RAX-VP-X71-X1 RAX-VP-x72-x1 RAX-VP-x73-x1 RAX-VP-X74-X1 RAX-VP-X75-x1 RAX-VP-x76-X1 RAX-VP-X50-X1 RAX-VP-X51-X1 RAX-VP-x52-x1 RAX-VP-XS1-X1 RAX-VP-KS4-X1 RAX-VP-X55-x1
