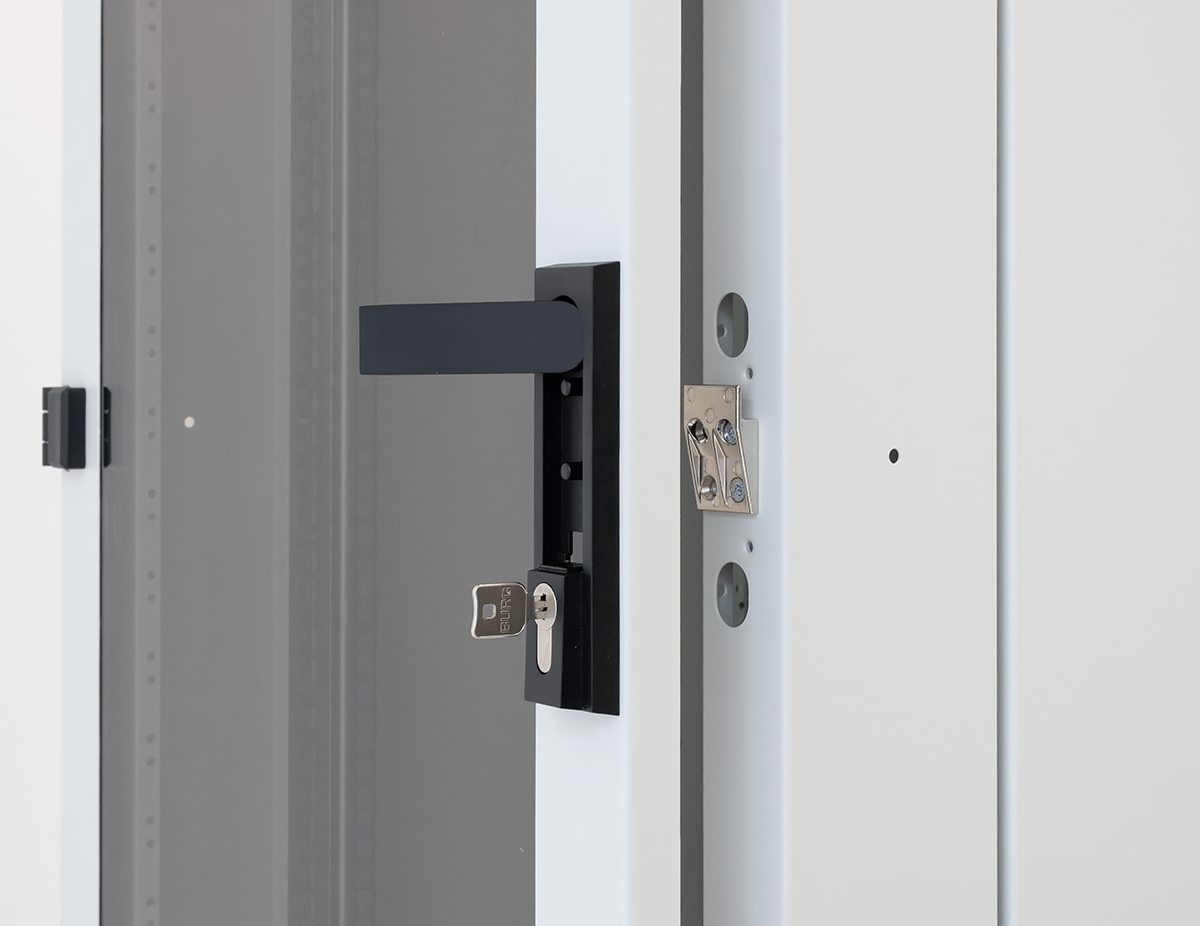

TRITÓN® locking system

The new Tritón all-metal handle is made of Zamak zinc alloy , just like the bolt and locking counterpart. The material ensures a higher level of security for the technology installed in the cabinet. The handle is fully backward compatible with the original door design. We are currently developing an electronic unit that can be retrofitted to the new handle.

Innovation features:

  • Automatic handle deployment on lock release, door opens by turning the handle,
  • Standardized mounting hole for PHZ profile cylinder lock (according to EN 1303 standard),
  • Option to replace the round Burg lock with a half-cylinder lock (available with a universal, unique, paired, master, or dedicated unique key system),
  • Made of Zamak zinc alloy with painted surface finish, RAL 9005 color with fine texture,

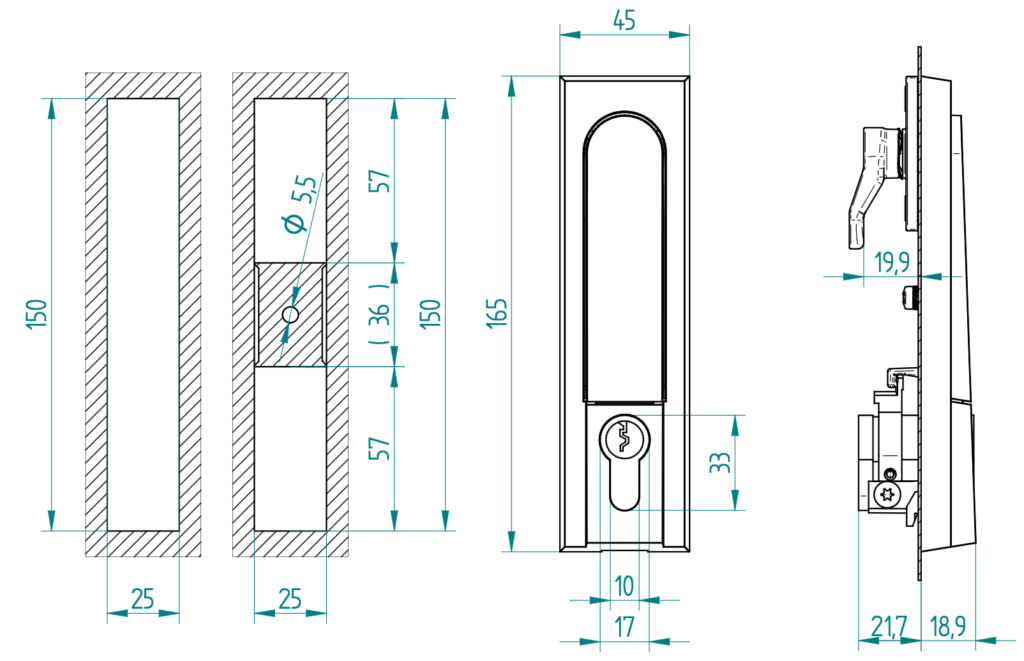

  • The handle can be installed in a 150×25 mm opening,
  • Handle grounding tested by an external certified laboratory,
  • Handle compatible with single- and multi-point locking systems,
  • Standard supply includes a round Burg lock insert and universal key, compatible with locks in side and rear covers,
  • Newly supplied doors include a universal mounting hole with grounding support. The center section for grounding can be removed for other handles,
  • Option to supply the handle without a lock insert, allowing the customer to install their own lock insert.

You can select between a standard round cylinder lock with a universal key or a half-cylinder lock. At any time during operation, even with a fully equipped cabinet, it is possible to upgrade to a higher security level by simply replacing a few components or switching to a master key system.

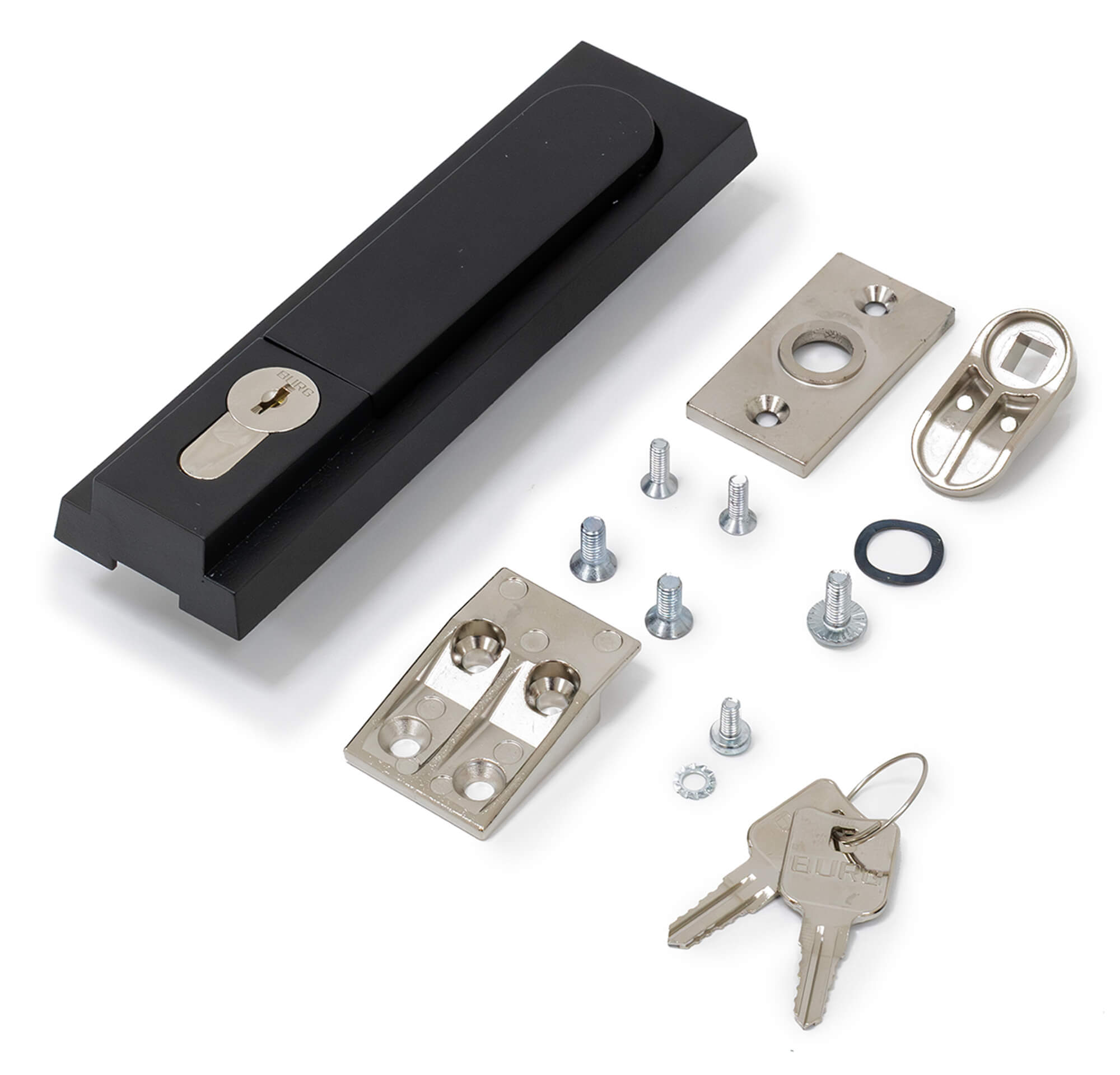

RAX-MS-X35-X2

TRITON metal handle for rack cabinets, incl. universal lock insert, 2x key, locking handle.

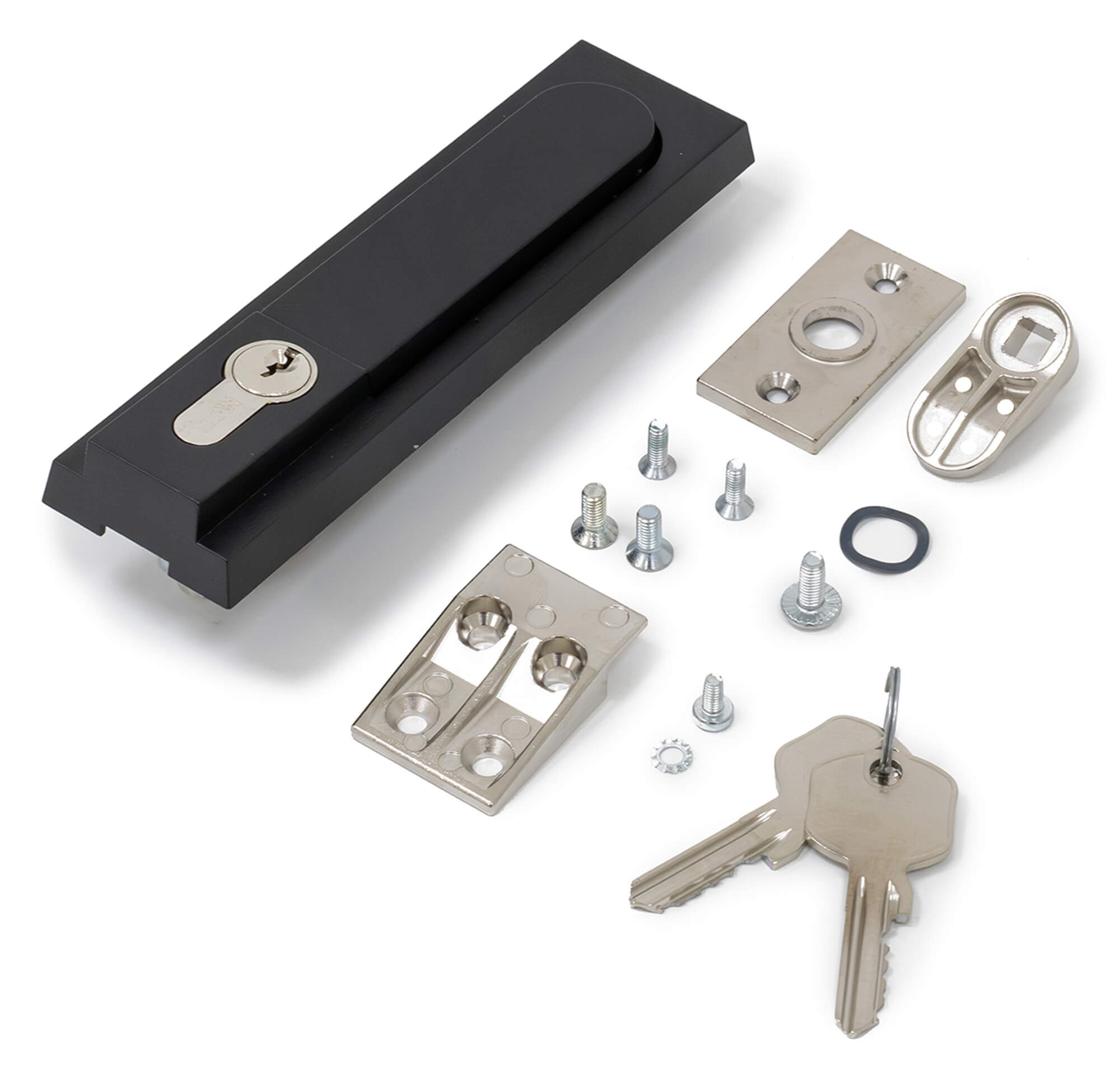

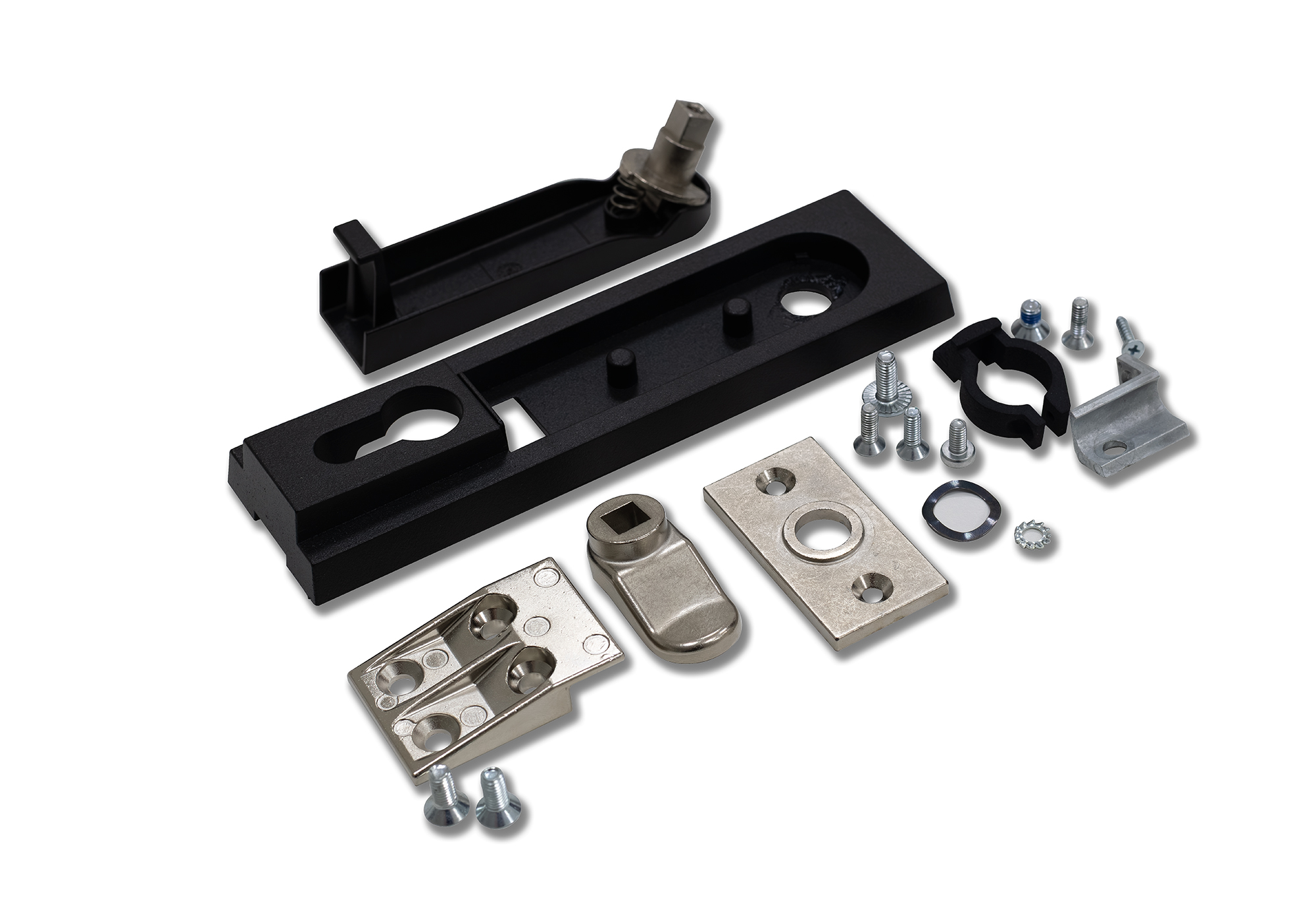

RAX-MS-X36-X2

TRITON metal handle for rack cabinets with half-cylindrical insert.

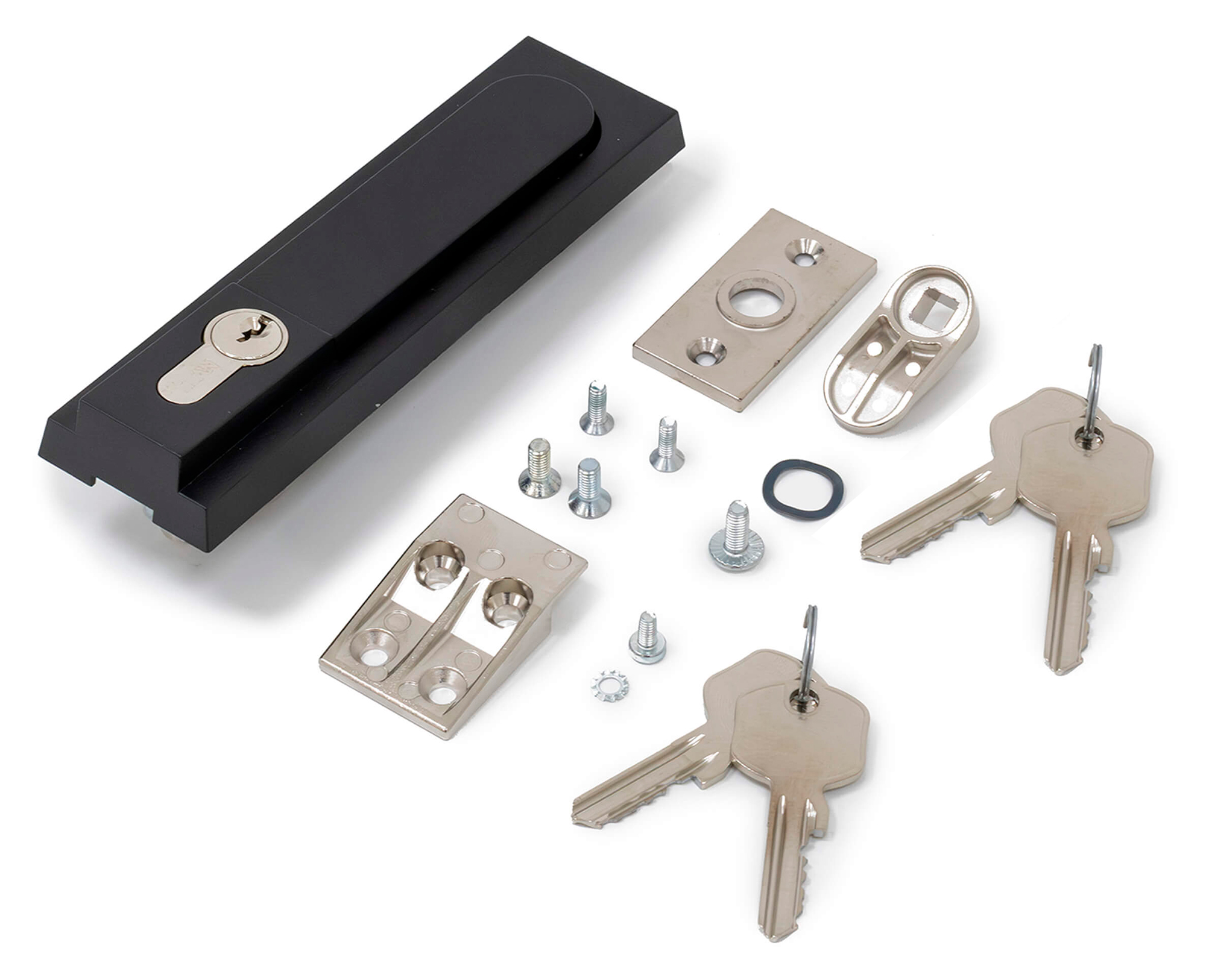

RAX-MS-X68-X2

TRITON metal handle with half-cylindrical insert – 4x unique key.

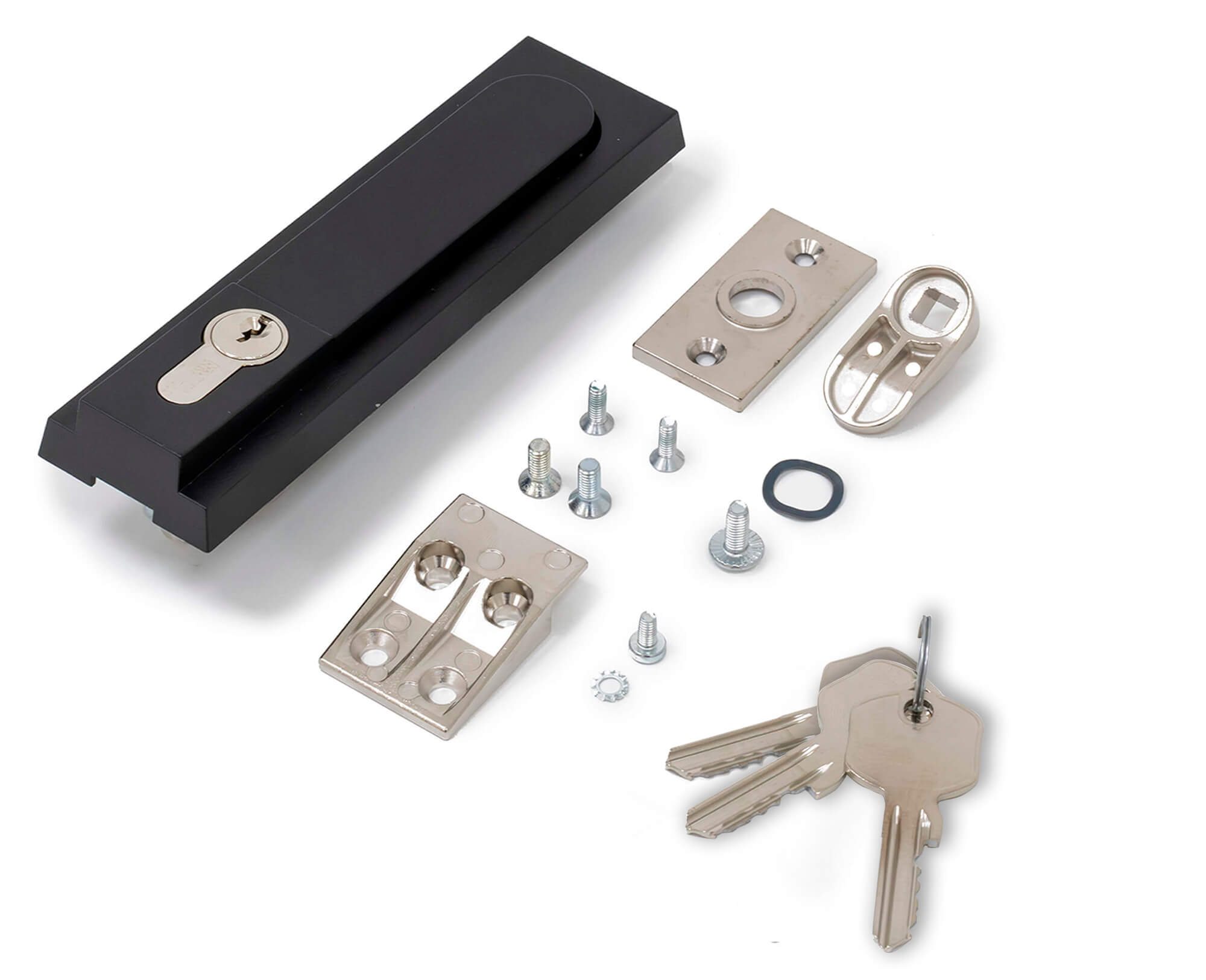

RAX-MS-X93-X2

TRITON metal handle with half-cylindrical insert, incl. lock insert (U) – 3x same key.

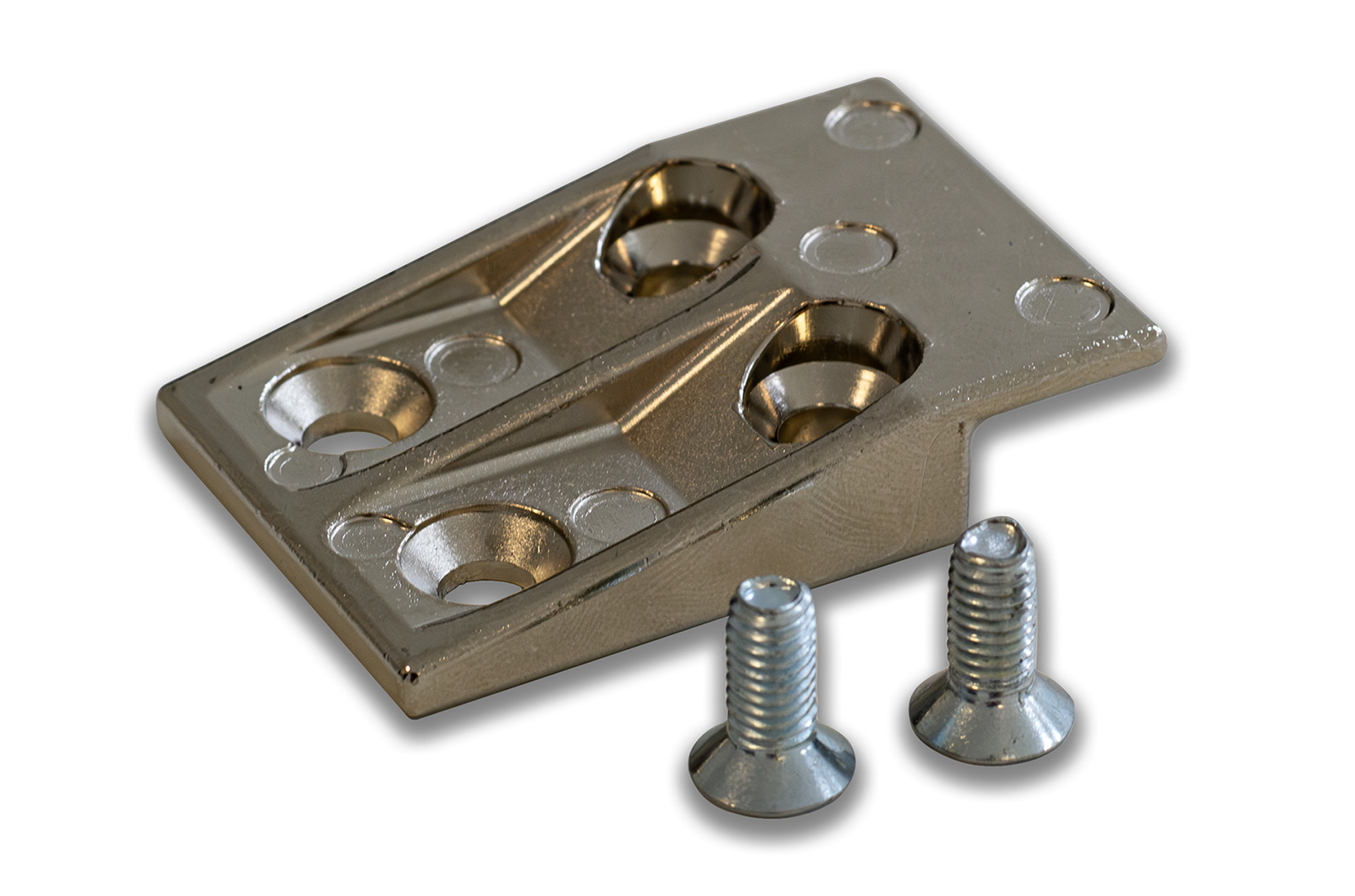

RAX-MS-X61-X2

Closing handle of rack cabinet for TRITON metal handle.

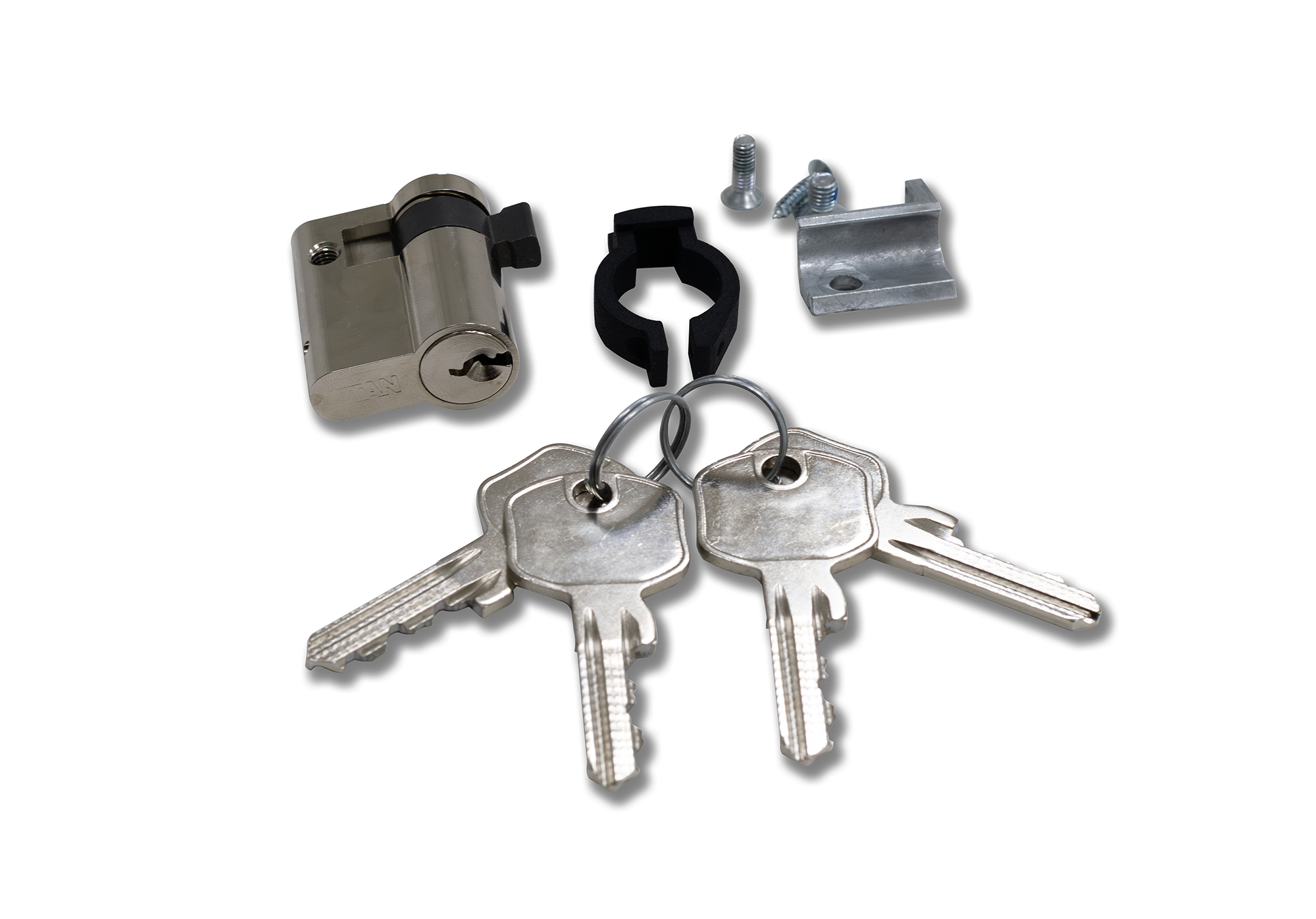

RAX-MS-X72-X2

Set for conversion of TRITON all-metal handle to semi-cylindrical insert – 4x unique key.

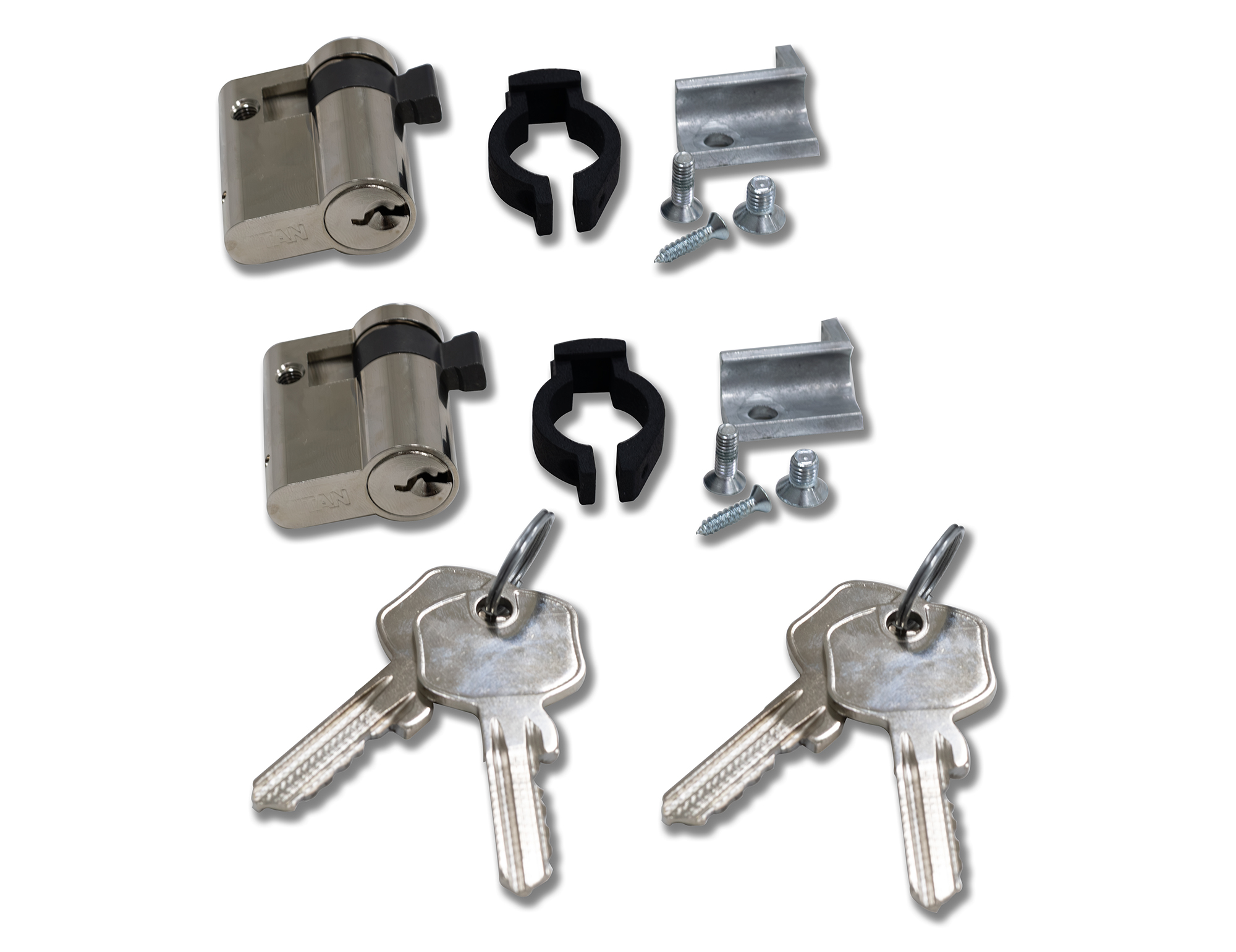

RAX-MS-X73-X2

Set for conversion of two TRITON all-metal handles to 2x pair of semi-cylindrical inserts – 4x same key for both inserts.

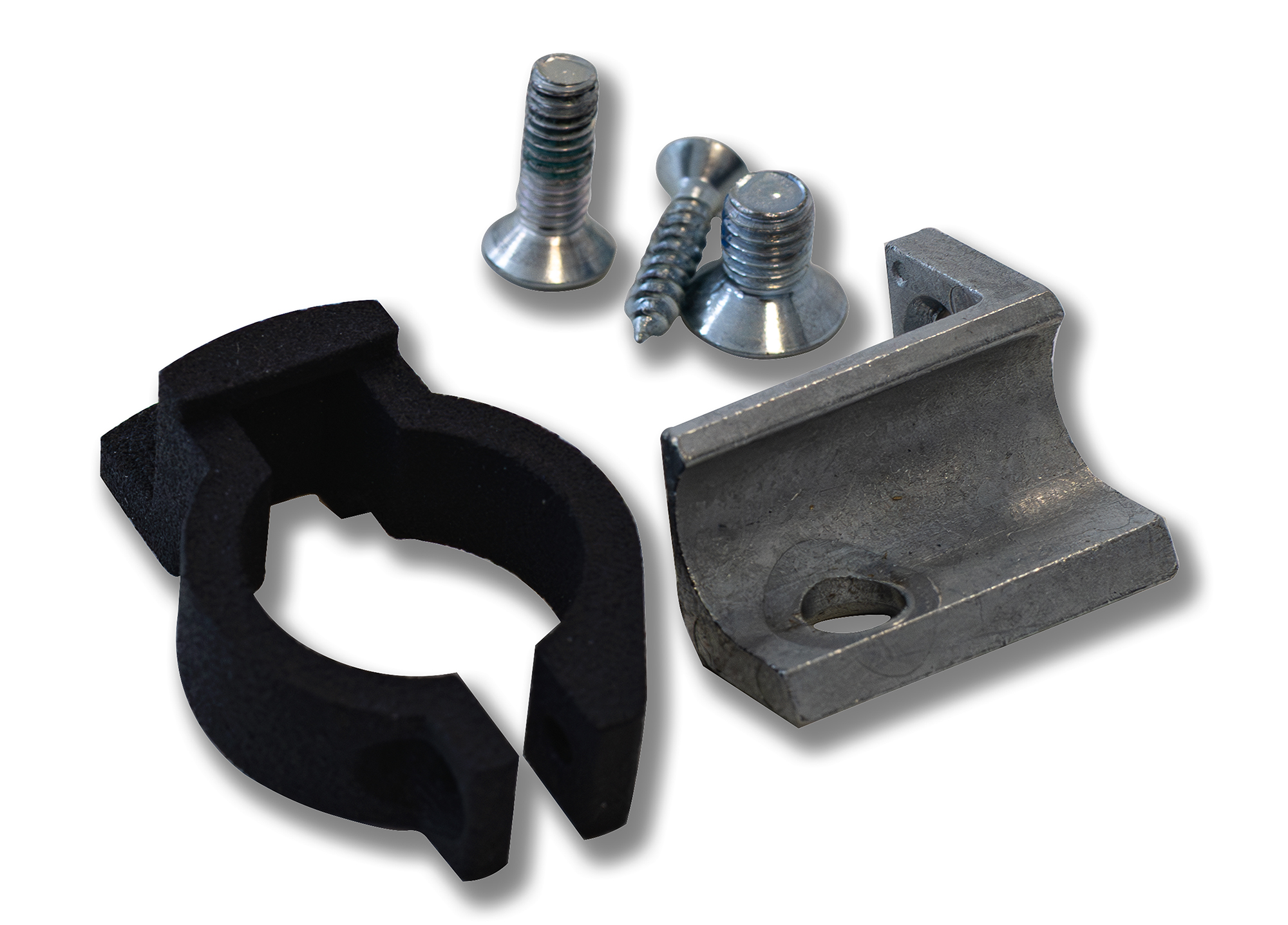

RAX-MS-X74-X2

Set for conversion of TRITON all-metal handle to semi-cylindrical insert – WITHOUT INSERT!

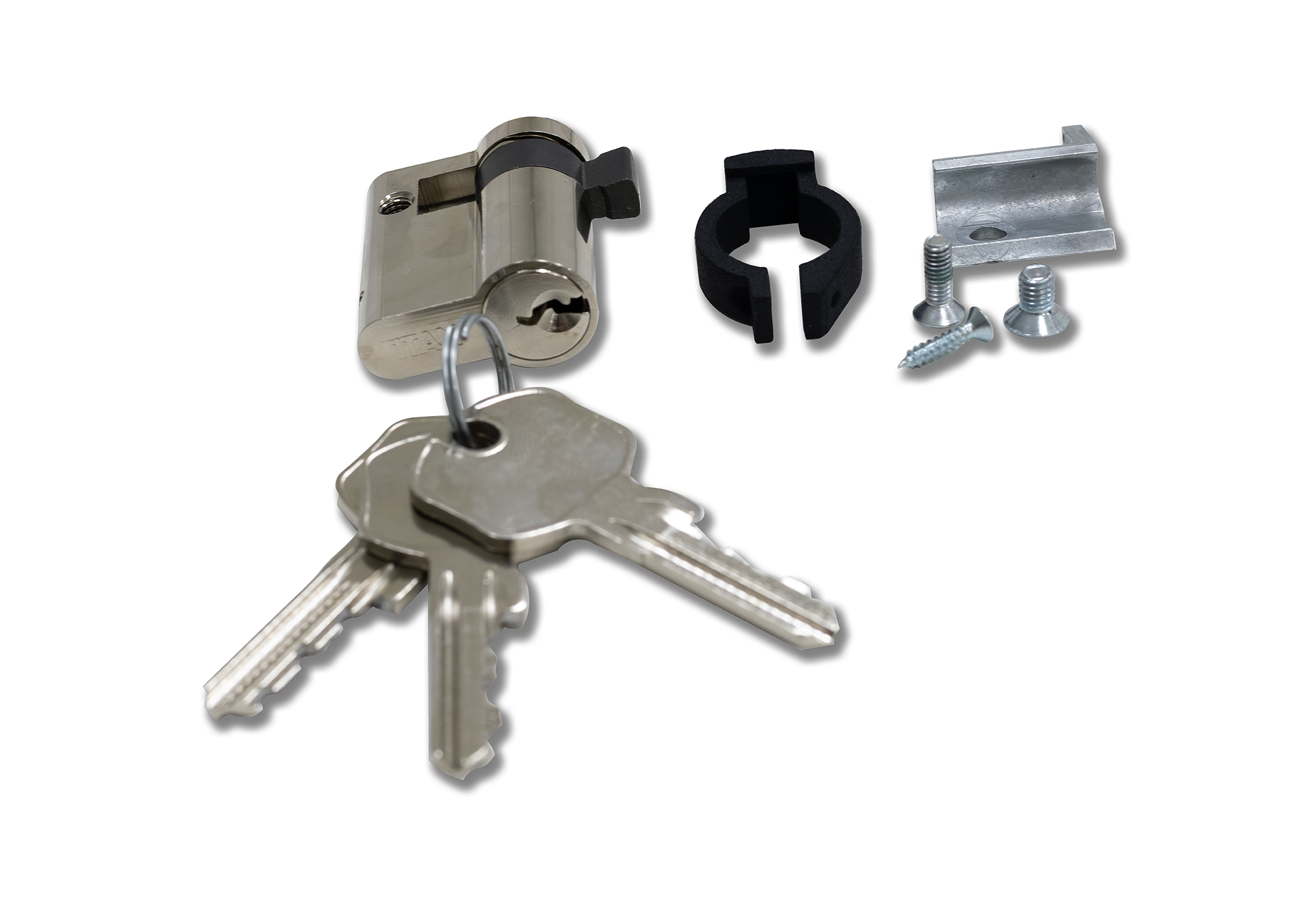

RAX-MS-X75-X2

Set for conversion of TRITON all-metal handle to semi-cylindrical insert – 3x universal key.

RAX-MS-X97-X1

Plastic swing handle with 4-digit mechanical code + opening by special emergency key.

RAX-MS-X07-X1

Round lock BURG for fully glass wall-mounted distribution cabinets + 2x common key.

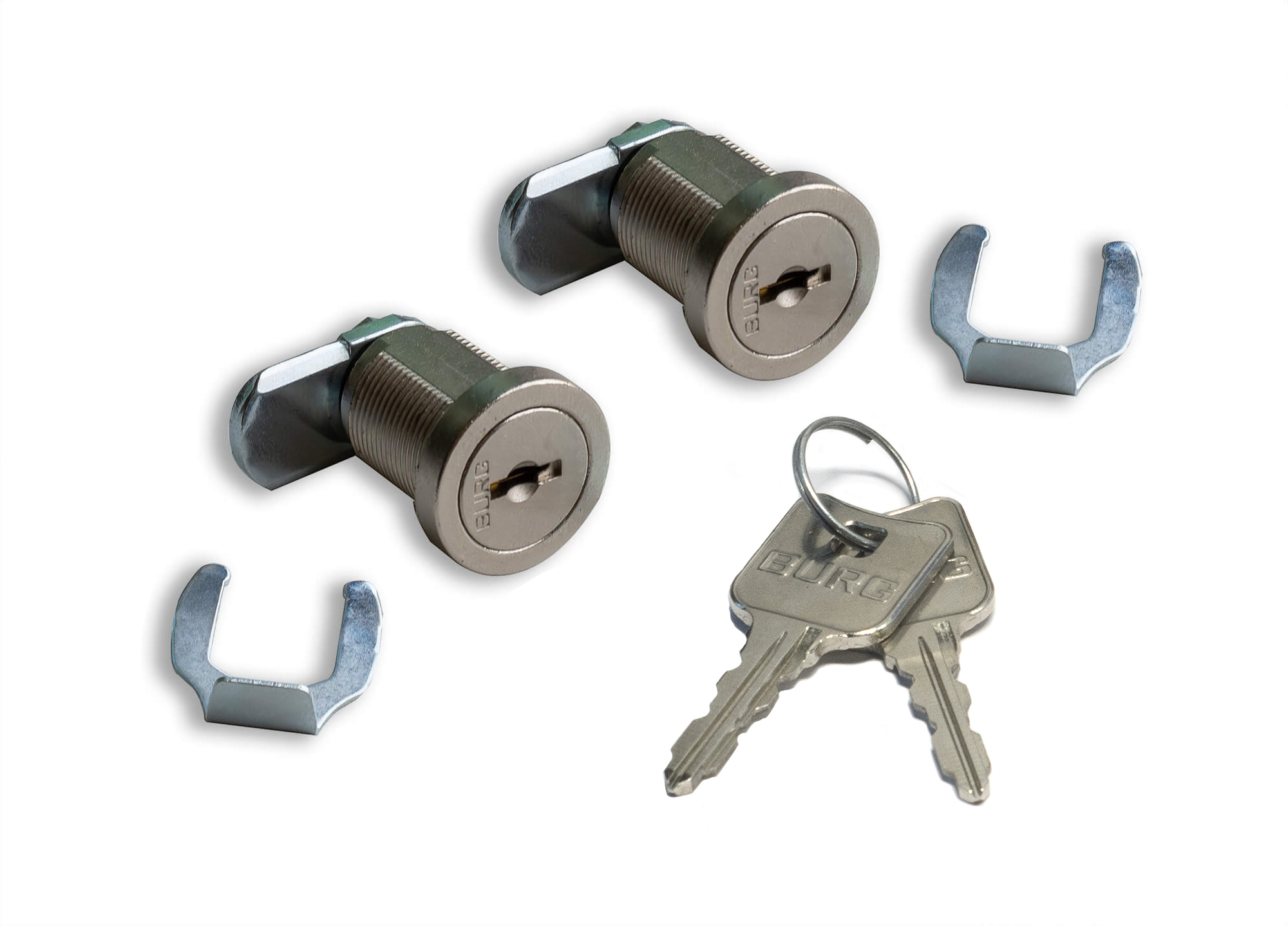

RAX-MS-X09-X1

Round BURG lock for rack side panels + 2x common key.

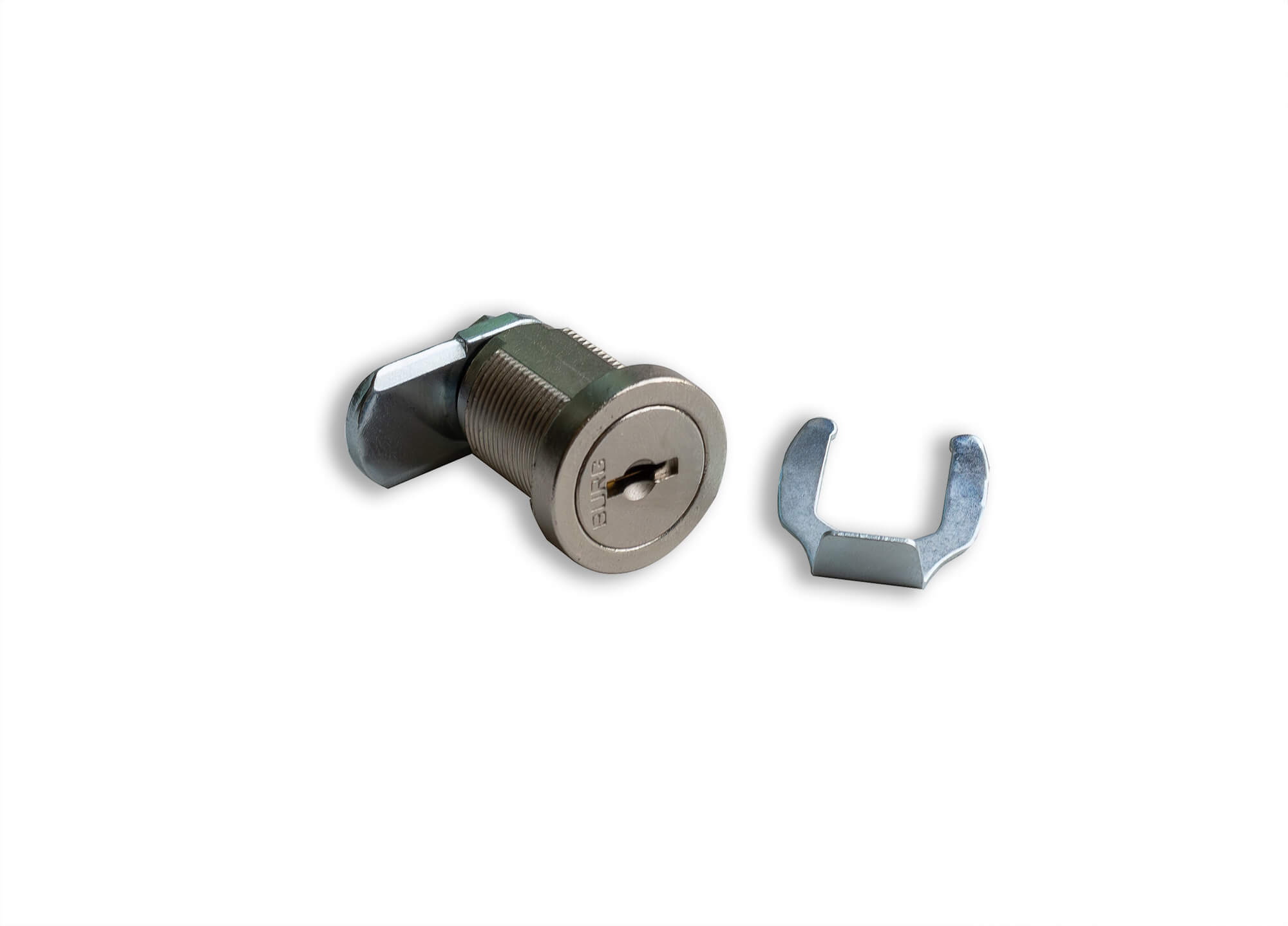

RAX-ZM-X07-X1

Round BURG lock for rear panel + 2x key.

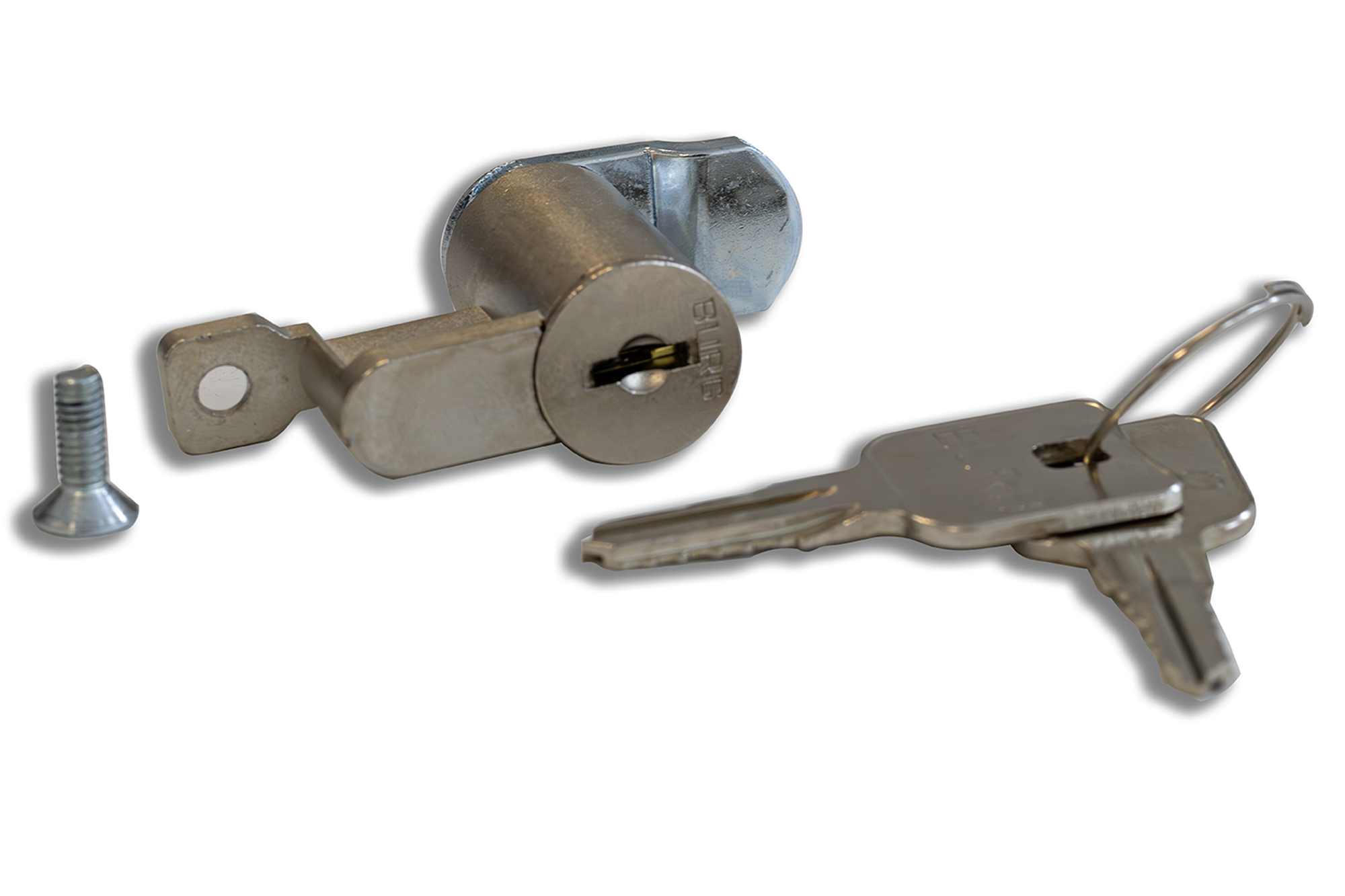

RAX-MS-X25-X2

Universal lock Burg for metal handle of rack cabinets + 2x universal key.

RAX-MS-X50-X1

Round BURG lock for locking the rear part of RBA two-sectioned cabinet using a common key – without key.

RAX-MS-X10-X1

Key for round BURG lock – 2x common key.

MULTI POINT LOCKING SYSTEMS

We have been offering these systems for many years and especially cabinets with a high IP rating could not exist without them. With the new handle comes the possibility to use a wider range of lever and sliding multipoint locking systems from reputable manufacturers.
