Other accessories
Information
RAX-Mx-Xxx-X1
Mounting kit.
RAX-MO-X03-X1
– Basic packet of components for fixing of device into a cabinet or a frame. It contains a captive nut – 50x, a screw – 50x , plastic washer – 50x.
RAX-MO-X09-X1
– Basic packet of components for fixing of device into a cabinet or a frame. It contains a captive nut – 20x, a screw – 20x, plastic washer – 20x.
RAX-MS-X19-X1
– Basic packet of components for fixing of device into a cabinet or a frame. It contains a captive nut – 4x, a screw – 4x, plastic washer – 4x.
RAX-MS-X27-X1
Joining kit for free-standing cabinets – with sealing tape.
RAX-MS-X28-X1
Joining kit for free-standing cabinets – without sealing tape.

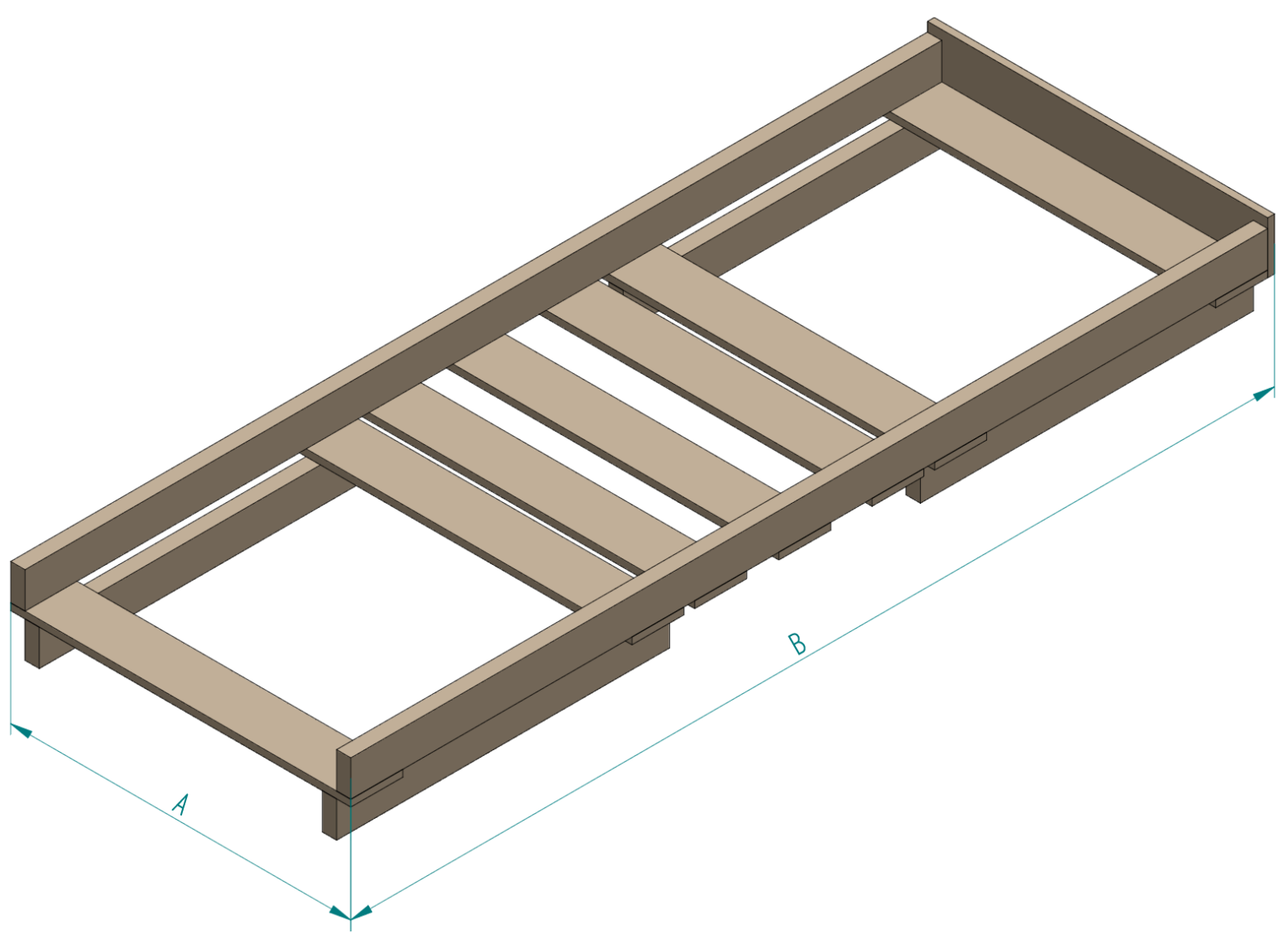

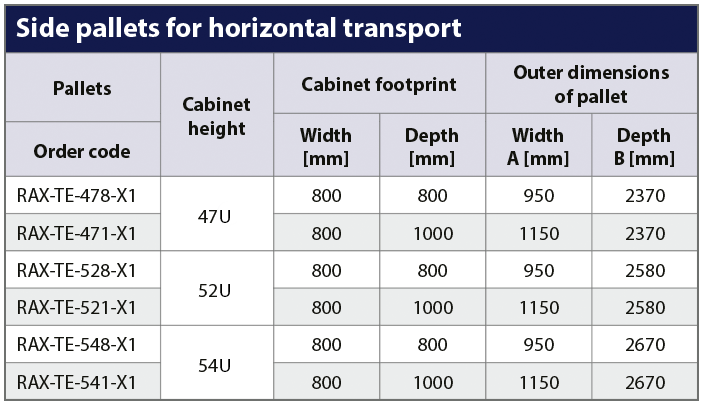

RAX-TE-xxx-X1
Side pallets for transport in a horizontal position.
All RMA cabinets 800 mm wide, 800 and 1000 mm deep, from 47 U height upwards, can be optionally delivered on a pallet in a horizontal position using RAX-TE-xxx-X1 pallets. These pallets must be ordered separately according to the cabinet type.
The cabinet is placed horizontally on a pallet, including a standard pallet for vertical packaging. The cabinet can thus be placed in a vertical position and easily handled (see technical data sheet).
Included
Screw 6 x 45 …………………………………. 3x
Binding tape with clip 5 m ……………. 2x
RAX-MO-X03-X1 RAX-MO-X09-X1 RAX-MS-X19-X1 RAX-NZ-X47-X1 RAX-MS-X27-X1 RAX-MS-X28-X1 RAX-RV-X01-X2
