Power Distribution 230 V
Information

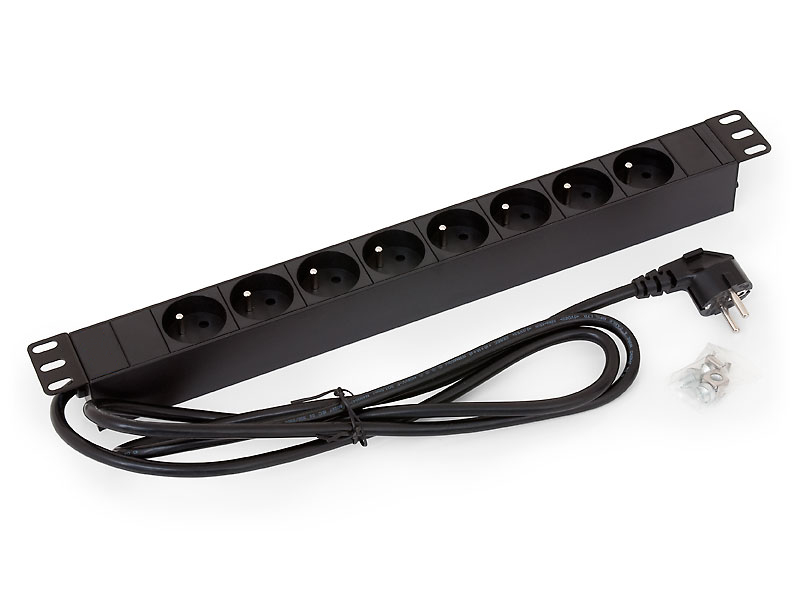

RAB-PD-X01-A1
19‘‘ distribution panel 1U, 8 sockets ČSN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

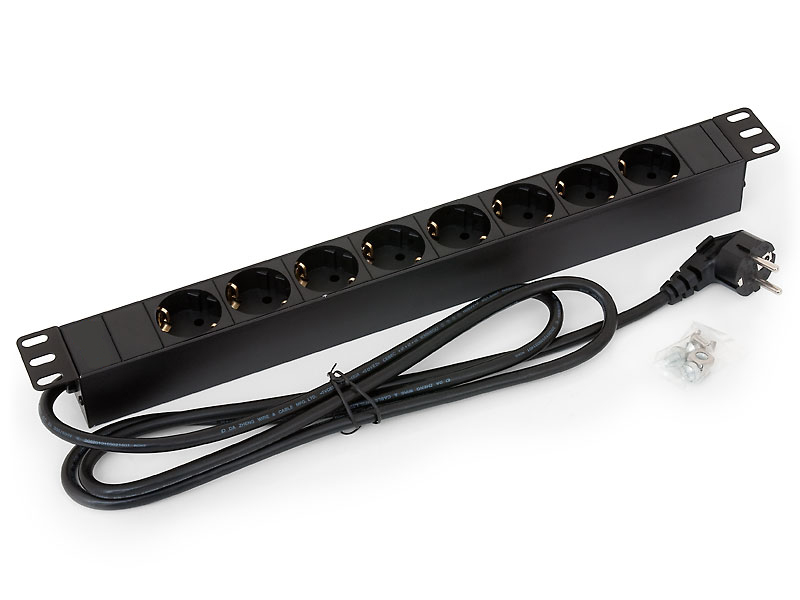

RAB-PD-X02-A1
19‘‘ distribution panel 1U, 8 sockets DIN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

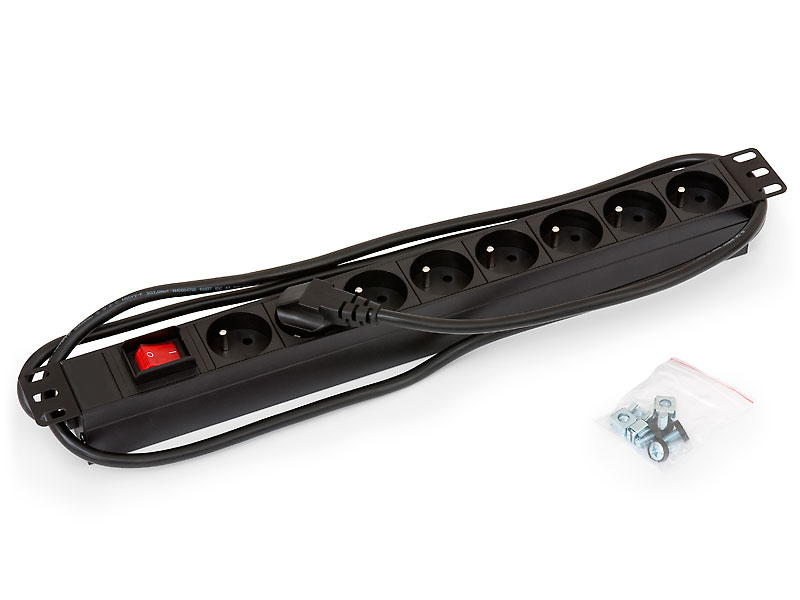

RAB-PD-X03-A1
19‘‘ distribution panel 1U, 8 sockets ČSN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, lighted master switch with a plastic cover, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

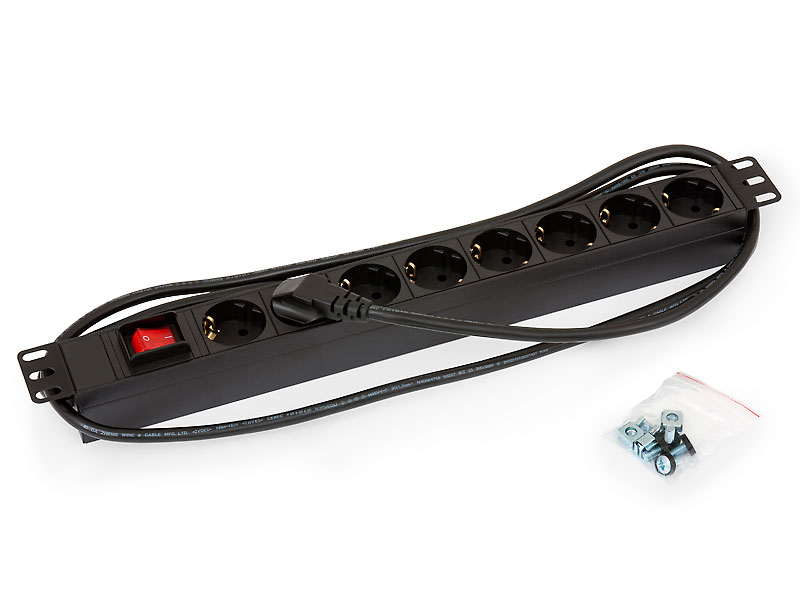

RAB-PD-X04-A1
19‘‘ distribution panel 1U, 8 sockets DIN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, lighted master switch with a plastic cover, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

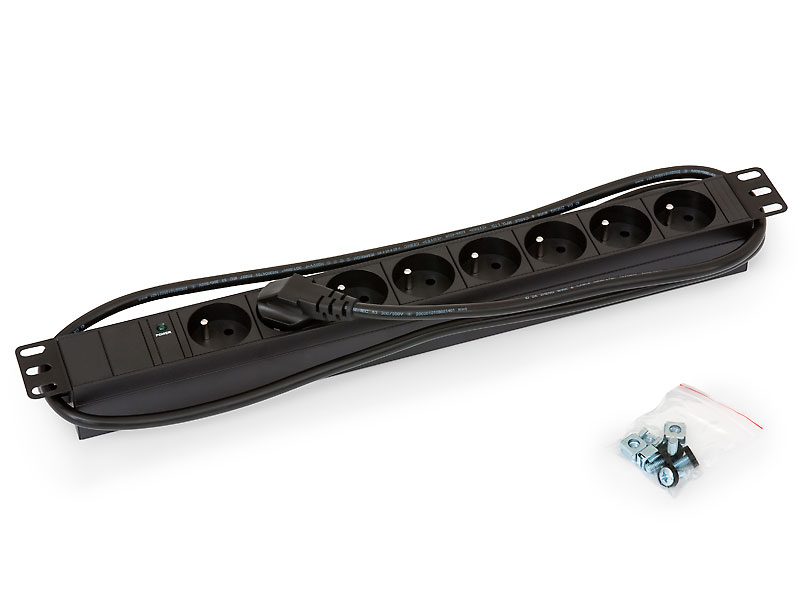

RAB-PD-X05-A1
19‘‘ distribution panel 1U, 8 sockets ČSN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, power indicator, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

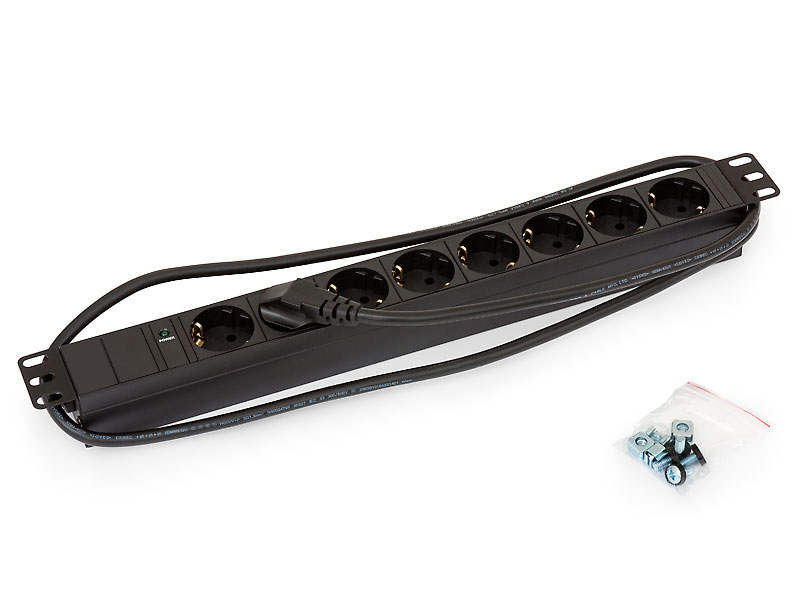

RAB-PD-X06-A1
19‘‘ distribution panel 1U, 8 sockets DIN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, power indicator, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

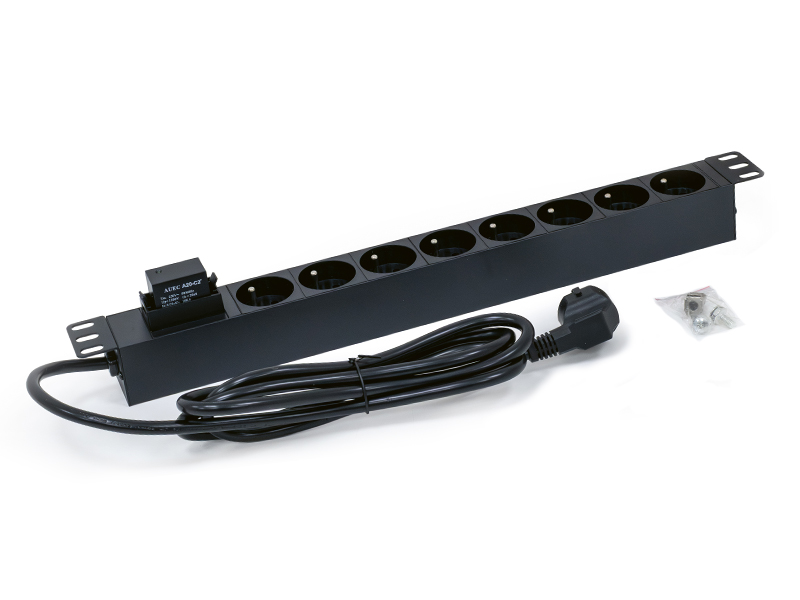

RAB-PD-X07-A1
19‘‘ distribution panel 1U, 8 sockets ČSN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, Varistor surge protection /scheme in section technical support/, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

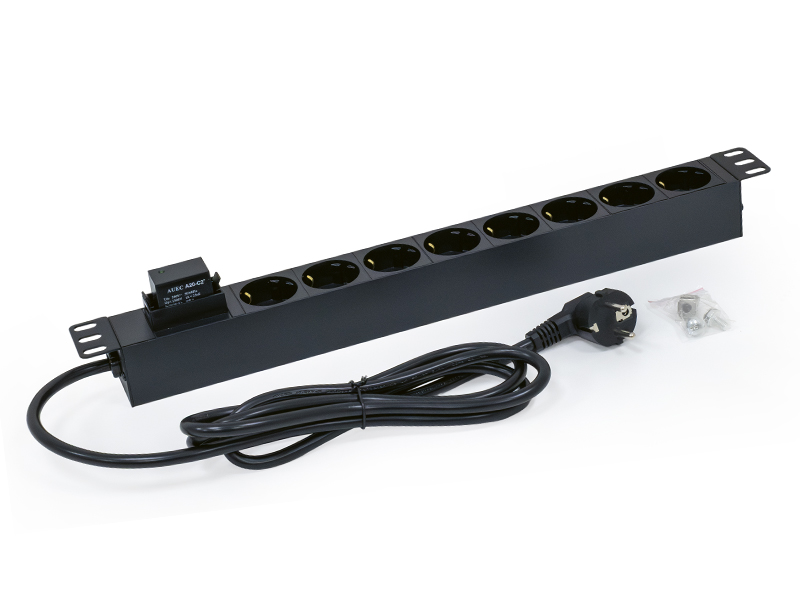

RAB-PD-X08-A1
19‘‘ distribution panel 1U, 8 sockets DIN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, Varistor surge protection /scheme in section technical support/, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

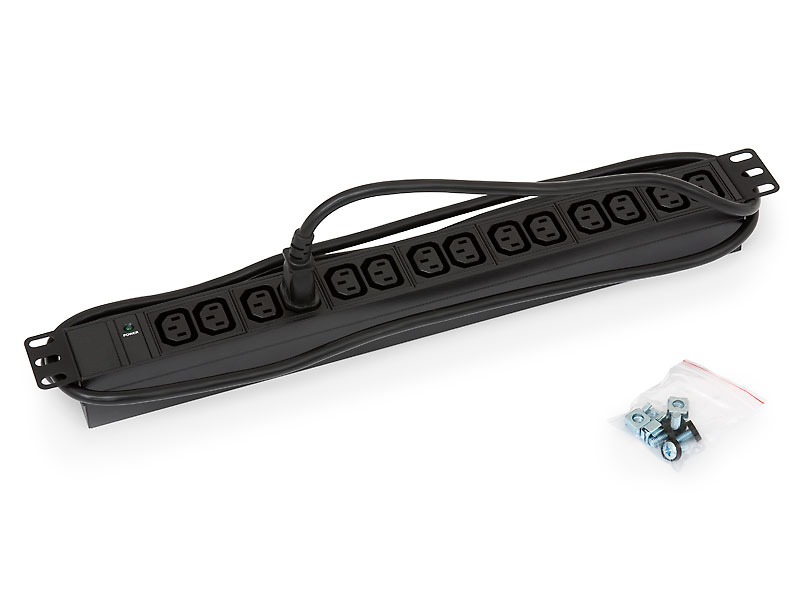

RAB-PD-X09-A1
19‘‘ distribution panel 1U, 14 sockets IEC320, max. 10 A, cable 3 x 1.5 mm x 2 m long, IEC320 C14 10 A plug, power indicator, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x
RAB-PD-X10-A1
19‘‘ distribution panel 1U, 14 sockets IEC320, max. 10 A, w/o cable, IEC320 C14 input, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

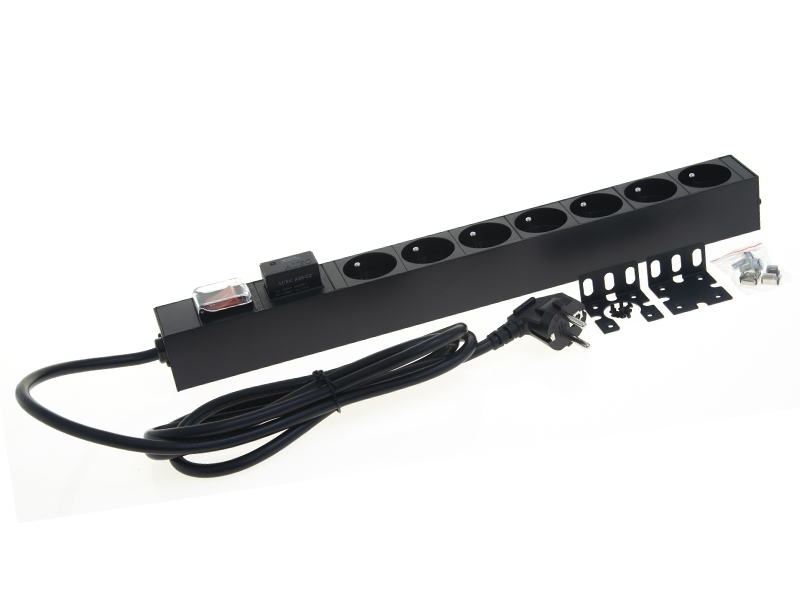

RAB-PD-X11-A1
19“ distribution panel 1U, 7 sockets ČSN standard, max. 16 A switch, surge protection, cable 3 x 1.5 mm x 2 m, DIN49441 16A plug, FLEX, lighted master switch with plastic cover, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

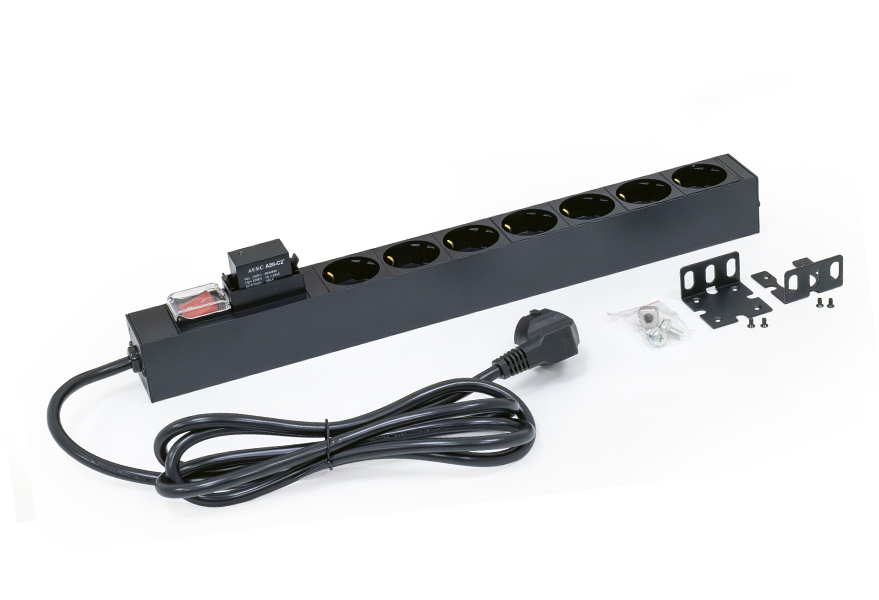

RAB-PD-X12-A1
19“ distribution panel 1U, 7 sockets DIN standard, max. 16 A switch, surge protection, cable 3 x 1,5 mm x 2 m, DIN49441 16 A plug, FLEX, lighted master switch with a plastic cover, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

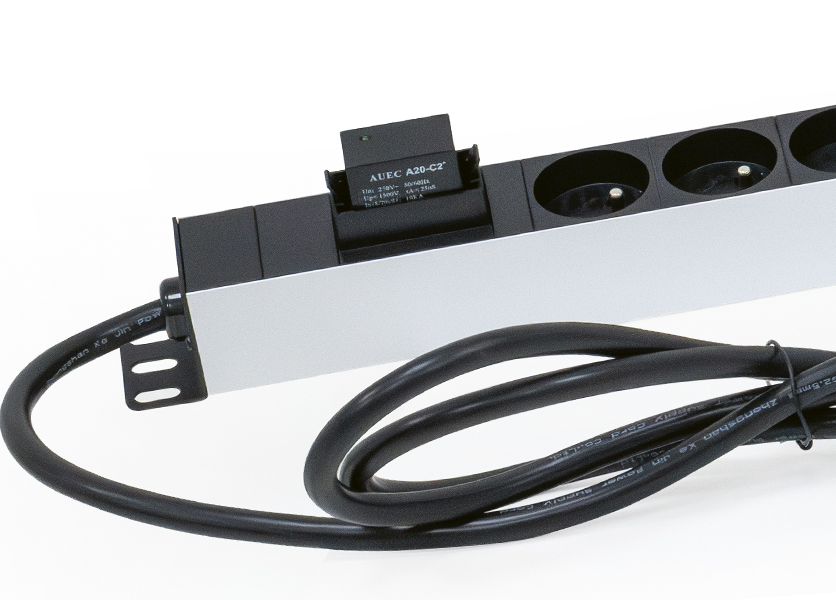

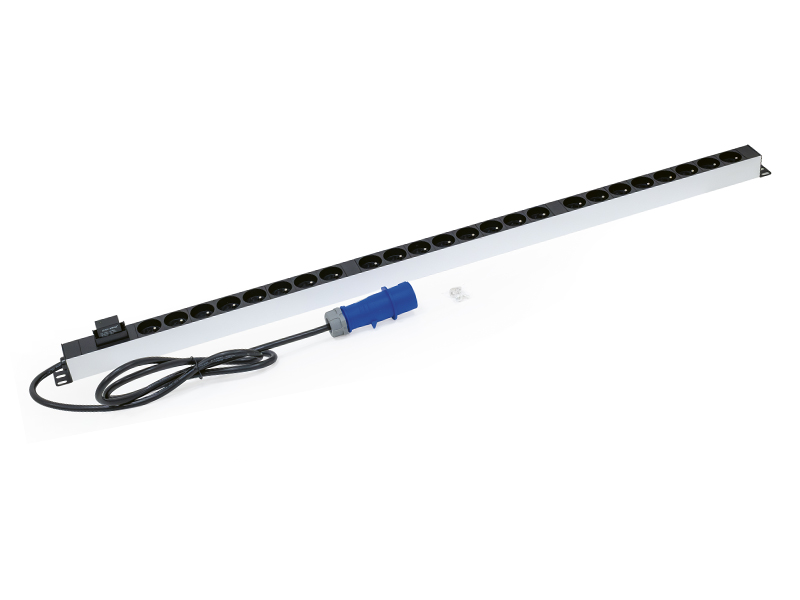

RAB-PD-X51-X1
Vertical distribution panel, 24 sockets ČSN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, IEC60309 plug, surge protection, Varistor surge protection /scheme in section technical support/, height 1273,5 mm, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

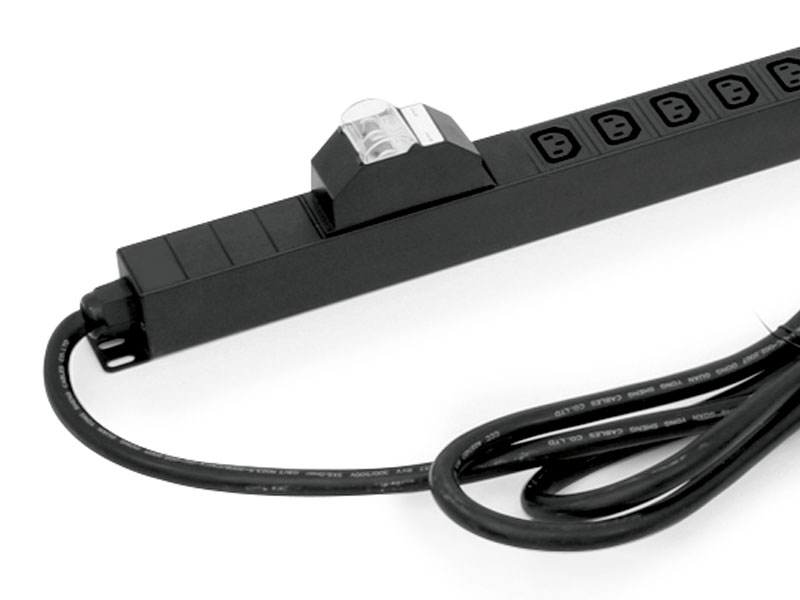

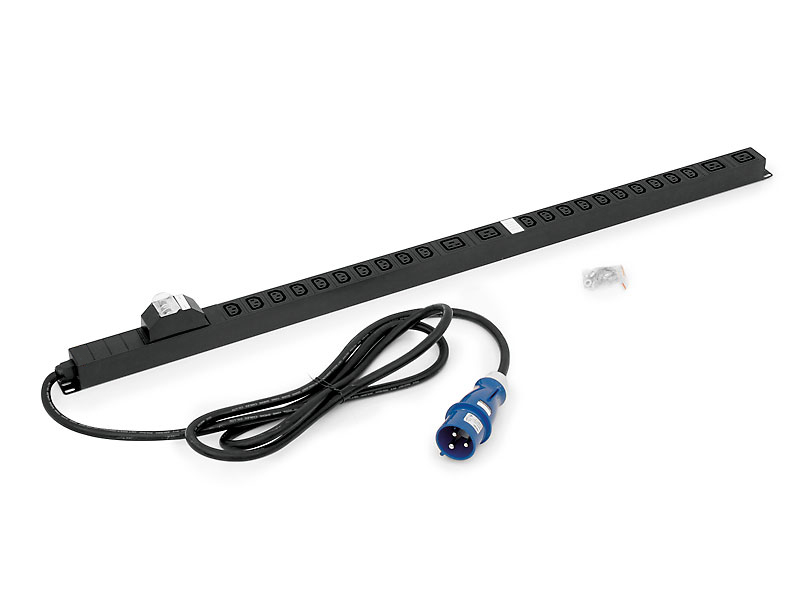

RAB-PD-X52-X1
Vertical distribution panel, 20 sockets IEC320 C13, 4 sockets IEC320 C 19. 2 x 16 A master air circuit breaker, max. 32 A, cable 3 x 6.0 mm x 3 m long, IEC60309 plug, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

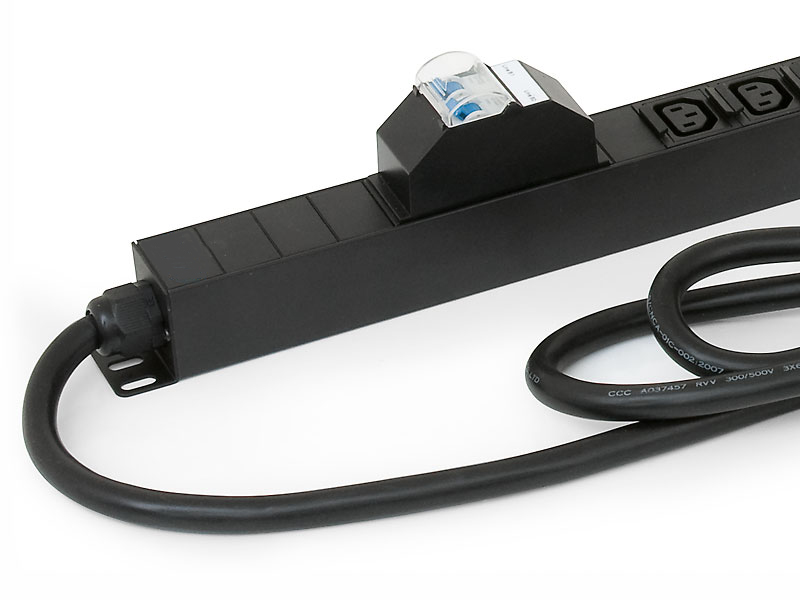

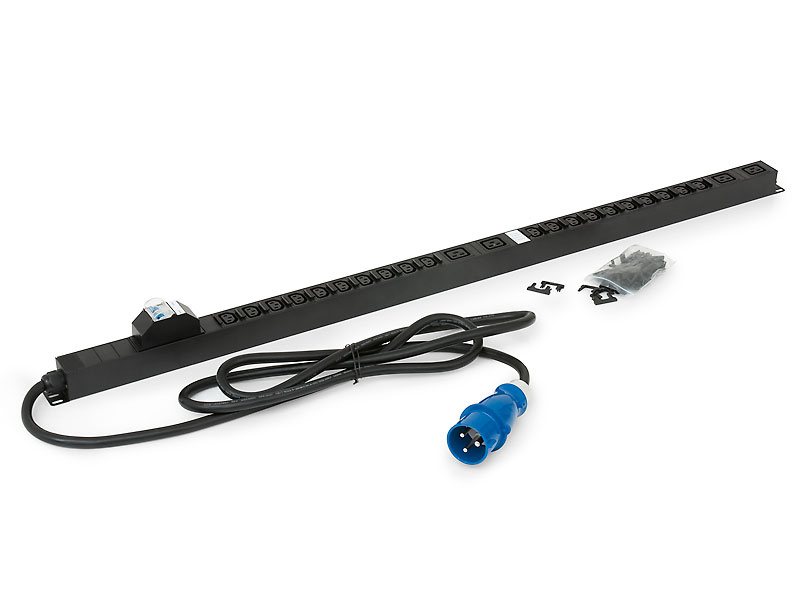

RAB-PD-X53-X1
Vertical distribution panel, 20 sockets IEC320 C13 (anti-fall), 4 sockets IEC320 C 19. 2 x 16 A master air circuit breaker, max. 32A, cable 3 x 6.0 mm x 3 m long, IEC60309 plug, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x
RAB-PD-X90-C1
10‘‘ distribution panel, 4 sockets ČSN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x
RAB-PD-X91-C1
10‘‘ distribution panel, 4 sockets DIN standard, max. 16 A, cable 3 x 1.5 mm x 2 m long, DIN49441 16 A plug, indicator light, RAL 9005
Supply
- Screw M6 x 16 with washer ………………… 2x
- Captive nut M6 …………………………………. 2x

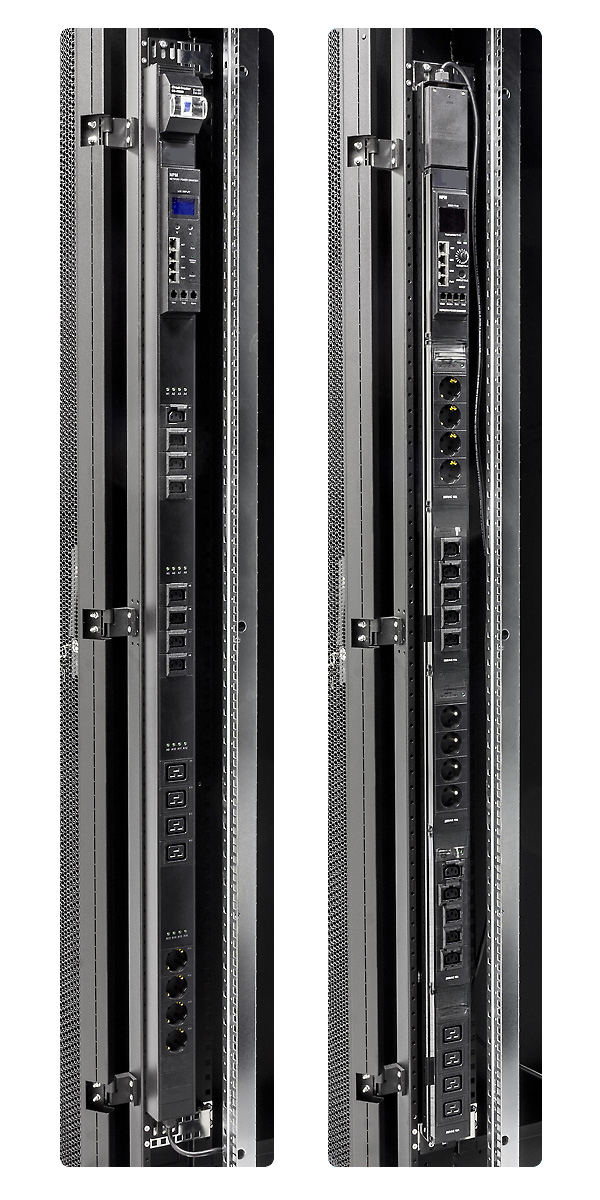

Intelligent power distribution panels
The configuration of sockets, inputs and management level is always carried out according to the customer’s requirements.
Please, contact your business partner for more information.
These distribution panels are designed for installation into the frame of RDA cabinets.
Depending on the type of management, it is possible to measure and monitor basic electrical values, eventually temperature, humidity etc.
The superior versions of these distribution panels allow, for example, chaining through a serial interface and switching of individual socket. The standard option is the possibility of communication through the IP protocol, SNMP, web interface and the possibility of integration of monitoring system.

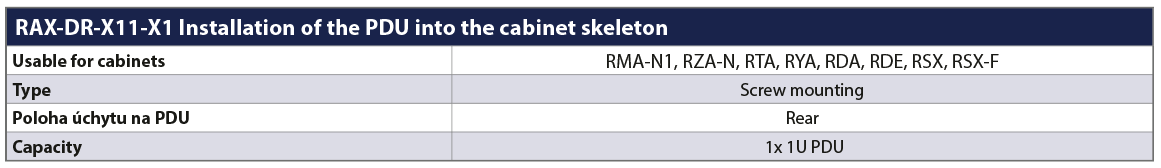

RAX-DR-X11-X1
Holder of PDU 1U (pair). The holders are designed for RTA, RDA cabinets only.

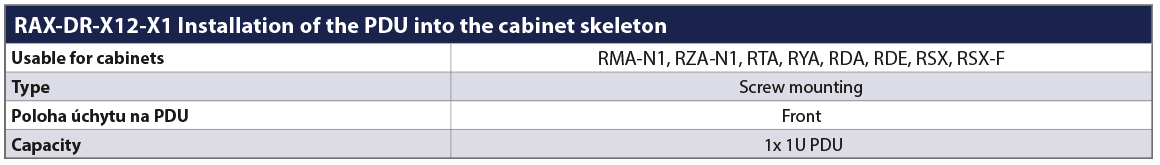

RAX-DR-X12-X1
Holder of PDU 2U (pair). The holders are designed for RDA, RTA, RYA, RDE,RSX, RSX-F cabinets only.

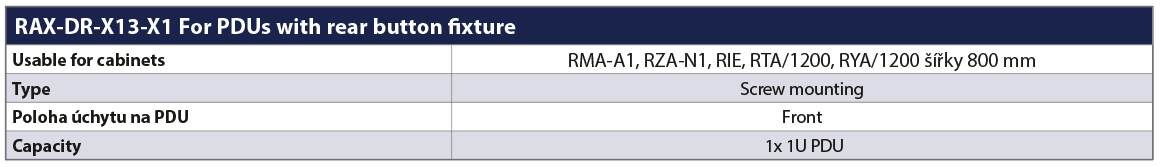

RAX-DR-X13-X1
Holder of PDU 1U (pair). The holders are designed for cabinets of width 800 mm – RMA, RZA.

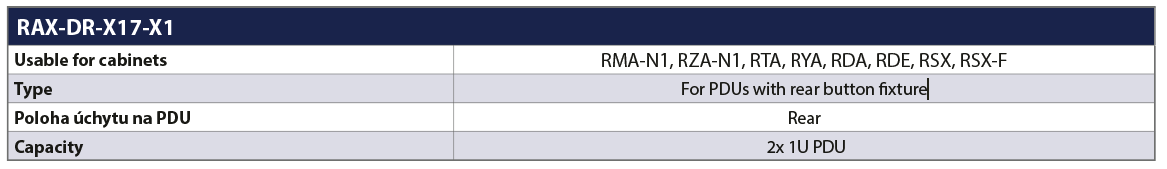

RAX-DR-X17-X1
PDU with button style mounting holder 2U for cabinet skeleton (pair). For cabinets RTA, RYA, RDA, RDE, RSX, RSX-F.
