Shelves

Information

RAB-UP-xxx-A1, RAC-UP-xxx-A1

Shelf with perforations 1U

Supply
Screw M6 x 10 (dimensions 150 and 250 mm – 4x) ……………….. 8x
Plastic washer (dimensions 150 and 250 mm – 4x) ………………… 8x
Captive nut M6 (dimensions 150 and 250 mm – 4x) ……………….. 8x
Screw M5 x 12 Thorx (only dimensions 350 mm and larger) ….. 4x
Back holder (only dimensions 350 mm and larger) ………………… 2x

RAB-UP-xxx-H4, RAC-UP-xxx-H4

19“ Heavy duty shelf

Supply

  • Screw M6 x 10. ………………………………… 8x
  • Plastic washer …………………………………. 8x
  • Captive nut M6 ………………………………… 8x
  • Screw M5 x 12 Thorx ……………………….. 8x

RAB-UP-xxx-A4, RAC-UP-xxx-A4

19“ Shelf with perforations 1U.
Patent: PUV 2012-25430.

Supply
Screw M6 x 10 (dimensions 150 and 250 mm – 4x) ………………….. 8x
Plastic washer (dimensions 150 and 250 mm – 4x) ………………….. 8x
Captive nut M6 (dimensions 150 and 250 mm – 4x) ………………… 8x
Screw M5 x 12 Thorx (dimensions 150 and 250 mm – 4x) ………… 8x
Back holder (dimensions 150 and 250 mm – 2x) ……………………… 4x

RAB-UP-Xxx-A1, RAC-UP-Xxx-A1

19“ sliding shelf – height 45 mm

Supply

  • Screw M6 x 10 ……………………………… 8x
  • Plastic washer ……………………………… 8x
  • Captive nut M6 …………………………….. 8x

RAB-UP-X09-A1, RAC-UP-X09-A1

19“ Drop-down shelf for keyboard, maximum loading capacity 15 kg.

Supply

  • Screw M6 x 10 ………………………………. 4x
  • Plastic washer ………………………………. 4x
  • Captive nut M6 ……………………………… 4x

RAB-UP-X29-A1, RAC-UP-X29-A1

19“ Sliding lockable shelf 2U for keyboard and mouse

Supply

  • Screw M6 x 10 ………………………………. 8x
  • Plastic washer ………………………………. 8x
  • Captive nut M6 …………………………….. 8x

RAB-UP-X40-A1, RAC-UP-X40-A1

19“ sliding / rotary shelf for keyboard and mouse. The height of the shelf is 60 mm

Supply

  • Screw M6 x 10 ………………………………… 8x
  • Plastic washer ………………………………… 8x
  • Captive nut M6 ……………………………….. 8x

RAX-DR-X01-X1

Rear holder of shelves for RBA wall mounted cabinets – a pair.

RAX-DR-X02-X1

Shelf holders for middle vertical rail of free-standing cabinets deeper than 800 mm – a pair.

RAX-DR-X03-X1

Holder for middle rail (pair), allows installation of standard 19“ equipment – a pair.

Supply

  • Screw M6 x 10 ………………………………….. 8x
  • Plastic washer ………………………………….. 8x
  • Captive nut M6 ………………………………… 8x

RAX-RV-X01-X2

Adapter 23“/21“ and 21“/19“ universal
for 1U – a pair.

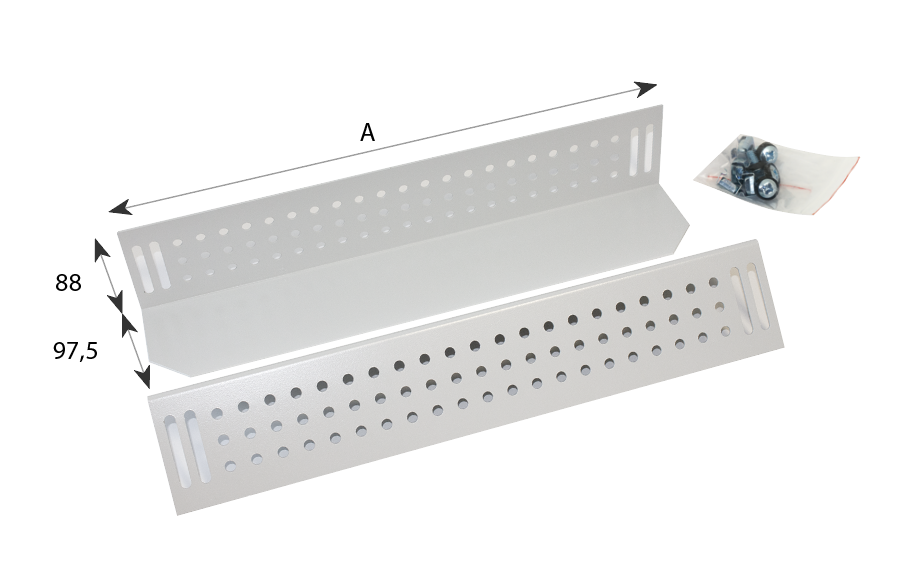

RAB-NL-X0x-X1, RAC-NL-X0x-X1

Pair of mounting angles. The load capacity of one pair of skis is 100 kg.

Supply

  • Screw M6 x 10 ………………………………….. 4x
  • Plastic washer ………………………………….. 4x
  • Captive nut M6 ………………………………… 4x

Datasheet

Declaration of conformity

RAX-UP-150-A1 RAx-UP-250-A1 RAx-UP-350-A1 RAx-UP-450-A1 RAx-UP-550-A1 RAx-UP-650-A1 RAX-UP-750-A1 RAx-UP-850-A1 RAX-UP-950-A1 RAX-UP-450-H4 RAx-UP-550-H4 RAx-UP-650-H4 RAx-UP-750-H4 RAX-UP-850-H4 RAx-UP-950-H4 RAx-UP-150-A4 RAX-UP-250-A4 RAx-UP-350-A4 RAX-UP-450-A4 RAX-UP-550-A4 RAx-UP-650-A4 RAX-UP-750-A4 RAx-UP-850-A4 RAx-UP-950-A4 RAx-UP-X29-A1 RAx-UP-X30-A1 RAx-UP-x31-A1 RAXx-UP-x20-A1 RAx-UP-X19-41 RAx-UP-X40-A1 RAx-NL-X01-X1 RAx-NL-X05-X1 RAx-NL-X02-X1 RAx-NL-X03-X1 RAx-NL-X04-X1 RAx-NL-X07-X1 RAx-NL-X06-X1
