TRITON

Vertical cable management system

Information

RAB-VP-Hxx-Y1

Cable management vertical panel  – comb, single row, RAL 9005.

RAB-VP-Hxx-X1

Cable management vertical panel  – comb, double row, RAL 9005.

RAB-VP-Oxx-X1

Swing, removable cover for cable management vertical panel RAB-VP-Hxx-X1.

RAX-VP-Vxx-X2

Vertical cable organizing rail for RDA cabinets. Suitable for widths of 600 and 800 mm.

RAX-VC-Xxx-X2 – one piece
RAX-VC-Xxx-X1 – set of 4 pieces

Vertical cable canal 15-47U for RMA and RZA with a width of 800 mm and for open frames RSX. C-shape with additional 19″ installation openings 1U. It is made of 1,5 mm thick galvanized steel and is designed for installations on vertical rails to the cabinet side panel area. On the front side, there are additional 19“ installation openings 1U high which increase the overall capacity of the cabinet.

Supply (per piece)
Screw M5 with integrade washer ………………… 3x
Enlarged washer 5,3 ……………………………………. 7x
Nut beneath vertical rail ……………………………… 1x
Screw M5 x 12 …………………………………………….. 4x

RAX-VP-Xxx-X2 – one piece
RAX-VP-Xxx-X1 – set of 4 pieces

Vertical cable canal 15-45U for RMA and RZA with a width of  800 mm for open frames RSX.
It is made of 1,5 mm thick galvanized steel and is designed for installations on vertical rails to the cabinet side panel area.
Cable management rings can be installed on the cable canal for a better organisation of cables. They are not included in the supply.

Supply (per piece)
Screw M5 with integrade washer ………………… 3x
Enlarged washer 5,3 ……………………………………. 7x
Nut beneath vertical rail ……………………………… 1x
Screw M5 x 12 …………………………………………….. 4x

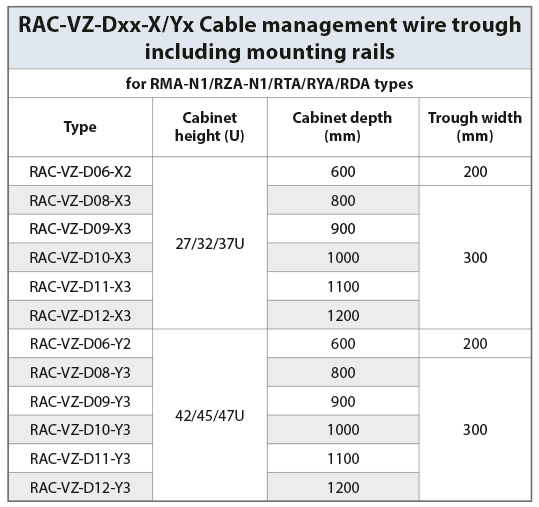

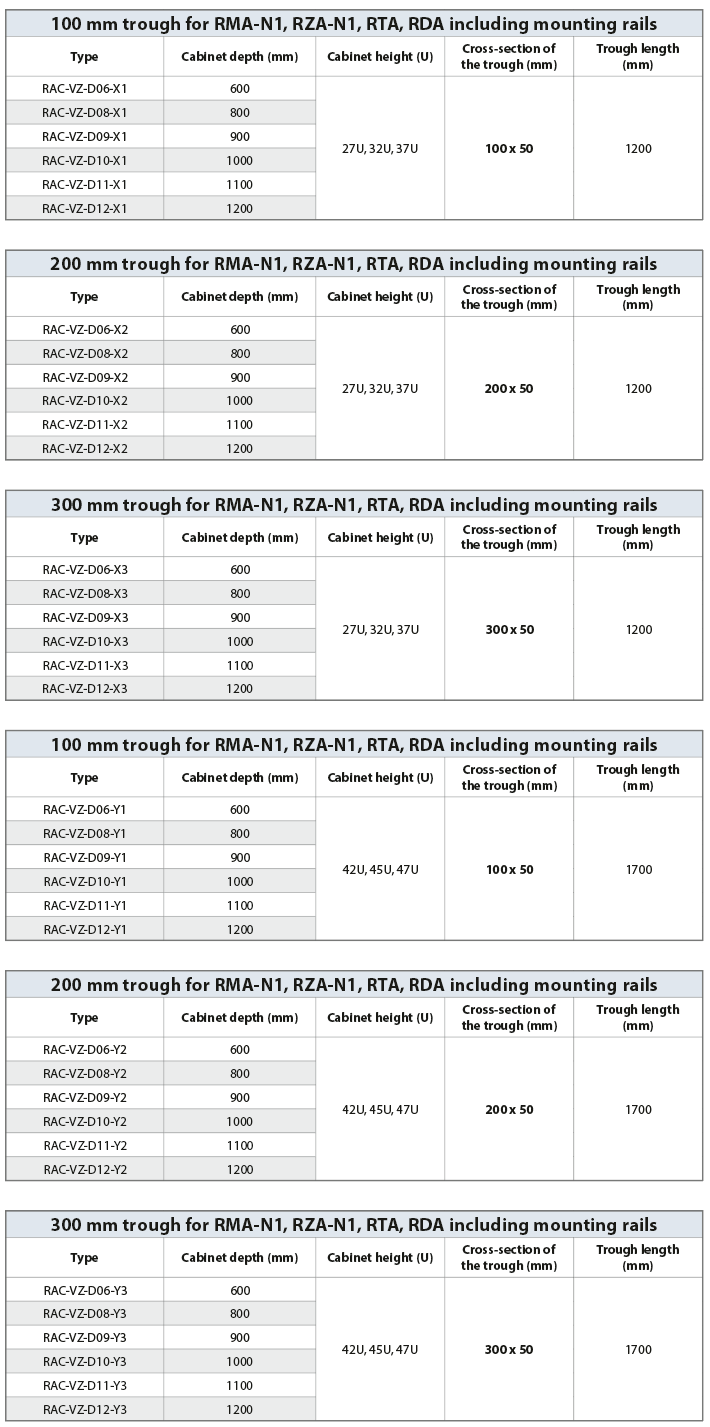

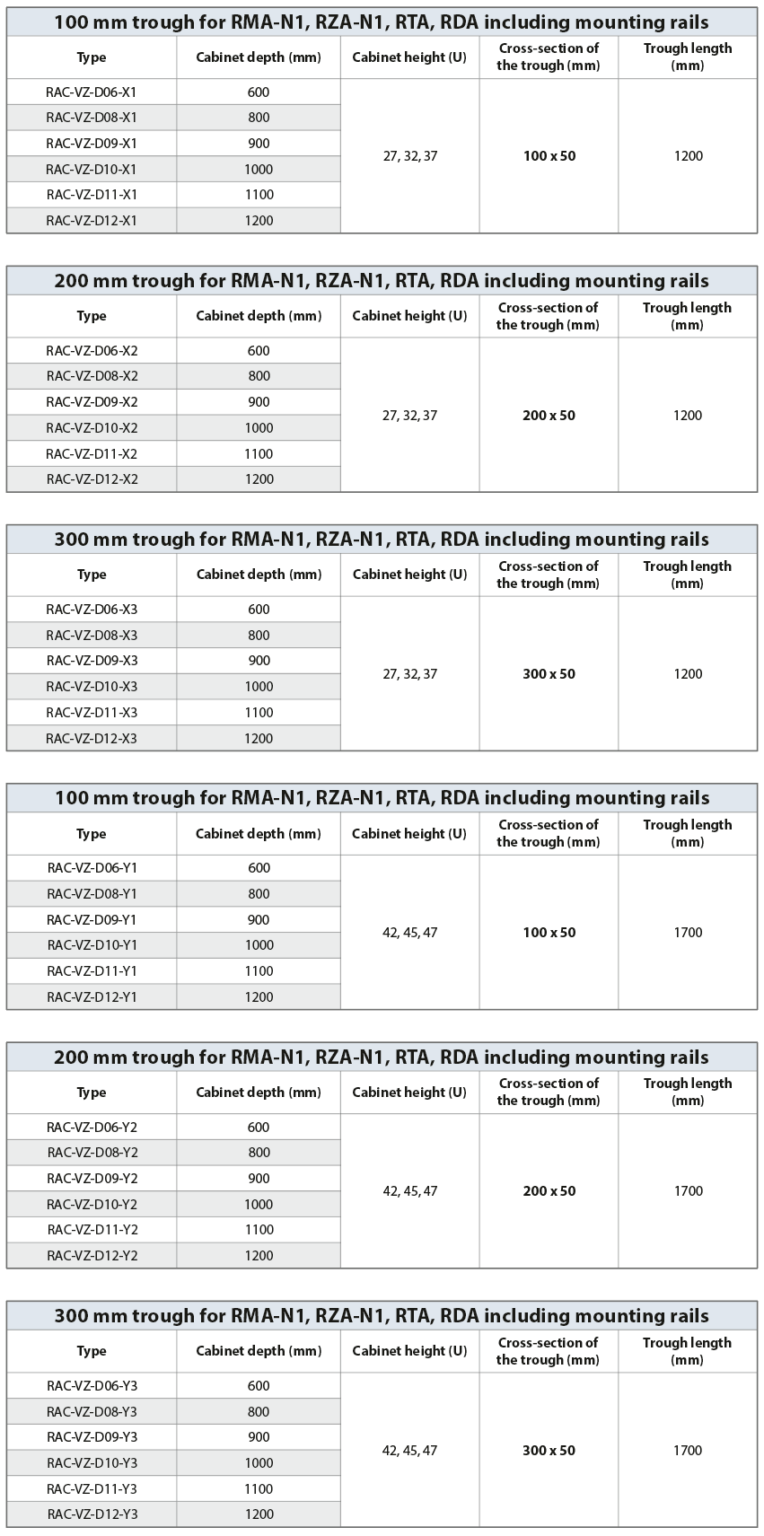

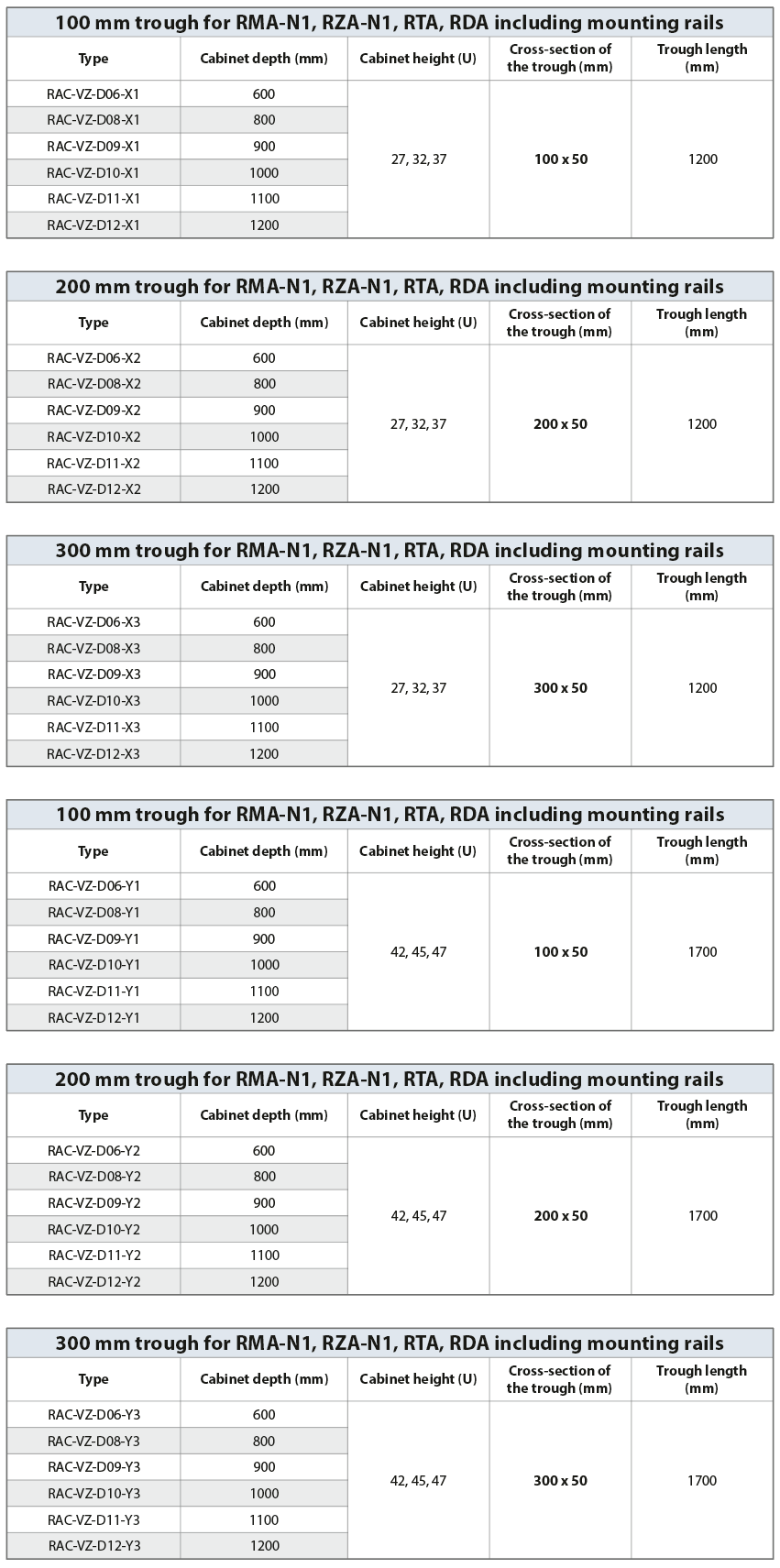

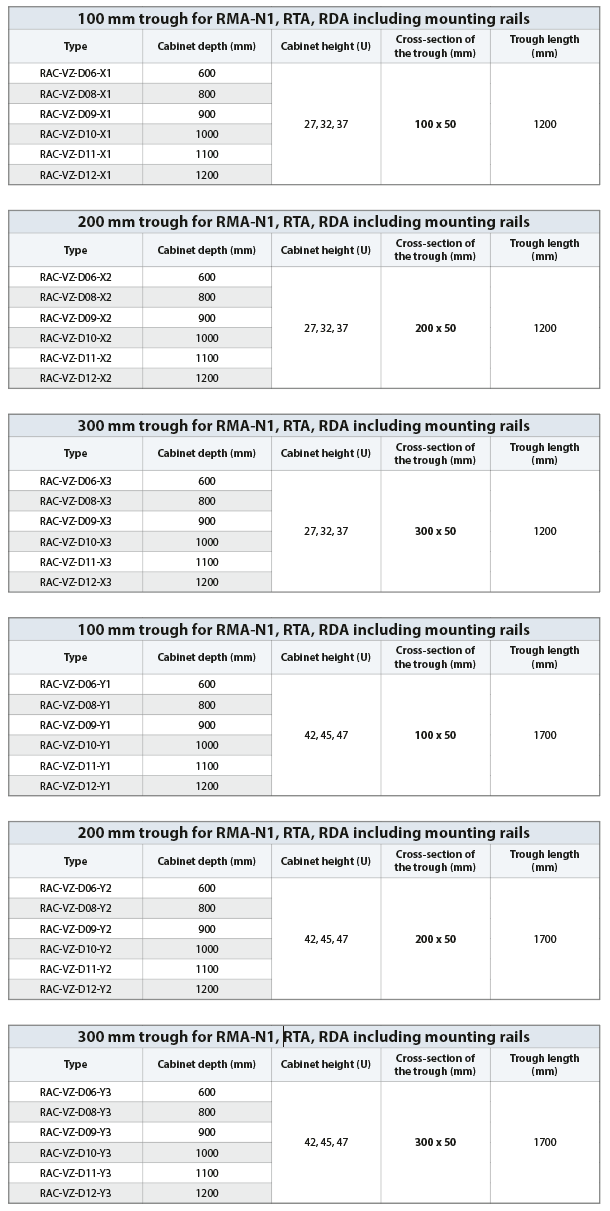

RAC-VZ-Dxx-X/Y

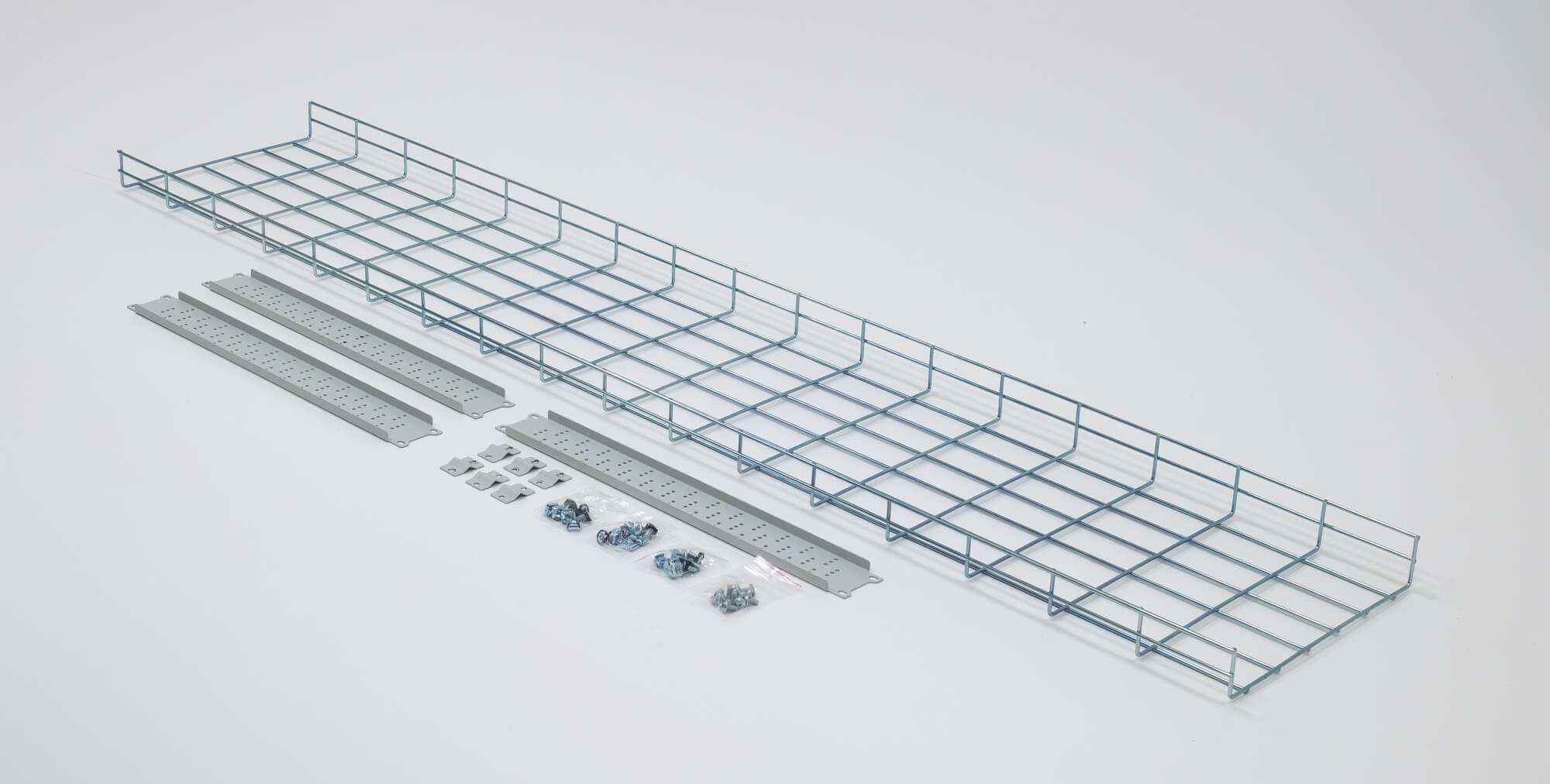

Cable management wire trough including mounting rails.

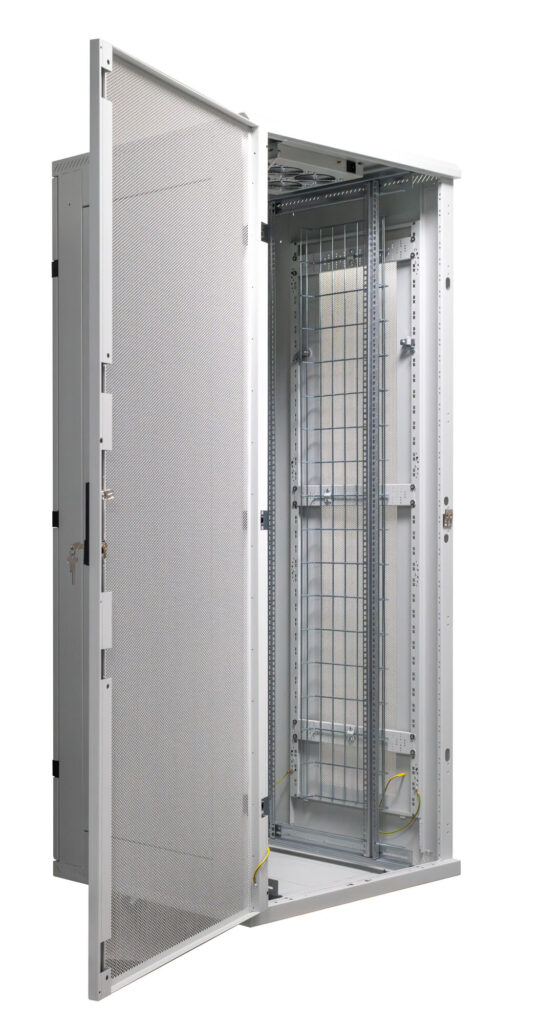

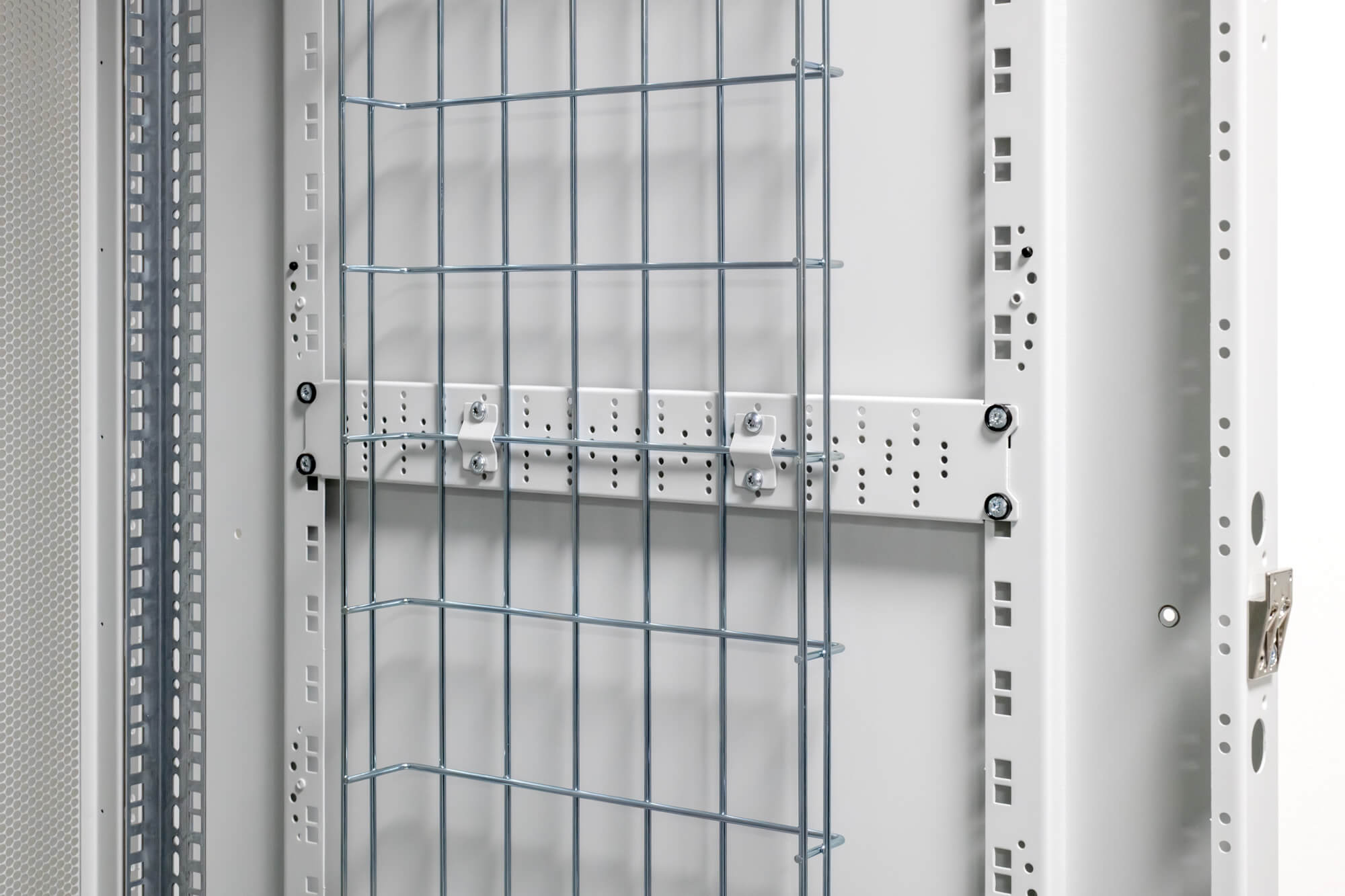

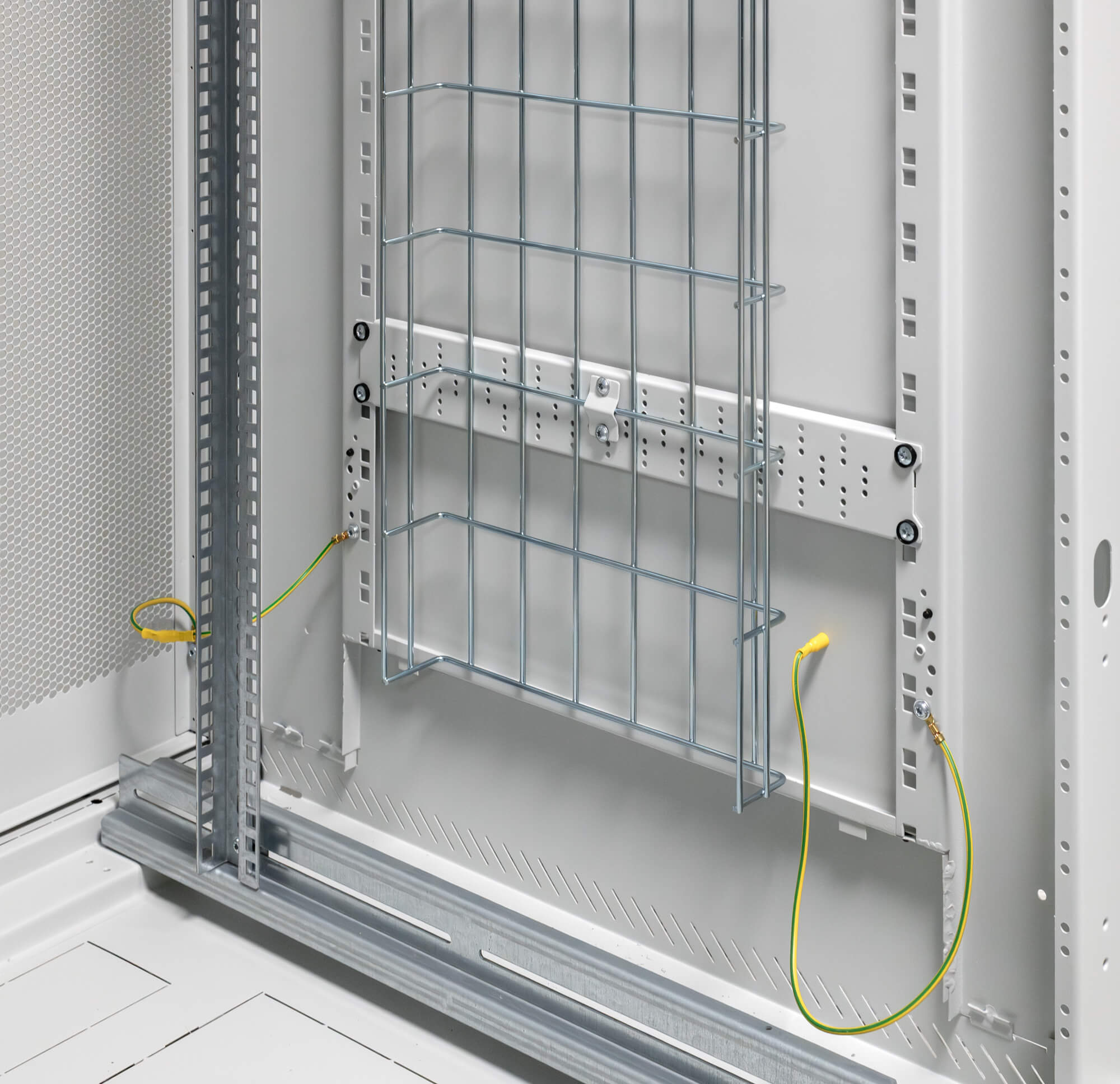

Vertical cable management wire trough including mounting rails for RMA-N1/RZA-N1/RTA/RYA/RDA free-standing cabinets in width of 800 mm. The wire troughs with a cross-section of 100/200/300×50 mm are designed for this purpose, the surface is galvanized. Trough lengths are 1200 mm for cabinet heights 27/32/37U and 1700 mm for cabinet heights 42/45/47U. The mounting profiles and brackets for fixing the wire trough are made of 1.3 mm thick steel sheet with a powder-coated finish. The set is designed for mounting on the depth of the cabinet, between the front and rear skeleton rail, in the area of the side cover. This makes efficient use of the space between 19“ rails and cabinet side walls.

Included (for each piece) according to type Xx/Yx

Screw M5 x 12 with integrated corrugated washer… 8/12x
Screw M6 x 12…………………. ……………………………………. 8/12x
Plastic washer ……………………………………………………….. 8/12x
Captive nut M6……………………………………………………….. 8/12x

RAC-VZ-D09-X3
RAB-VPH10-Y1 RAB-VP-H15-Y1 RAB-VP-H18-Y1 RAB-VP-H22-Y1 RAB-VP-H27-Y1 RAB VP-H32-Y1 RAB VP H37.Y1 RAB-VP H42-Y1 RAB-VP-H45-Y1 RAB-VP-H47-Y1 RAB-VP-H10-X1 RAB-VP-H15-X1 RAB-VP-H18-x1 FAB-VP-H22-X1 RAB-VP-HZ7-X1 RAB-VP-H32-X1 RAB-VP-H37-x1 RAB-VP-H42-X1 RAB-VP-H45-X1 RAB-VP-H47-X1 RAX VP.V37-x2 RAX VP V42 X2 RAX VP V45-X2 RAX-VP-V47-X2 RAX-VC-X15-Xx RAX-VC-X18-Xx RAX-VC-x22-Xx RAX VC X27 Xx RAX VC X32 Xx RAX-VC-X37-Xx RAX-VC-X42-Xx RAX-VC X45-Xx RAX-VC-X47-Xx RAX-VP-X15-X1 RAX-VP-X18-X1 RAX-VP-X22-X1 RAX-VP-XZ7-X1 RAX-VP-X32-X1 RAX-VP-X37-X1 RAX-VP-X42-X1 RAX-VP-x45-X1
