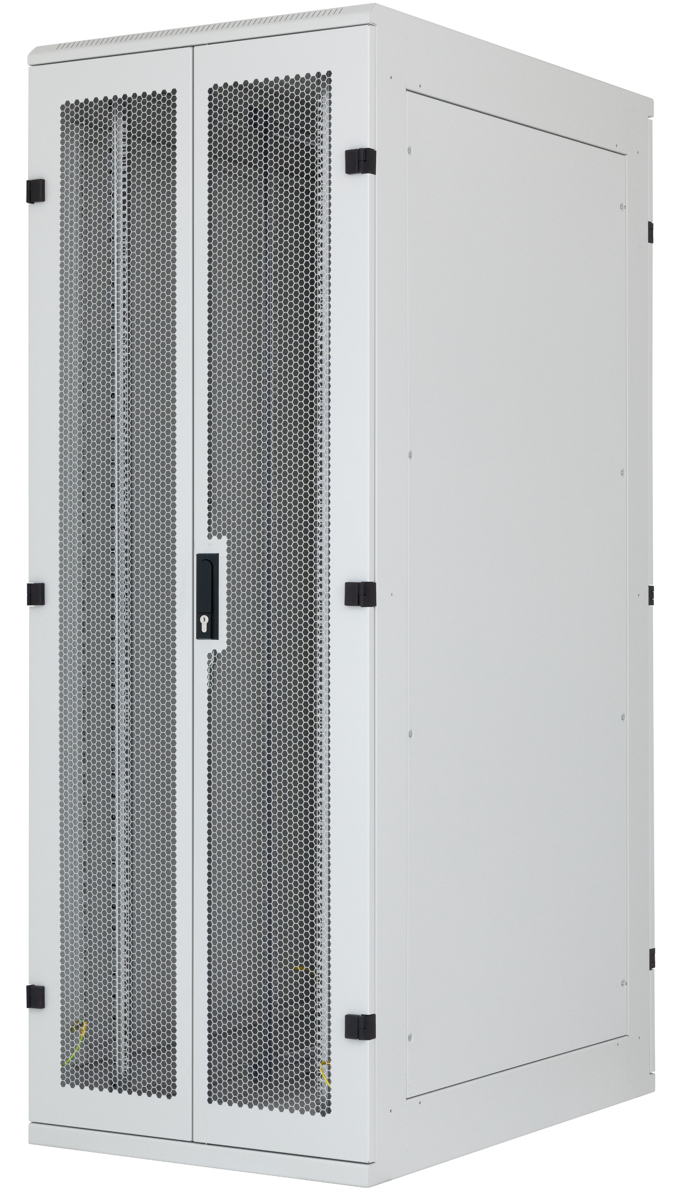

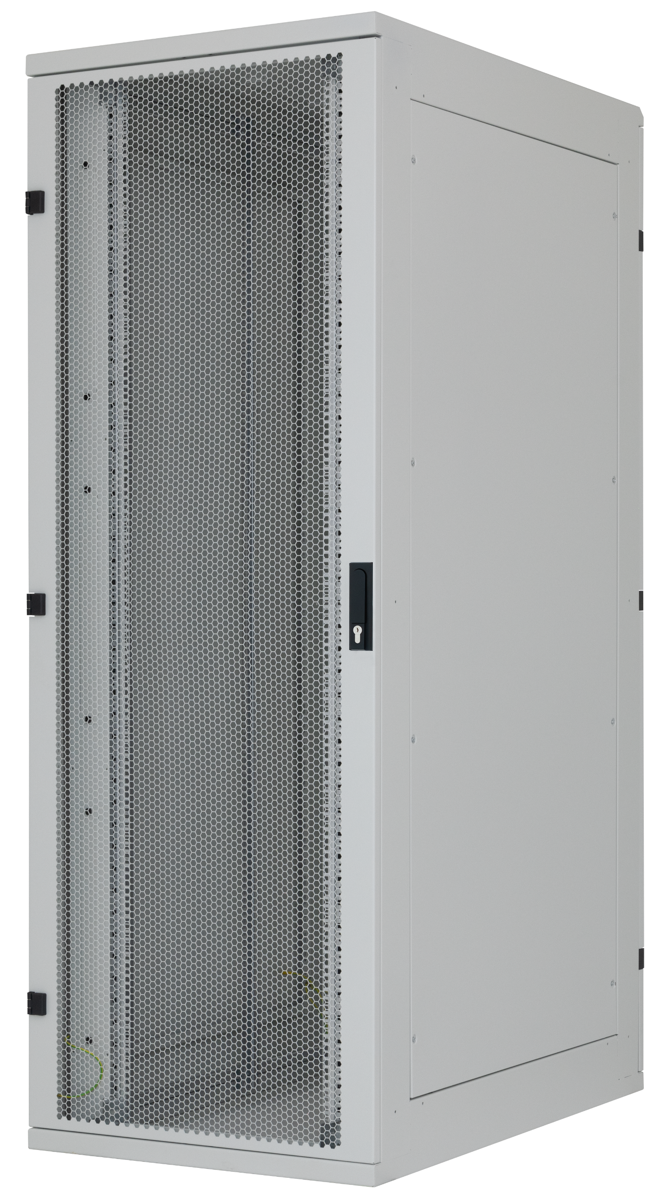

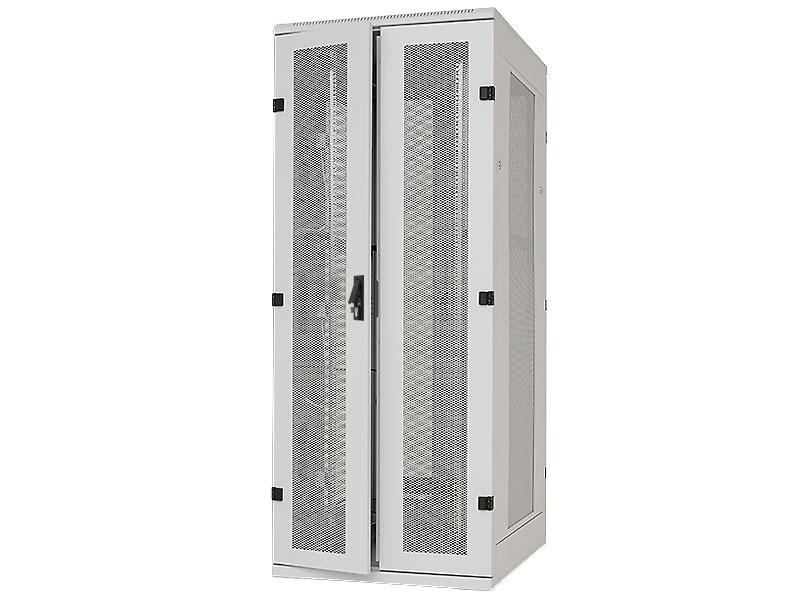

Free-standing cabinet RDA
Heavy-duty cabinet, IP20, capacity 1800 kg
Information
A universal cabinet for data and telecommunication purposes. High capacity for demanding applications, a large selection of sizes and options together with a wide selection of accessories and excellent development make it the best-selling cabinet in our range.
Rigid construction
The RDA has a robust welded construction that is made completely of 2 mm thick material. High quality workmanship and the latest technology ensure excellent look of the cabinet.

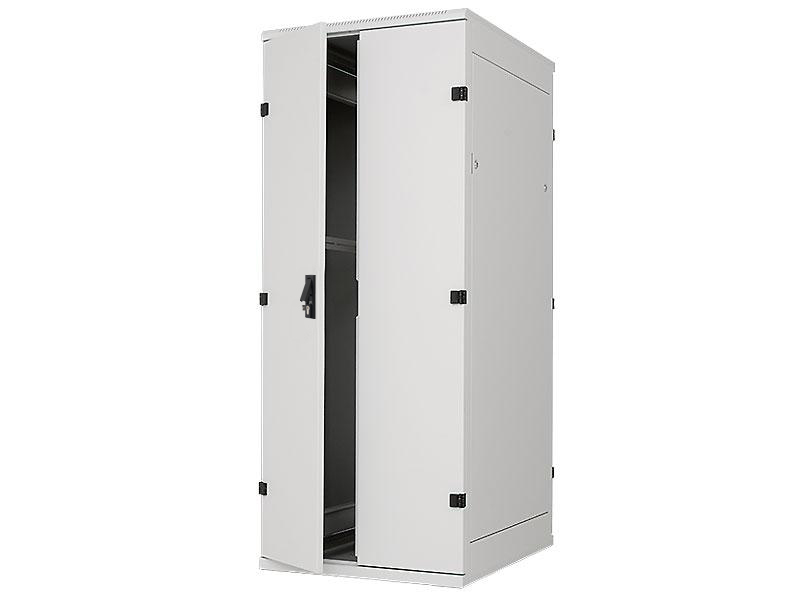

Flexible door opening
The hinge system allows the door to open 165°. The door can be easily removed and re-mounted to change the direction of opening. The double wing doors are equipped with hook-on hinges.

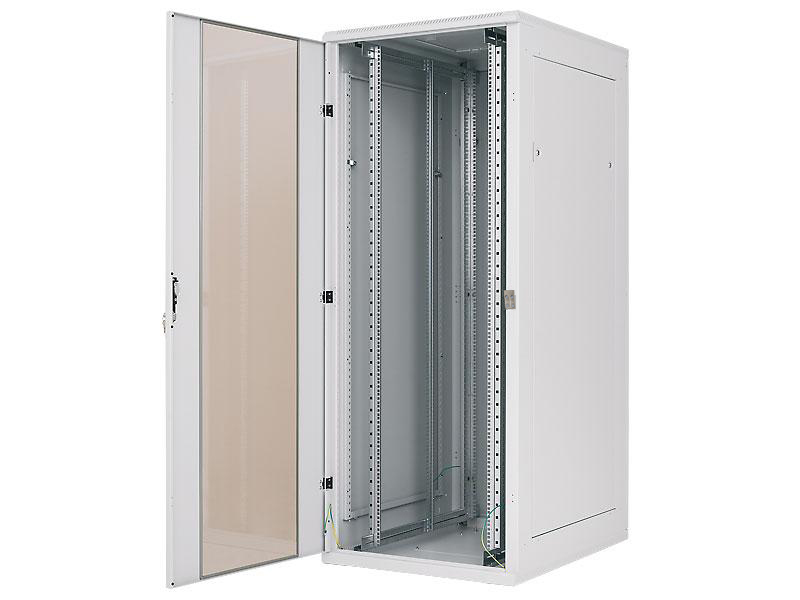

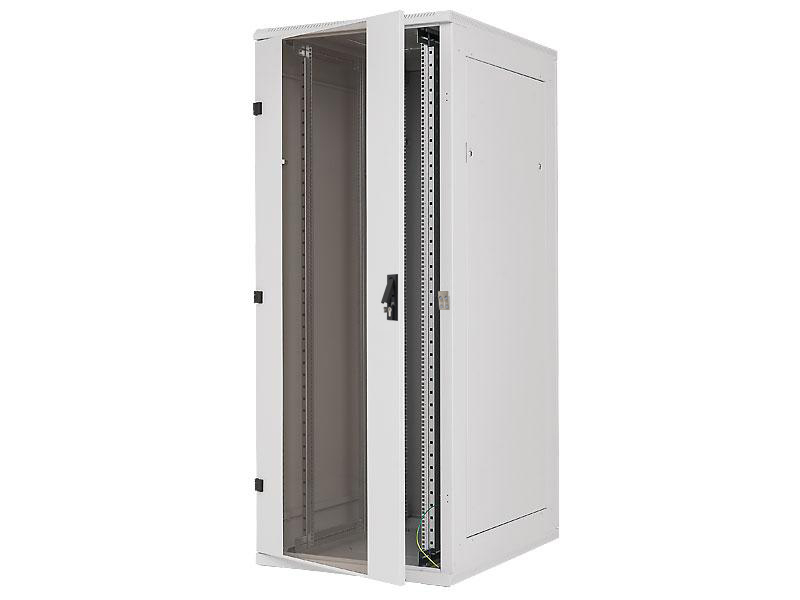

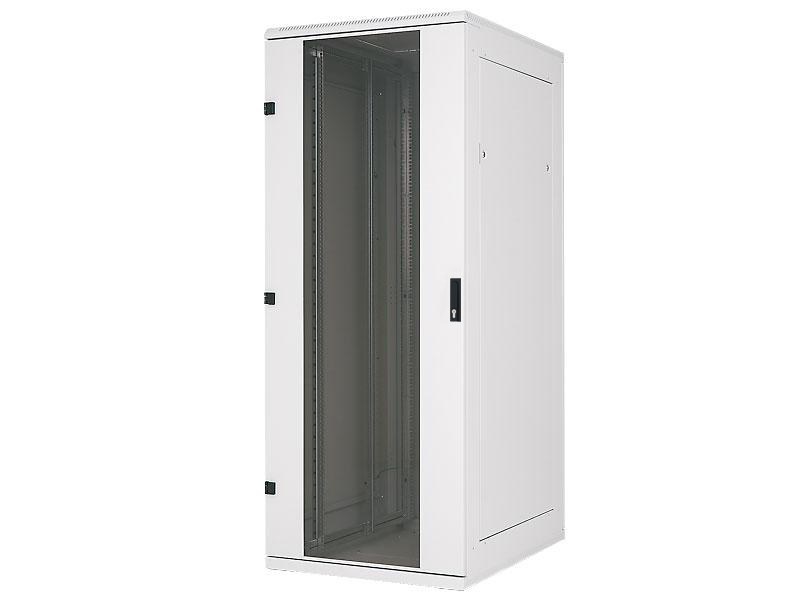

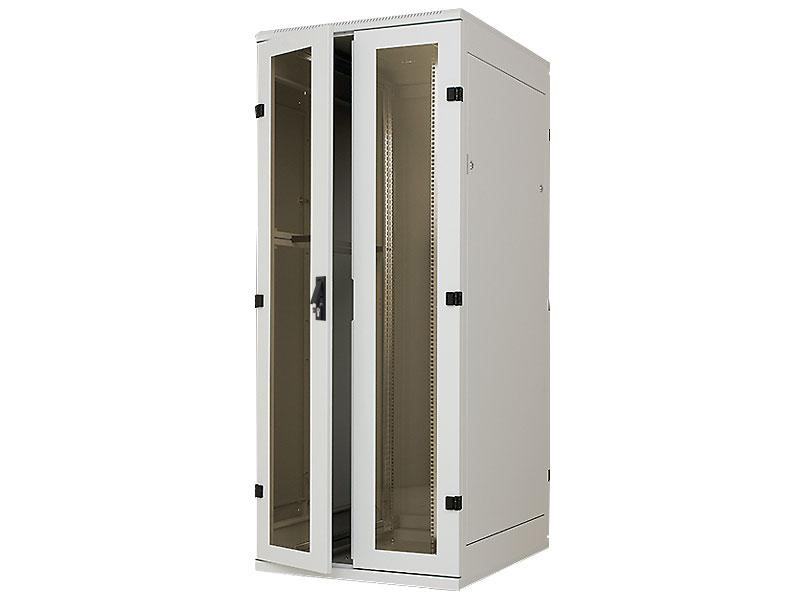

Glass
The metal doors with glued glass are made of 4 mm thick tempered safety glass, which is resistant to common impacts. When broken, it forms a number of small fragments like automotive glass. For safety reasons, we recommend closing the door after installing the equipment in the cabinet to prevent collision with other objects. Used glass is tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.
Tritón handles
We manufacture our own handles for the free-standing cabinets. By replacing the plastic module (not included), a half-cylindrical lock insert can be fitted. Patent: PUV 2013-27443

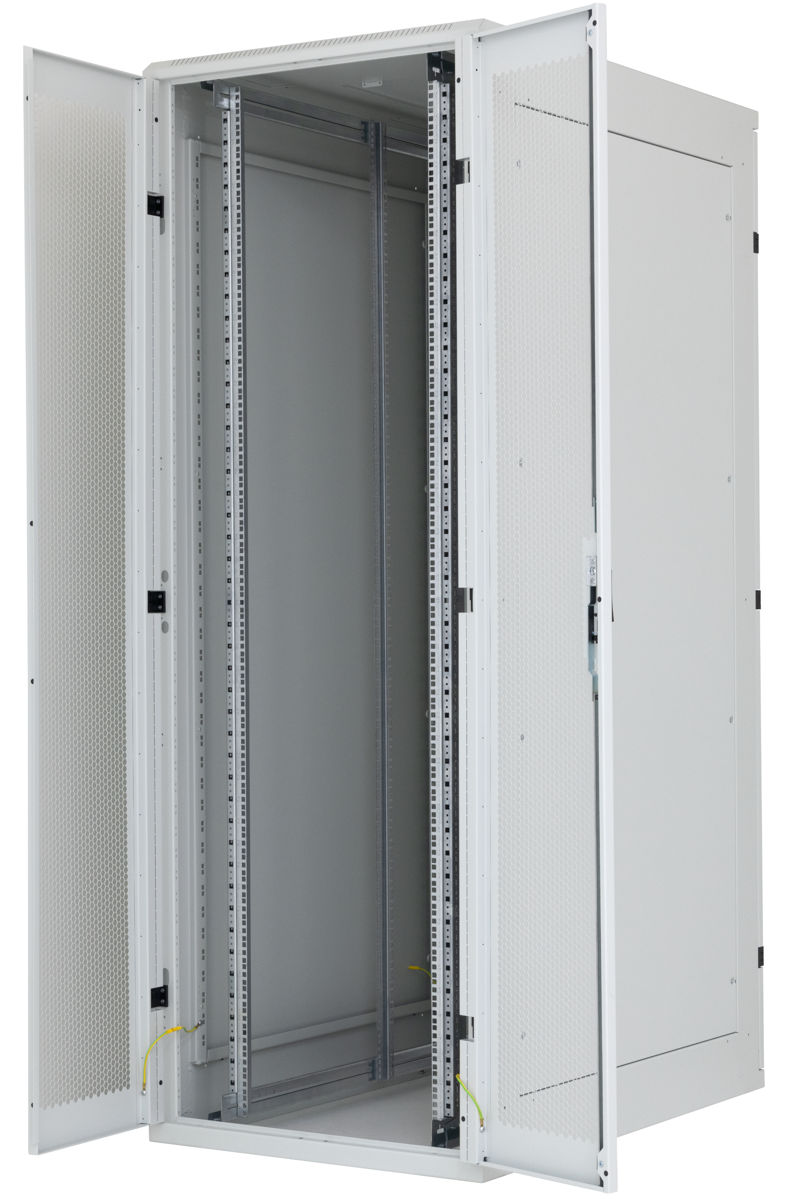

Adjustable vertical rails
Reinforced 19” vertical rails for higher load capacity can be infinitely adjusted at any depth of the cabinet. This simplifies mounting of the devices and the organisation of the patch cables.
Removable side panels and rear cover
The RDA is a cabinet with a welded skeleton, removable side panels and rear cover. Panels are attached to the skeleton by locks, as standard with a uniform key (variants A1 and A5). Variants A3 and A7 has panels secured by safety recessed screws.

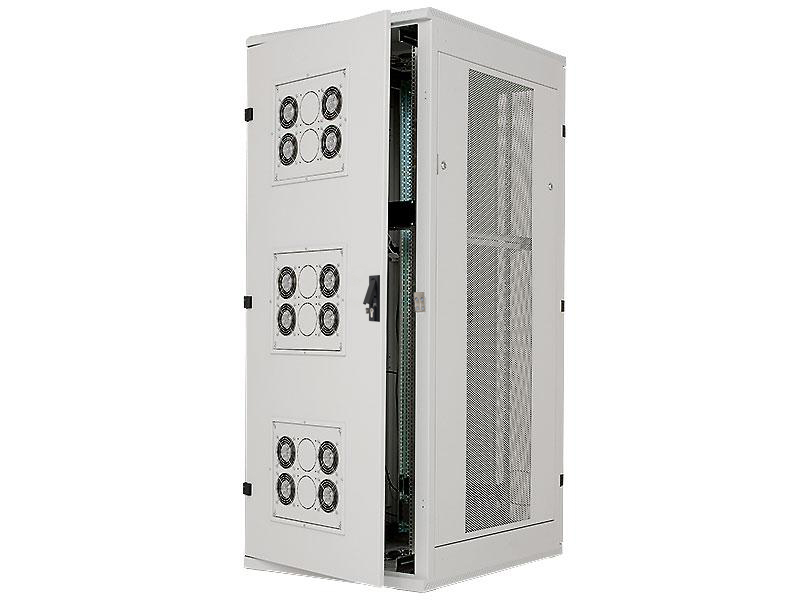

Door for fan units
With this cabinet type, it is possible to order a special metal door ready for mounting RAx-CH-X0x-X3 fan units. Further information is available in the section Active cooling.
Break-out blanking panels
The cable entries of the cabinet are covered with break-out covers (variant A1 and A5). In the case of A3 and A7, the covers are screwed on. The cables in the opening can be sealed against the ingress of dust with a brush. To protect the cables from damage, a fringe edge is used (both supplied with the cabinet).
Opening for a fan unit
A large opening covered with a click-in blanking panel enables mounting and removal of the Tritón fan unit from the outside of the cabinet without the need of using screws.
Castors, levelling feet, base
The cabinet can be placed on levelling feet (included) or, with optional equipment, on a base, castors or heavy-duty castors with reinforcing frame.
Rear side of the cabinet
There are two cable entries on the rear wall of the cabinet covered with breakout panels. One is at the top and the other at the bottom edge of the cover. The other cable entries are on the ceiling and in the base of the cabinet.
Perforation of the skeleton
The RDA cabinets have a perforated skeleton to provide cooling air access to the installed technology. Cooling can be supported by the installation of fan units.
Bonding
All detachable parts are bonded together according to the requirements of the relevant standard.
Flex frame
(valid for 800 mm wide cabinets) The system allows the installation of sliding rails in 19”, 21” and 23” spans. Another option is to shift the 19” vertical rail spacing to one side to provide more space on the other side.
Middle pair of vertical rails
For enclosures deeper than 800 mm, a third pair of vertical rails for mounting the technology is supplied as standard. Thanks to their open profile, they do not restrict the installation of deeper equipment. Shorter devices can be mounted on the central vertical rail using different types of brackets (optional accessories).
Wide skeleton rails
The wide skeleton rails are designed for the additional installation of accessories, such as power distribution units or vertical cable management panels that do not occupy the 19” units inside cabinet. Thanks to the design, the power distribution panels do not limit the use of slide-out servers even in 600 mm wide cabinets.
Accessories in skeleton rails
The skeleton rails have mounting holes on the inner edges throughout their entire height. The holes are at the unit spacing of the vertical rails and can be can be used for mounting certain types of accessories.
Skeleton rails on A5 and A7 versions
The “A5” and “A7” versions (at the end of the cabinet code) have in skeleton rails the cable entries with break-out covers to allow patch cords to be routed between the adjacent cabinets.
Optional accessories
RAC-VP-D5x-X1
Horizontal cable management panel. Installation in the skeleton (rail) of the cabinet.
RAX-VP-Vxx-X2
Vertical cable management panel. Installation in the cabinet skeleton rail.
Power distribution units
Possibility of installing the PDU in the skeleton rails of the cabinet using a bracket (optional accessory).
Swing frame
All 800 mm wide RDA cabinets can be equipped with a swing frame with a load capacity of 150 kg. Maximum available depth of the 19“ equipment is 330 mm.
- 19“ free-standing cabinet with IP20 protection.
- Cabinet includes 4 adjustable vertical rails for device mounting (6 rails for cabinets deeper than 800 mm).
- Cabinet construction:
– welded steel frame with removable side panels,
– single or double doors in versions of solid metal, perforated (80 % and 86 % air permeability) or glazed with safety tempered glass 4 mm (they can be on the front or back of the cabinet),
– ready for installation of vertical cable management panels and power distribution units including mounting brackets into the skeleton of the cabinet,
– preparation for easy joining of cabinets into larger assemblies. - Max. permissible load of the door is 20 kg.
- Min. thickness of the surface finish is 65 µm.
- These cabinets are intended for installation data and telecommunication devices and their distribution systems.
- The frame of the cabinet and all the removable parts (side and rear covers, doors…) are bonded with flexible cables that have to be properly fixed and inserted into connectors throughout the period of use of the cabinet.
- There is one M8 screw placed on the bottom part of the cabinet as a central earthing point.
- Cable openings covered with screwed and sealed blanking panels are placed in the top and the bottom part of the cabinet.
- The “A5” and “A7” versions have in skeleton rails the cable entries with break-out covers to allow patch cords to be routed between the adjacent cabinets.
- The maximum recommended static load of the cabinet is 1800 kg using levelling feet or a base.
Operating conditions
- Operating environment:
– the indoor environment,
– the cabinet is not intended for outdoor installations and for installations in environment that can negatively influence the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings). - Must be protected against:
– mechanical damage,
– improper handling,
– a different usage than the cabinet is intended for. - Improper handling is especially:
– overloading (exceeding the maximum recommended load capacity),
– installation of equipment that adversely affects the operation and function of the cabinet or installed equipment,
– change of the construction or design of the cabinet. - When using the RAX-MS-X47-X1 castor set for direct mounting on the cabinet (the height of the cabinet is increased by 155 mm), the maximum total load capacity must be observed including the weight of the cabinet:
– 500 kg for type RTA, RYA, RDA, RDE 600 mm wide,
– 600 kg for type RTA, RYA, RDA, RDE 800 mm wide. - When using the RAX-RK-Dxx-X1 castor set with reinforcing frame (RAX-MS-X47-X1 castors included), the maximum total load capacity is 1050 kg including the weight of the cabinet**. The height of the cabinet is increased by 158 mm. The specified load capacity is valid for both 600 and 800 mm cabinet widths.
- When using the RAX-RK-Txx-X1 castor set with reinforcing frame, the maximum total load capacity is 1500 kg including the weight of the cabinet**. The height of the cabinet is increased by 143 mm. The specified load capacity is valid for both 600 and 800 mm cabinet widths.
- When using the RAX-RK-Hxx-X1castor set with reinforcing frame, the maximum total load capacity is 1900 kg including the weight of the cabinet**. The height of the cabinet is increased by 168 mm. The specified load capacity is valid for both 600 and 800 mm cabinet widths.
- The A3 and A7 models are for direct floor mounting only and cannot use bases, levelling feet or castors.
- To guarantee stability, at least 65 % of the load must be installed in the lower half of the cabinet height.
- The relevant standards* must be observed when taxiing with a loaded cabinet.
Installation of the cabinet
- To ensure the maximum recommended load capacity and stability, it is essential that the load is evenly distributed between the front and rear vertical rails.
- The cabinet must be placed on a level floor and and adjust any differences using the levelling feet.
- To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a brush
and secured by the fringe edge (both are included in the delivery).
Environmental protection
- All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.
Certificate and conformity
- This product is certified with TÜV SÜD Czech and fully in accordance with ČSN EN 62208 ed.2:2012 (EN 62208:2011). Latest certificate is available at www.triton-racks.com/certificates.

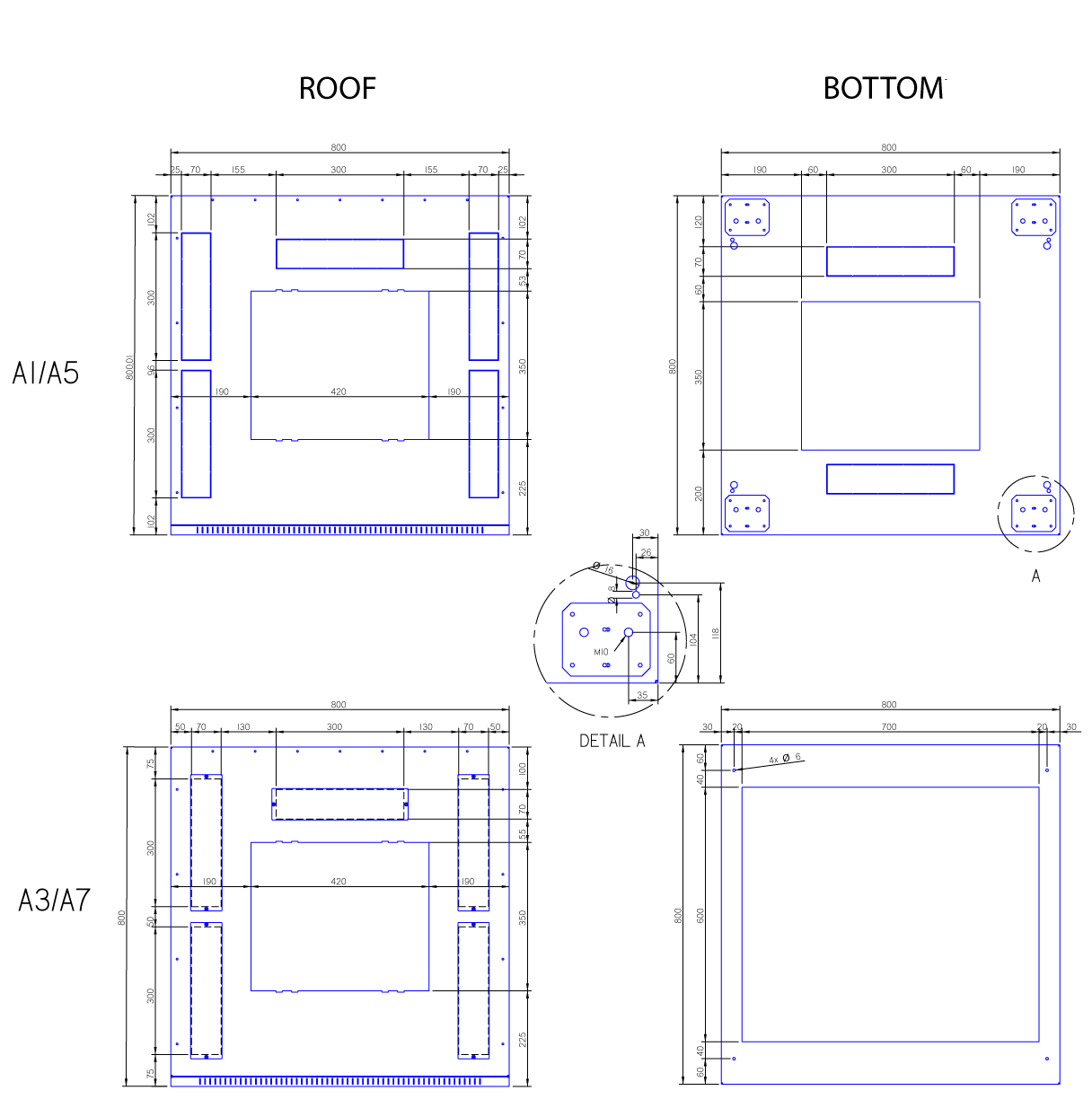

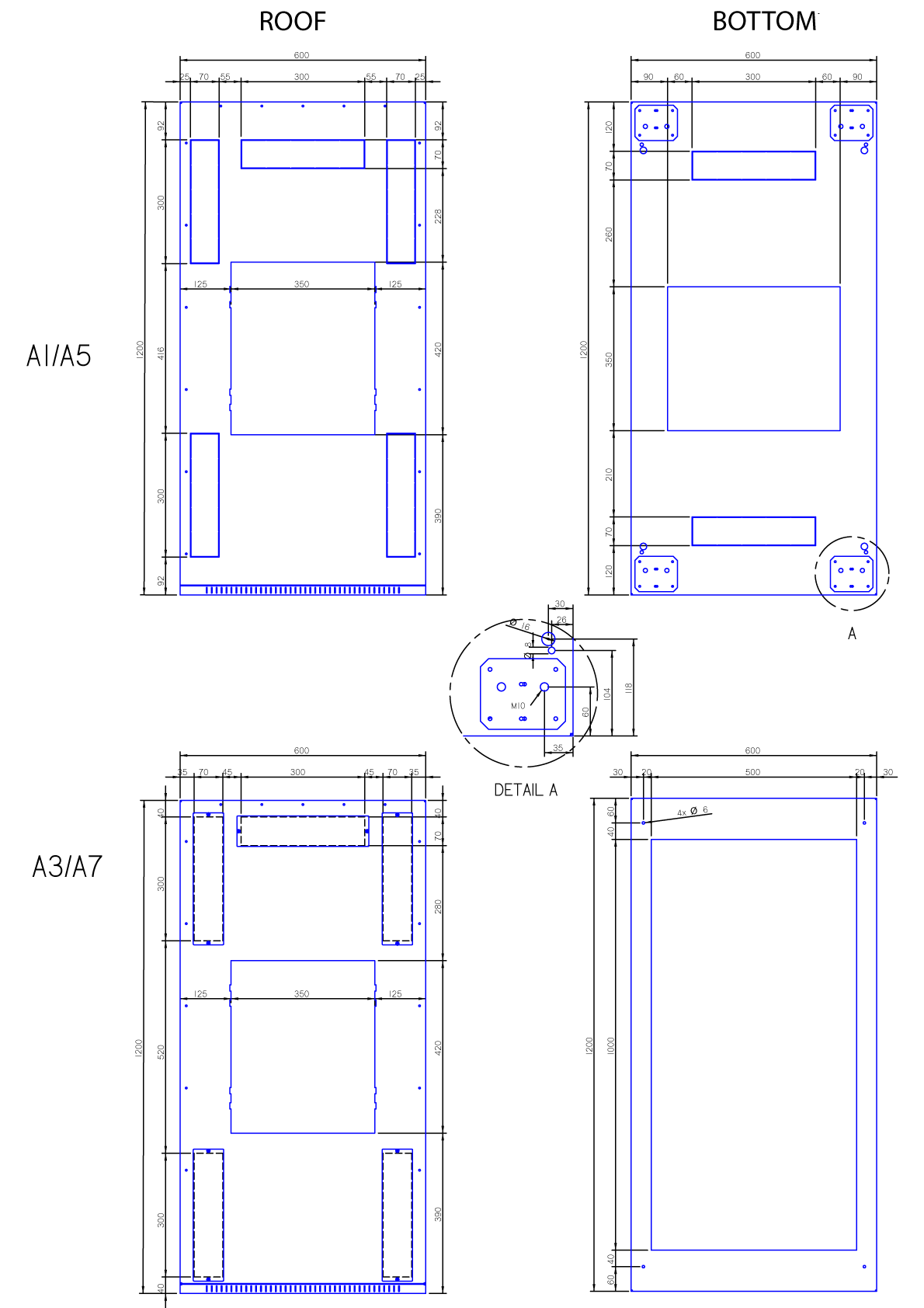

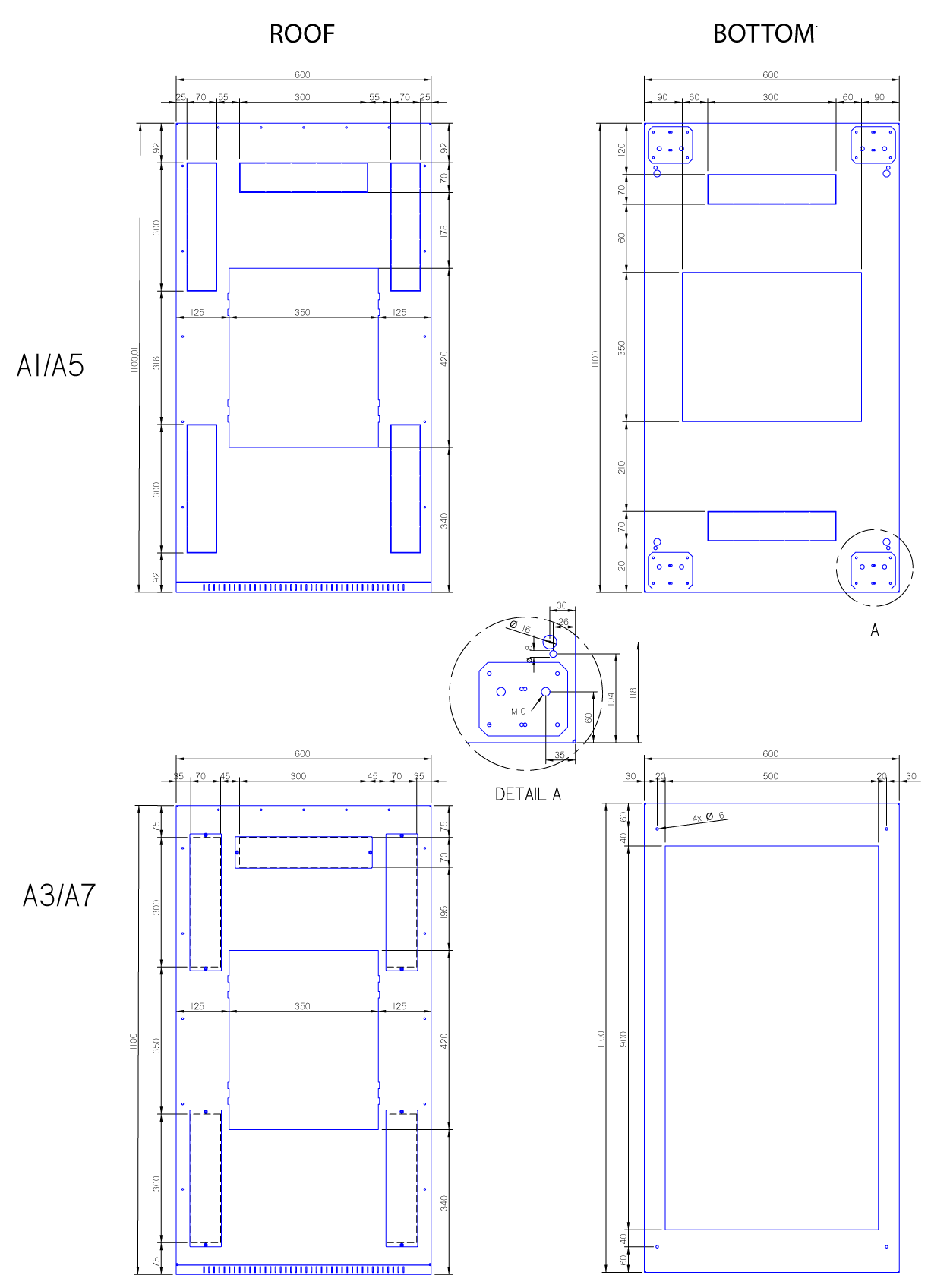

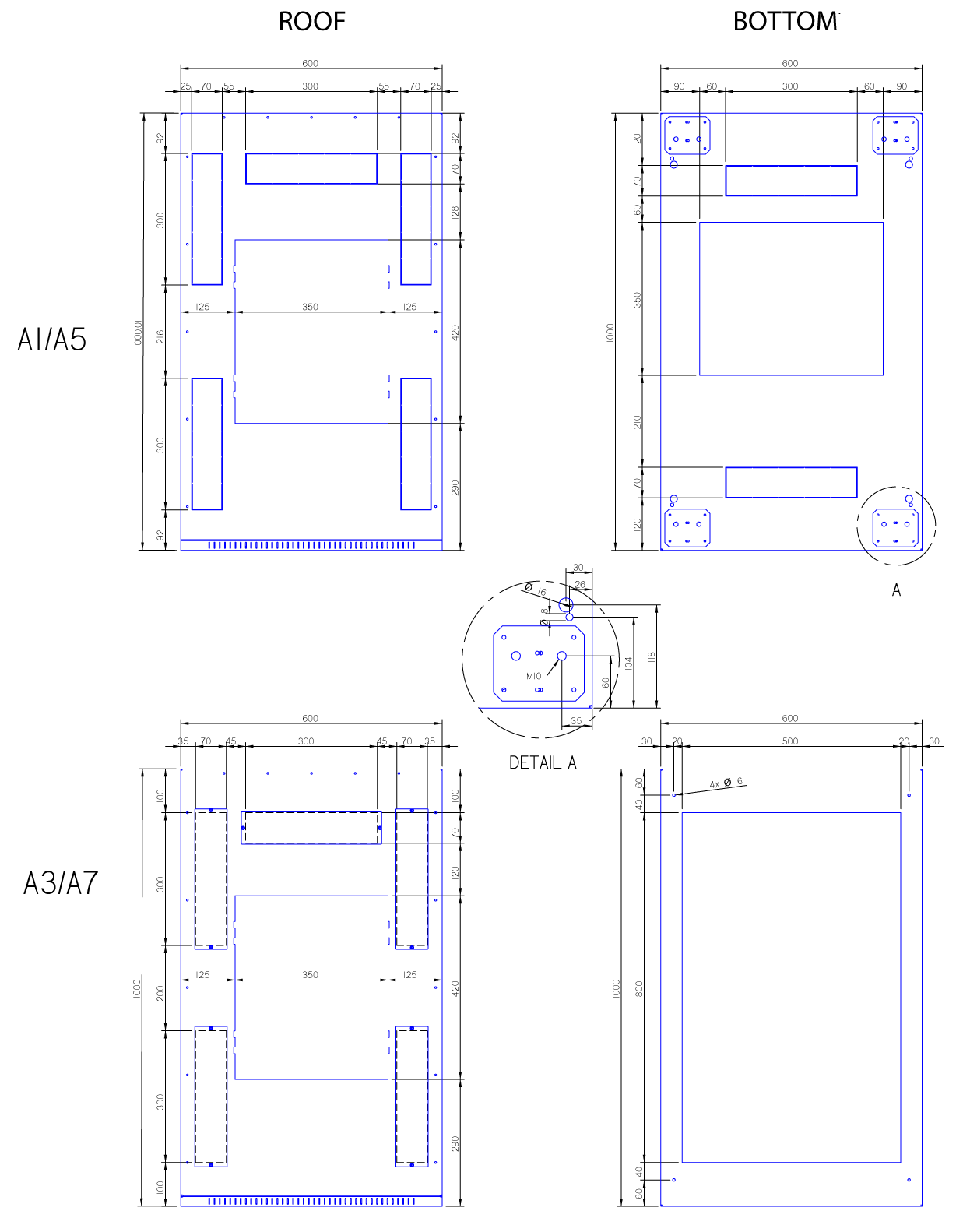

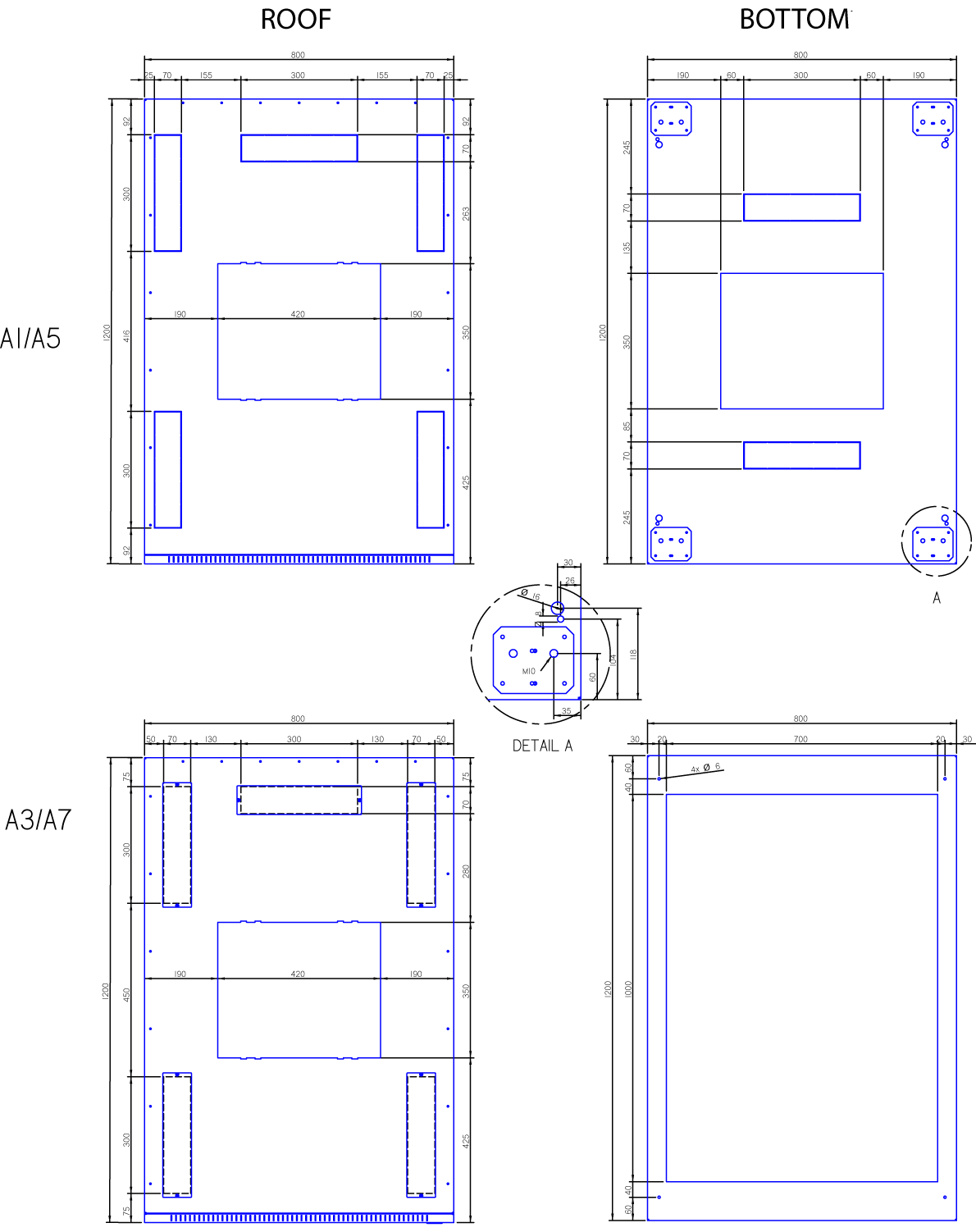

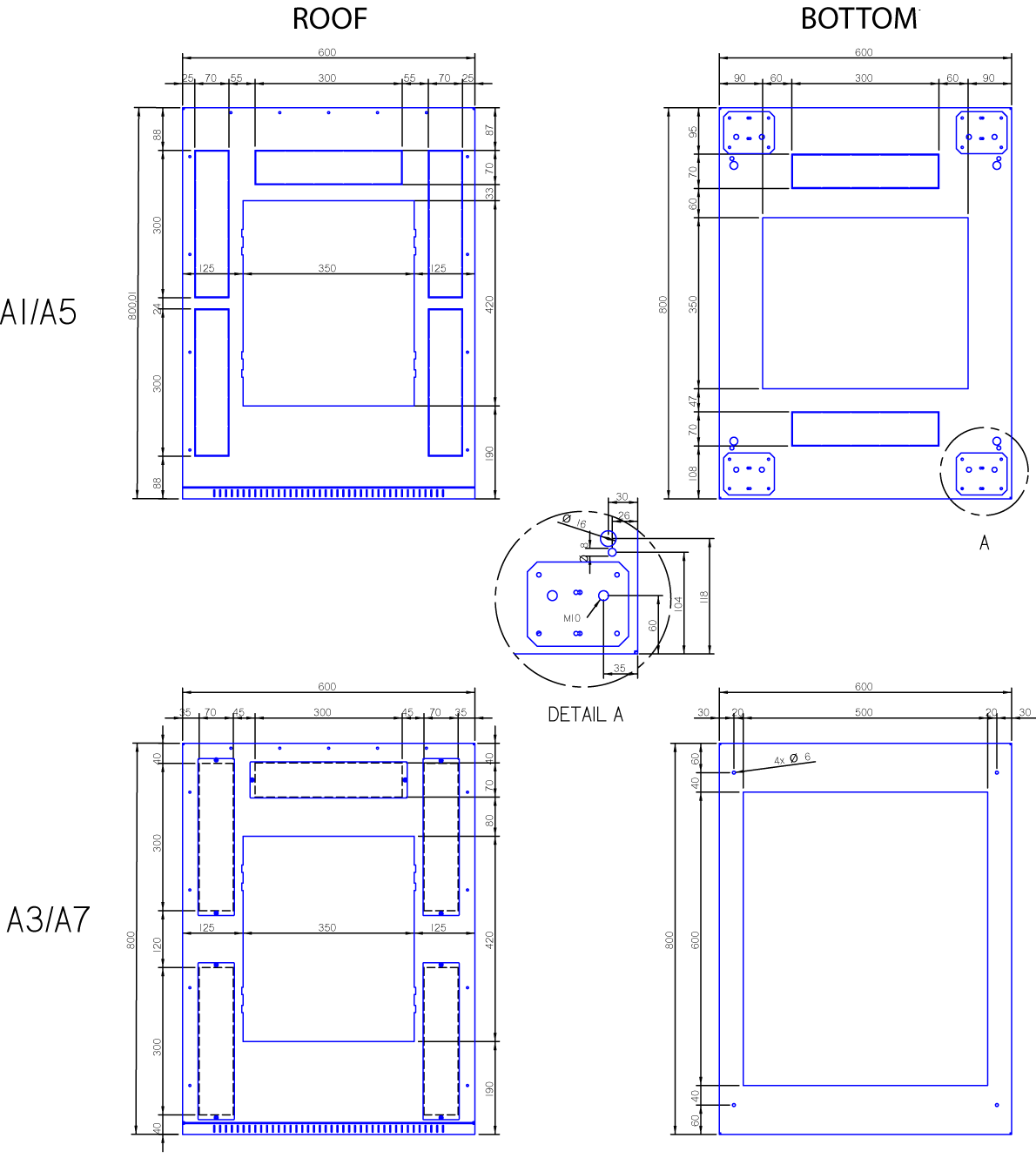

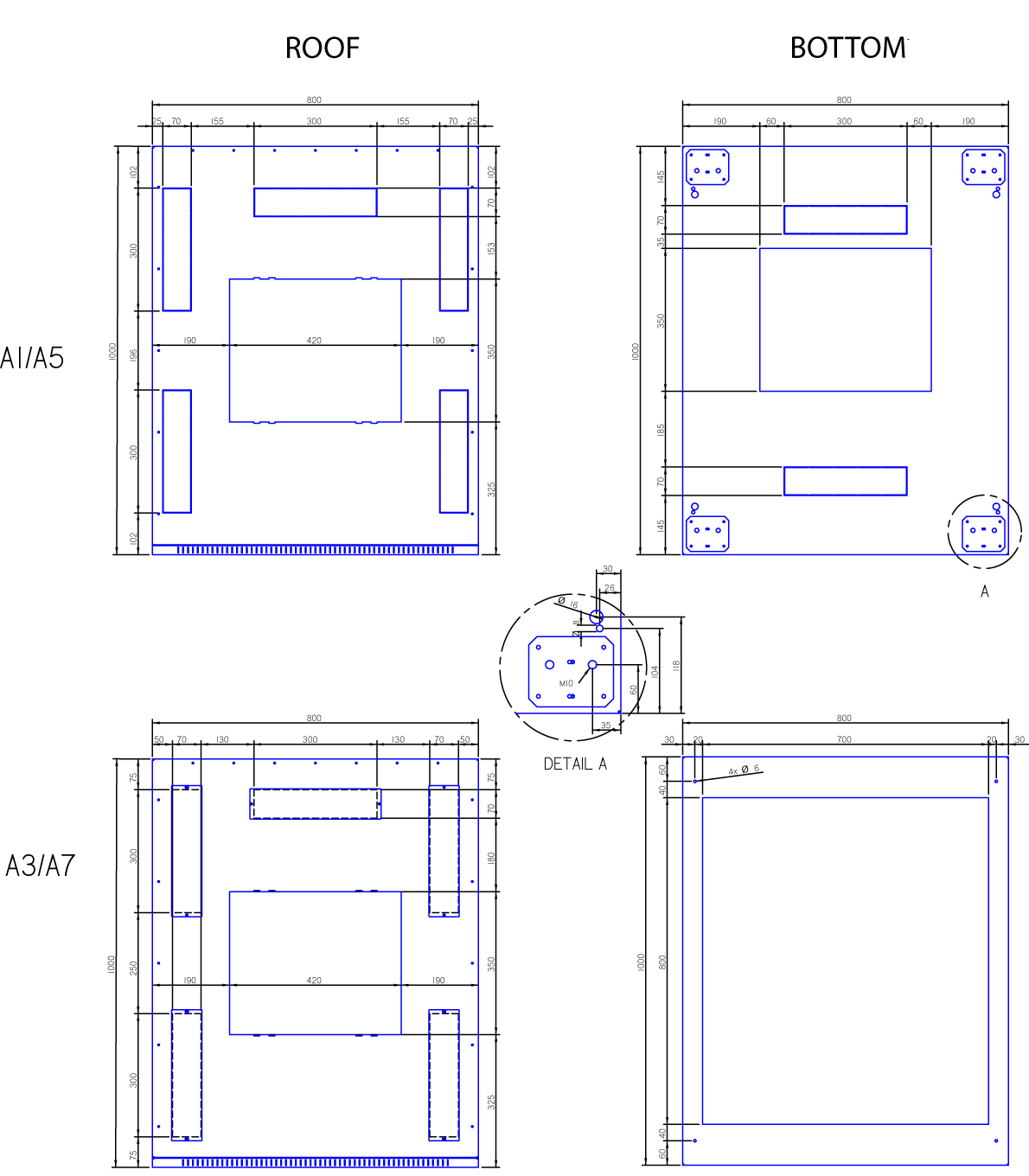

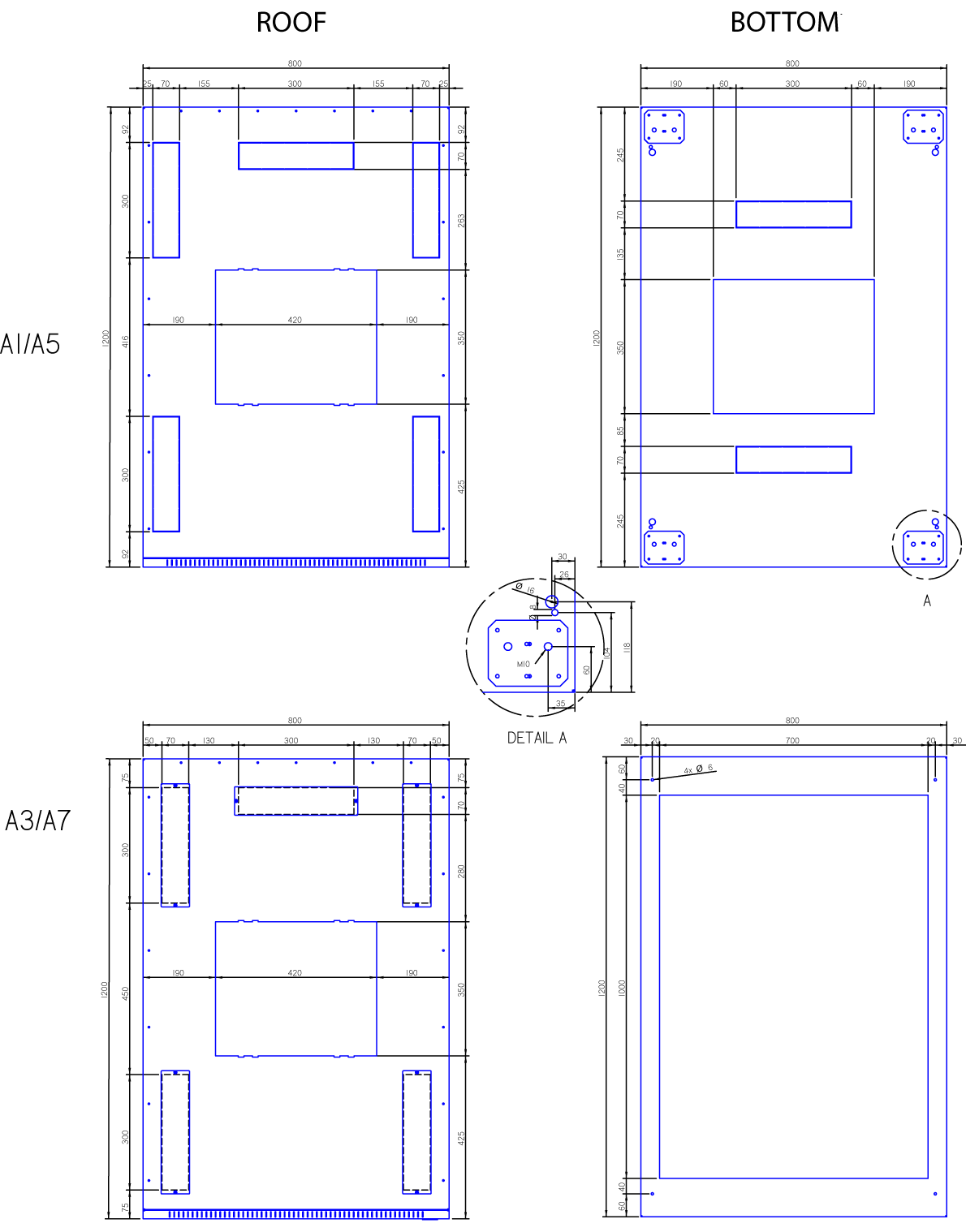

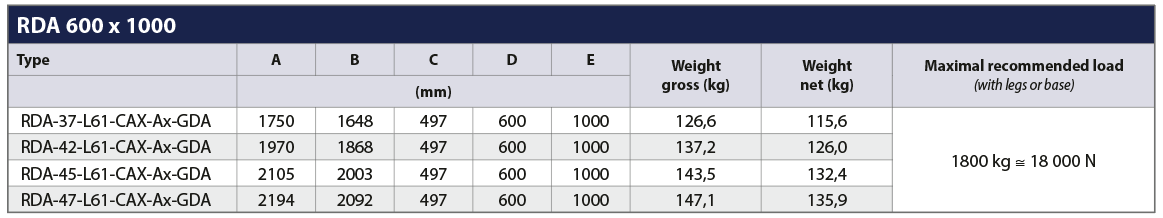

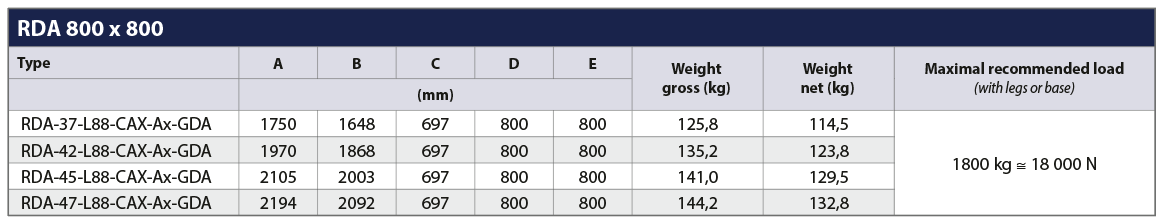

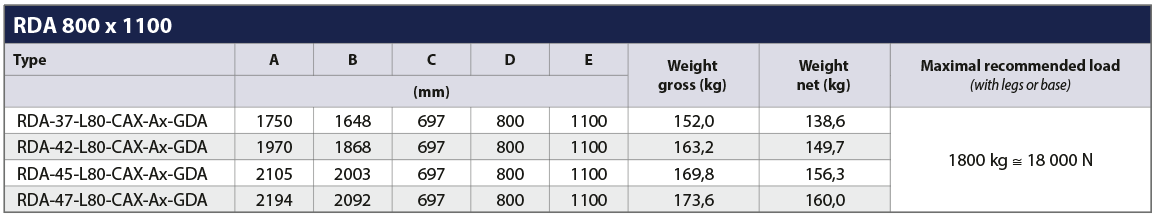

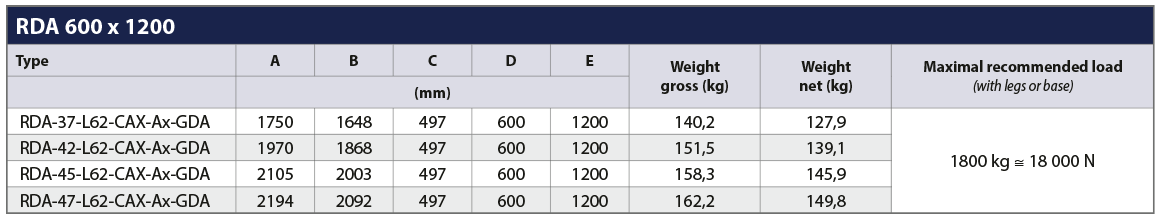

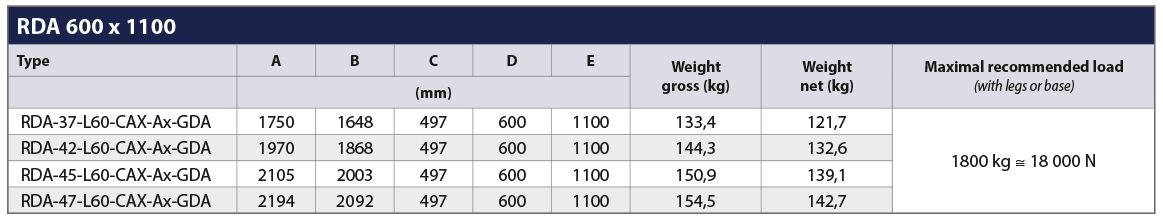

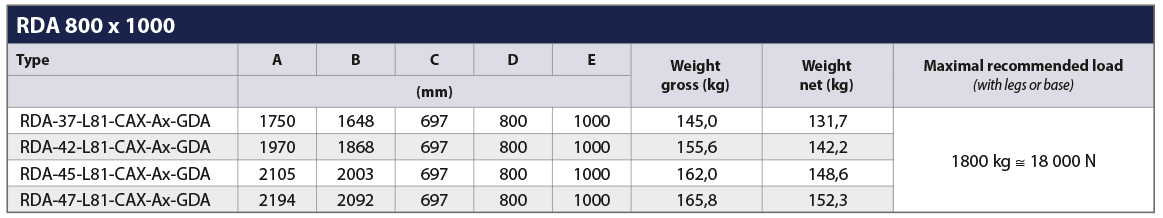

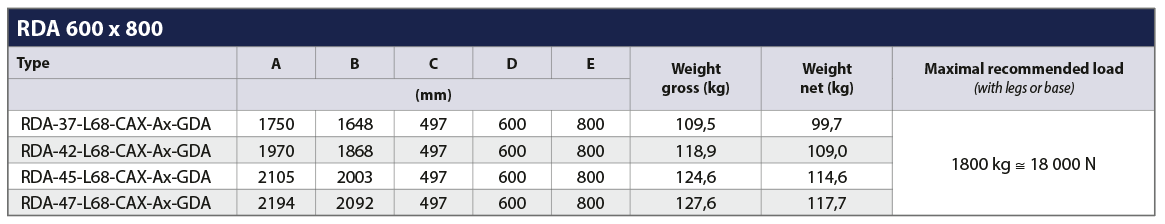

Product variants
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
Supply includes:
| Key – rear and side panels | 2x |
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Bolt M6 x 12 | 16x |
| Plastic washer 6,4 | 16x |
| Blanking panel with brush | 1x |
| Fringe edge | 1 m |
| Levelling feet | 4x |
| Nut M10 | 4x |
Material:
Steel sheet, plastic part, fastening material.
All 800 mm wide Triton cabinets can be equipped with a swing frame for mounting devices that require rear access.
The swing frame reduces the usable height of the cabinet by 5U and can carry up to 150 kg.
The frame is locked with two locks in a closed position. The distance of the swing frame from the cabinet door can be smoothly adjusted.
The position of the frame inside the cabinet affects the maximum usable depth of the mounted devices.
When mounted in the optimal position, it can be used with 19“ device, max. 330 mm deep. The swing frame can be installed simultaneously with 19“ verticals.
