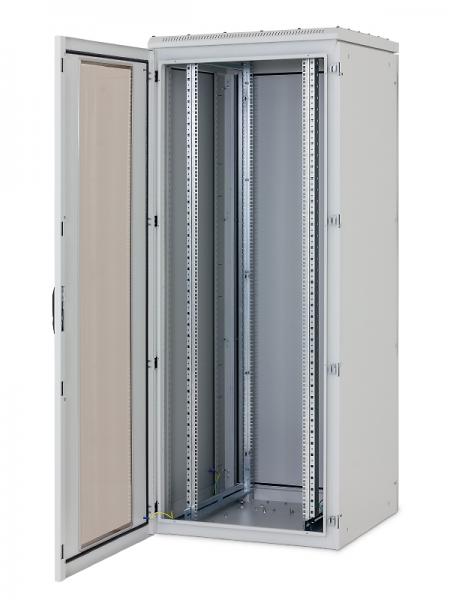

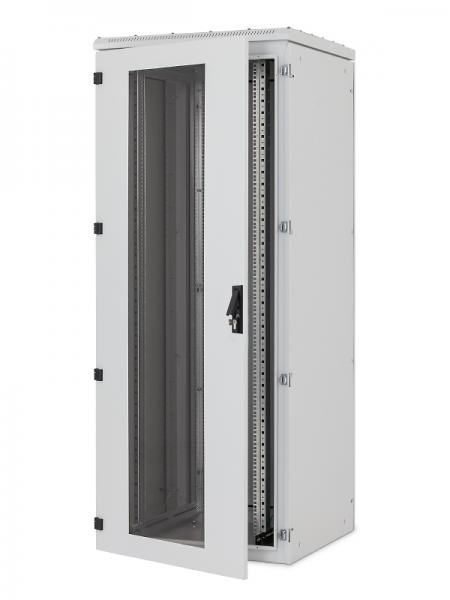

Heavy-duty server cabinet RDE
Welded server cabinet prepared for the installation of independent airconditioning units, IP54, capacity 1800 kg
Information
Welded server cabinet with removable covers, prepared for the installation of independent airconditioning units. RDE series cabinets are mainly designed for the installation of servers and active devices together with Cosmotec-Stulz airconditioners.
Rigid construction
The RDE has a robust welded construction, which is made completely of 2 mm thick material. High quality workmanship and the latest technology ensure excellent design of the cabinet.
Airconditioning units
ETE roof mounted air conditioning units can be installed on RDE cabinets for active temperature control inside the cabinet. For their installation, it is necessary to use the corresponding adaptors according to the type of unit and the required orientation of the cooling air flow (along the side walls or at the front and rear walls). The appropriate unit should be selected based on information about the thermal output of the installed equipment, the ambient temperature and the size of the cabinet. Our specialists are ready to assist you in the selection process. By installing air conditioning, the IP rating of the entire assembly drops to IP20.
Cable entries
The cable entry at the cabinet top and bottom of 300 x 100 mm is sealed with a blanking panel. All cable entries must be properly sealed especially against the dust and humidity, which could in airconditioned area start condensing and could also damage installed equipment. Furthermore it could start freezing inside of the A/C unit which can lead to its break down. A blanking panel with sealed cable grommets is part of the cabinet supply.
Ceiling blanking panel
The large ceiling blanking panel allows the installation of the air conditioner with the airflow orientation exactly according to the needs of the installed equipment. By installing the air conditioner, the IP rating of the entire assembly drops to IP20.
IP54
The RDE series cabinets with higher protection are designed to protect equipment especially against the harmful effects of water and dust. The perforation of the roof is only a design feature and does not reduce the protection level of the cabinet. The side covers are bolted to the skeleton and, like the doors, are fitted with a foam seal. There are holes in the covers to allow the enclosures to be joined into assemblies.
Multipoint locking system
The sliding locking system ensures perfect sealing of the door against the cabinet skeleton. The system is compatible with handles and locks from the world’s leading manufacturers, including electronic and code locks.
Flexible door opening
The own hinge system allows the door to open almost 180°. The door can be easily removed and re-mounted to change the direction of opening.
Glass
The metal doors with glued glass are made of 4 mm thick tempered safety glass, which is resistant to common impacts. When broken, it forms a number of small fragments like automotive glass. For safety reasons, we recommend closing the door after installing the equipment in the cabinet to prevent collision with other objects. Used glass is tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.
Adjustable vertical rails
Strenghtened vertical 19” rails can be adjusted freely in any depth of the cabinet. This simplifies mounting of the device and configuration of cables.
Removable side panels and rear cover
RDE has a welded frame and removable side and rear panels. These are fixed to the frame using a lock with with safety countersunk screws.
Castors, levelling feet, base
The cabinet can be placed on levelling feet (included) or, with optional equipment, on a base, castors or heavy-duty castors with reinforcing frame.
Bonding
All detachable parts are bonded together according to the requirements of the relevant standard.
Flex frame
(valid for 800 mm wide cabinets) The system allows the installation of sliding rails in 19”, 21” and 23” spans. Another option is to shift the 19” vertical rail spacing to one side to provide more space on the other side.
Middle pair of vertical rails
For cabinets deeper than 800 mm, a third pair of vertical rails for mounting the technology is supplied as standard. Thanks to their open profile, they do not restrict the installation of deeper equipment. Shorter devices can be mounted on the central vertical rail using different types of brackets (optional accessories).
Wider body rails
Wide cabinet skeleton rails are intended for an additional installation of 19“ power distribution units that afterwards do not occupy space within the cabinet. Thanks to this smart solution it does not block sliding servers even within the 600 mm cabinet type.
Accessories in skeleton rails
The skeleton rails are provided with mounting holes on the inner edges throughout their entire height. The holes are in the unit spacing of the vertical rails and can be used for mounting certain types of accessories.
Optional accessories
RAx-VP-D5x-X1
Horizontal cable management panel. Installation in the skeleton (rail) of the cabinet.
RAX-VP-Vxx-X2
Vertical cable management panel. Installation in the skeleton rail.
RAx-KL-ETE-Yx
Air conditioning units.
RAx-RV-Xxx-XV
Adapters for air conditioning units.
RAx-RV-Xxx-XV
The adapter for IP5x cover that allows installation of standard fan unit (filter for cabinet bottom for air intake included).
RAx-RV-V66-X1
The IP5X cover for standard fan unit, installation on adapter.
Swing frame
The 800 mm wide RDE cabinets can be equipped with a swing frame with a load capacity of 150kg. Maximum available depth of the 19“ equipment is 330 mm.
- 19“ free-standing cabinet with IP54 protection.
- Cabinet includes 4 adjustable vertical rails for device mounting (6 rails for cabinets deeper than 800 mm).
- Cabinet construction:
–welded steel frame with removable side panels,
– single wing door with foam seling in versions of solid metal or glazed with safety tempered glass 4mm (they can be on the front or back of the cabinet), to reach required sealing these are equipped by multipoint locking as standard,
– preparation for easy joining of cabinets into larger assemblies. - Max. permissible load of the door is 20 kg.
- Min. thickness of the surface finish is 65 μm.
- These cabinets are intended for installation data and telecommunication devices and their distribution systems.
- The frame of the cabinet and all the removable parts (side and rear covers, doors…) are bonded with flexible cables that have to be properly fixed and inserted into connectors throughout the period of use of the cabinet.
- There is one M8 screw placed on the bottom part of the cabinet as a central earthing point.
- Cable openings covered with screwed and sealed blanking panels are placed in the top and the bottom part of the cabinet.
- The maximum recommended static load of the cabinet is 1800 kg using levelling feet or a base.
Operating conditions
- Operating environment:
– the indoor environment,
– the cabinet is not intended for outdoor installations and for installations in environment that can negatively influencethe functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings). - Must be protected against:
– mechanical damage,
– improper handling,
– a different usage than the cabinet is intended for. - Improper handling is especially:
– overloading (exceeding the maximum recommended load capacity),
– installation of equipment that adversely affects the operation and function of the cabinet or installed equipment,
– change of the construction or design of the cabinet. - When using the RAX-MS-X47-X1 castor set for direct mounting on the cabinet (the height of the cabinet is increased by 155 mm), the maximum total load capacity must be observed including the weight of the cabinet:
– 500 kg for 600 mm wide,
– 600 kg for 800 mm wide. - When using the RAX-RK-Dxx-X1 castor set with reinforcing frame (RAX-MS-X47-X1 castors included), the maximum total load capacity is 1050 kg including the weight of the cabinet**. The height of the cabinet is increased by 158 mm. The specified load capacity is valid for both 600 and 800 mm cabinet widths.
- When using the RAX-RK-Txx-X1 castor set with reinforcing frame, the maximum total load capacity is 1500 kg including the weight of the cabinet**. The height of the cabinet is increased by 143 mm. The specified load capacity is valid for both 600 and 800 mm cabinet widths.
- When using the RAX-RK-Hxx-X1 castor set with reinforcing frame, the maximum total load capacity is 1900 kg including the weight of the cabinet**. The height of the cabinet is increased by 168 mm. The specified load capacity is valid for both 600 and 800 mm cabinet widths.
- To guarantee stability, at least 65 % of the load must be installed in the lower half of the cabinet height.
- The relevant standards* must be observed when taxiing with a loaded cabinet.
Installation of the cabinet
- To ensure the maximum recommended load capacity and stability, it is essential that the load is evenly distributed between the front and rear vertical rails.
- The cabinet must be placed on a level floor and and adjust any differences using the levelling feet.
Environmental protection
- All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.
Certificate and conformity
- This product is certified with EZÚ CZ and fully in accordance with ČSN EN 62208 ed.2:2012 (EN 62208:2011). Latest certificate is available at www.triton-racks.com/certificates.
* The load capacities of the castors are applicable for travel speed up to 4 km/h on level ground and smooth surface at ambient temperature in the range of 10-30 °C. All dimensions, load capacities and tolerances correspond to following standards: EN 12527-12533, DIN 7845.
** Total weight of the cabinet = weight of the cabinet itself + installed accessories + installed equipment. Load capacity per wheel = Total weight of the enclosure / 3.
Product variants
Supply includes:
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Screw M6x12 | 16x |
| Plastic washer 6,4 | 16x |
| Adjustable feet | 4x |
| Nut M10 | 4x |
| RAX-PB-X01-X1 | 1x |
Material:
Steel sheet, safety tempered glass 4 mm, plastic part, fastening material.
| Key – front door | 2x |
| Captive nut M6 | 16x |
| Screw M6x12 | 16x |
| Plastic washer 6,4 | 16x |
| Adjustable feet | 4x |
| Nut M10 | 4x |
| RAX-PB-X01-X1 | 1x |
