Rigid construction
The RPA has a robust welded construction made of 1 mm thick material. High quality workmanship and the latest technology ensure excellent design of the cabinet.

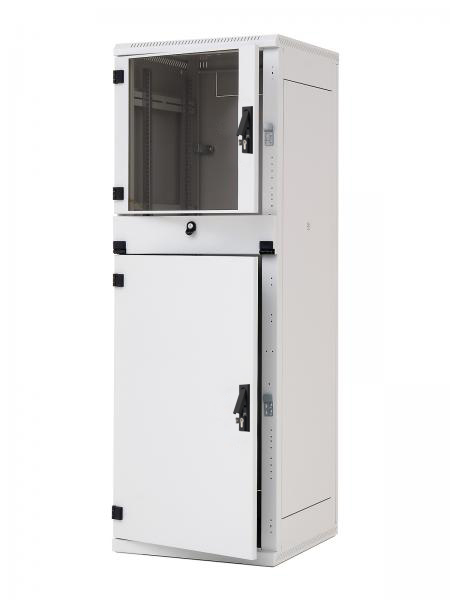

Three independently lockable sections

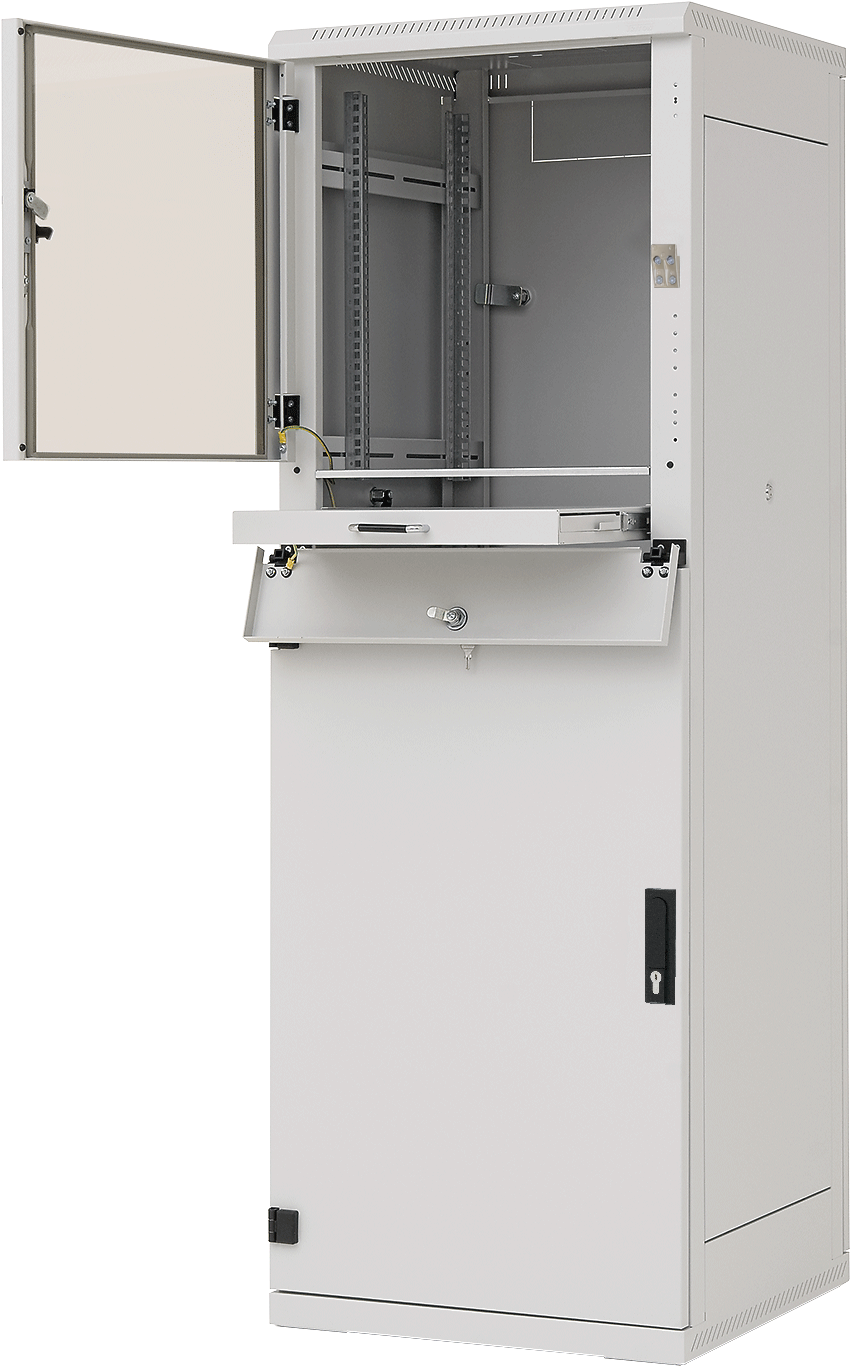

RPA cabinet has three independently lockable sections. The upper and bottom section are locked by a Tritón handle-lock; the slide-out middle section, intended for a keyboard and a mouse, has a single point lock. All sections in the standard version are operated by the same key.

Flexible door opening
The own hinge system allows the door to be opened at an angle of 165°. The door can be easily removed and re-mounted to change the direction of opening.

Glass
The metal doors with glued glass are made of 4 mm thick tempered safety glass, which is resistant to common impacts. When broken, it forms a number of small fragments like automotive glass. For safety reasons, we recommend closing the door after installing the equipment in the cabinet to prevent collision with other objects. Used glass is tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.

TRITON handles
We manufacture our own handles for the free-standing cabinets. By changing the plastic module (not included), a traditional or half-cylindrical lock insert can be used. Patent: PUV 2013-27443.

Adjustable vertical rails
Vertical 19” rails can be adjusted freely in any depth of the cabinet. This simplifies mounting of devices and configuration of connecting cables.

Removable side panels and rear cover
RYA is a cabinet with bolted skeleton, removable side panels and rear cover. The covers are attached to the skeleton by locks, as a standard with uniform key.

Door for fan units
With this cabinet type, it is possible to order a special metal door ready for mounting RAx-CH-X0x-X3 fan units. Further information is available in the section Active cooling.

Break-out blanking panels
Entry openings for cables are covered with breakout-type blanking panels. To prevent dust penetration, cables can be sealed in the opening with a brush strip, or simply secure by a protective fringe edge (both supplied with the cabinet).

Opening for a fan unit
A large opening covered with a breakout-type blanking panel enables mounting and removal of the Triton fan unit from the outside of the cabinet without the need of using screws.

Castors, levelling feet, base
The cabinet can be placed on levelling feet (included) or, with optional equipment, on a base, castors or heavy-duty castors with reinforcing frame.

Rear side of the cabinet
There are two cable entries on the rear wall of the cabinet covered with breakout panels. One is at the top and the other at the bottom edge of the cover. The other cable entries are on the ceiling and in the base of the cabinet.

Perforation of the skeleton
The RPA cabinets have a perforated skeleton to provide cooling air access to the installed technology. Cooling can be supported by the installation of fan units.

Bonding
All detachable parts are bonded together according to the requirements of the relevant standard.

Optional accessories

RAx-VP-X5x-X1
Horizontal cable management panel. Installation in the skeleton (rail) of the cabinet in the bottom compartment only.

• 19“ free-standing cabinet with IP20 protection.
• Cabinet includes 4 adjustable vertical rails for device mounting.
• Cabinet construction:
  – welded steel frame with removable side panels,
  – single door in versions of solid metal or glazed with safety tempered glass 4 mm on the cabinet front.
• Max. permissible load of the door is 20 kg.
• Min. thickness of the surface finish is 65 μm.
• The cabinets are designed for industrial environments and suitable for installation of computers or control elements of technological systems.
• The frame of the cabinet and all the removable parts (side and rear covers, doors…) are bonded with flexible cables that have to be properly fixed and inserted into connectors throughout the period of use of the cabinet.
• There is one M8 screw placed on the bottom part of the cabinet as a central earthing point.
• Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet.
• The maximum recommended static load of the cabinet is 400 kg using levelling feet or a base.

Operating conditions

• Operating environment:
  – the indoor environment,
  – the cabinet is not intended for outdoor installations and for installations in environment that can negatively influence the functionalit f the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
• Must be protected against:
  – mechanical damage,
  – improper handling,
  – a different usage than the cabinet is intended for.
• Improper handling is especially:
  – overloading (exceeding the maximum recommended load capacity),
  – installation of equipment that adversely affects the operation and function of the cabinet or installed equipment,
  – change of the construction or design of the cabinet.
• When using the RAX-MS-X81-X1 castor set for direct mounting on the cabinet (the height of the cabinet is increased by 108 mm), the maximum total load capacity of 200 kg including the weight of the cabinet must be observed.
• When using the RAX-RK-Xxx-X1 castor set with reinforcing frame (RAX-MS-X81-X1 castors included), the maximum total load capacity is 450 kg including the weight of the cabinet**. The height of the cabinet is increased by 111 mm.
• To guarantee stability, at least 65 % of the load must be installed in the lower half of the cabinet height.
• The relevant standards* must be observed when taxiing with a loaded cabinet.

Installation of the cabinet

• To ensure the maximum recommended load capacity and stability, it is essential that the load is evenly distributed between the front and rear vertical rails.
• The cabinet must be placed on a level floor and and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a brush and secured by the fringe edge (both are included in the delivery).

Environmental protection

• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

Certificate and conformity

• This product is certified with TÜV SÜD Czech and fully in accordance with ČSN EN 62208 ed.2:2012 (EN 62208:2011). Latest certificate is available at www.triton-racks.com/certificates.
