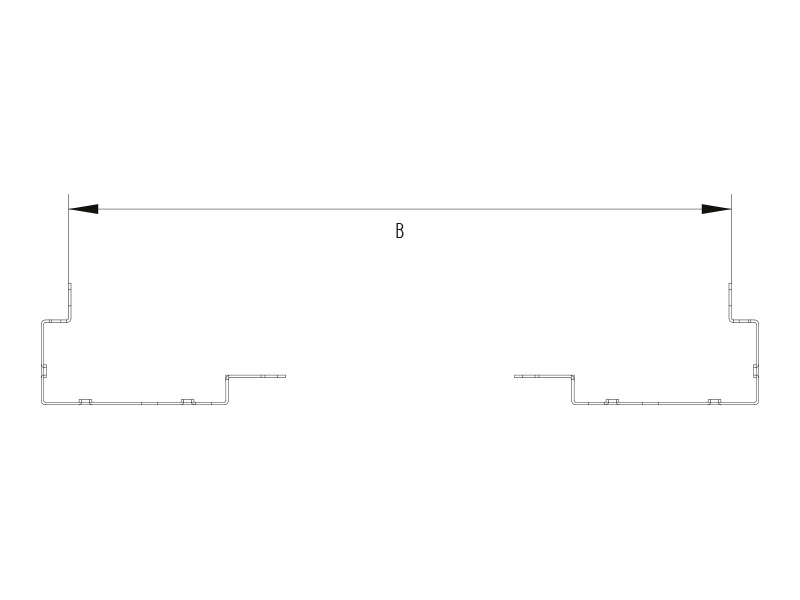

High structural strength
Vertical profile rails ensure the high load capacity and strength of the open frame.

Castors, levelling feet
Preparation for mounting castors and levelling feet. The feet are included in the package.

Stabilization set
It is mounted additionally to the base of the open frame and increases the stability of the entire assembly when installing slide-out devices such as servers. The kit is included in the rack package.

Optional accessories

RAB-VP-Hxx-x1
Vertical cable management panel.

RAX-VP-Vxx-X2
Vertical cable management rail.

RAx-VP-D5x-X1
Horizontal cable management rail.

Power distribution units
Possibility of installing the PDU in the skeleton rails using a bracket (optional accessory).

• 19“ frames are targeted for use in designated areas.
• Frame construction:
– demountable,
– metal parts bolted together,
– 19” profile frame is designed to be placed directly on the floor using and levelling feet or castors. Levelling feet are part of the frame supply.
• Min. thickness of the surface finish is 65 µm.

Operating conditions

• Operating environment:
  – the indoor environment,
  – the open frame is not intended for outdoor installations and for installations in environment that can negatively influence the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
• Must be protected against:
  – mechanical damage,
  – improper handling,
  – a different usage than the frame is intended for.
• Improper handling is especially:
  – overloading (exceeding the maximum recommended load capacity),
  – installation of equipment that adversely affects the operation and function of the frame or installed equipment,
  – change of the construction or design of the frame.
• When using the RAX-MS-X81-X1 castor set for direct mounting on the frame (the height of the cabinet is increased by 108 mm), the maximum total load capacity of 450 kg including the weight of the frame must be observed.
• When using the RAX-MS-X47-X1 castor set for direct mounting on the frame (the height of the cabinet is increased by 155 mm), the maximum total load capacity of 900 kg including the weight of the frame must be observed.
• To guarantee stability, at least 65 % of the load must be installed in the lower half of the frame height.
• The relevant standards* must be observed when taxiing with a loaded frame.

Installation of the cabinet

• To ensure the maximum recommended load capacity and stability, it is essential that the load is evenly distributed between the front and rear vertical rails.
• The frame must be placed on a level floor and and adjust any differences using the levelling feet.

Environmental protection

• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations

Certificate and conformity

• This product is in accordance with ČSN EN 60297-3-100 : 2009 (IEC 60297-3-100:2008).

* The load capacities of the castors are applicable for travel speed up to 4 km/h on level ground and smooth surface at ambient temperature in the range of 10-30 °C. All dimensions, load capacities and tolerances correspond to following standards: EN 12527-12533, DIN 7845.

** Total weight of the cabinet = weight of the cabinet itself + installed accessories + installed equipment.
