Rigid construction
The cabinet has a robust welded construction. High quality workmanship and the latest technology ensure excellent design of the cabinet.

Doors
The cabinet doors are fully glass as standard, but can also be solid metal or perforated on request.

Flexible door opening
The own hinge system allows the door to be opened at an angle of 165°. The door can be easily removed. By rotating whole cabinet you change the direction of door opening.

Glass
The full-glass doors are made of 4 mm thick tempered safety glass, which is resistant to ordinary impacts. When broken, it forms a number of small fragments like automotive glass. For safety reasons, we recommend closing the full-glass door after installing the equipment in the cabinet so that it cannot collide with other objects. Our full-glass doors are tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.

Door lock
Allows easy and quick access to the cabinet.

Adjustable vertical rails
Vertical 19” rails can be adjusted freely in any depth of the cabinet. This simplifies mounting of the device and configuration of cables. One pair of verticals is preinstalled. There is a perforation in the back of the skeleton which is a replacement for the second pair of verticals. Another option is to add vertical rails as an optional accessory.

Break-out blanking panels
In the upper, lower and rear part of the cabinet there are cable entrances covered with break-out blanking panels. The cables can be sealed against dust penetration with a brush (included in the cabinet supply).

Ventilation
The RBA type A6 has 6 break-out blanking panels for the installation of ventilation units RAC-CH-X2x-X1 or fans RAX-CH-X07-X9 (up to 3 in top and 3 in bottom part of the cabinet). The RBA cabinet now allows the installation of equipment that previously could not be cooled enough in wall-mounted cabinets and had to be installed in free-standing cabinets.

• 19“ one-sectioned wall-mounted cabinet with IP20 protection.

• Cabinet is to be hanged right on the wall.

• Cabinet includes two sliding vertical rails.

• Cabinet construction:
  – Compact welded cabinet,
  – Safety hardened fully glass door, thickness 4 mm. May be solid metal or perforated on request.

• Max. permissible load of the door is 10 kg.

• Min. thickness of the surface finish is 65 µm.

• Cabinets are intended for installation of data and telecommunication devices and their distribution systems.

• The frame of the cabinet and all the removable parts (side and rear covers, doors…) are bonded with flexible cables that have to be properly fixed and inserted into connectors throughout the period of use of the cabinet.

• There is one M8 screw placed on the bottom part of the cabinet as a central earthing point.

• Cable entries covered with break-out blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the top and the bottom side of cabinet.

• The A6 version has openings for the fan unit installation in the bottom and top of the cabinet, covered by break-out blanking panels.

Operating conditions

• Operating environment:
  – the indoor environment,
  – the cabinet is not intended for outdoor installations and for installations in environment that can negatively influence the
  functionality of the cabinet and/or the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
• Must be protected against:
  – mechanical damage,
  – improper handling,
  – a different usage than the cabinet is intended for.
• Improper handling is especially:
  – overloading (exceeding the maximum recommended load capacity),
  – installation of equipment that adversely affects the operation and function of the cabinet or installed equipment,
  – change of the construction or design of the cabinet.

Installation of the cabinet

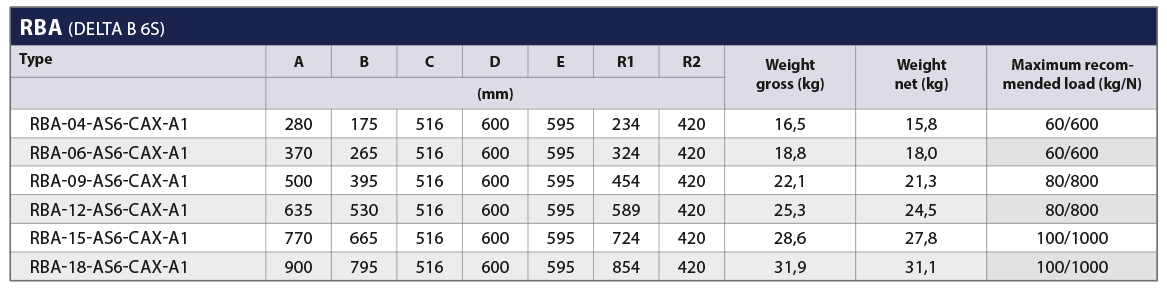

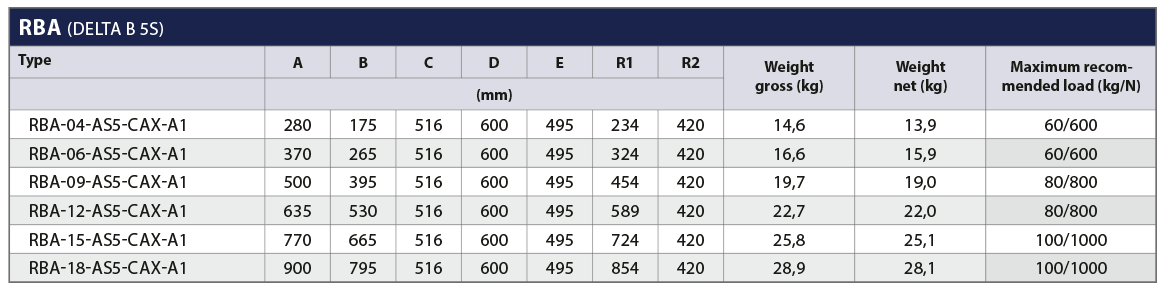

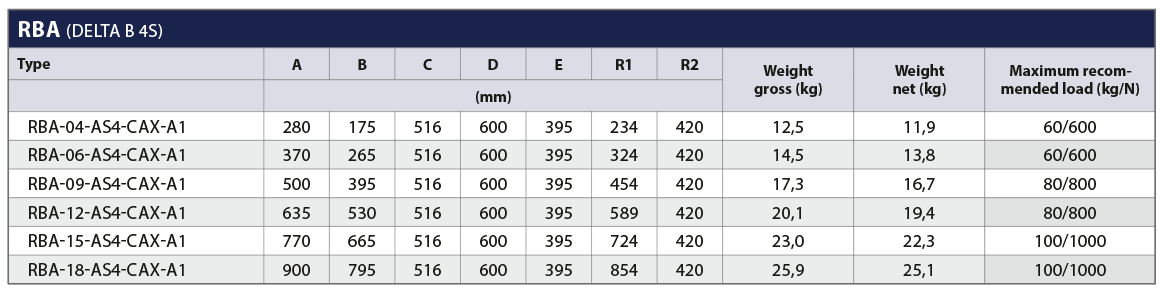

This type of cabinet is to be hanged directly on the wall using screws, dowels and washers (included). The spacing of the mounting holes is marked with “R” on the cabinet scheme. To secure the maximum recommended load capacity, it is necessary that the cabinet is mounted on a wall of adequate load capacity (brick, concrete or similar) and that the installed load is evenly distributed in the cabinet. If the cables are routed through one of the cable entries, it can be sealed against dust penetration with a brush and protected with a fringe edge (both included in the cabinet supply).

Environmental protection
All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

Certificate and conformity
This product is certified with TÜV SÜD Czech and fully in accordance with ČSN EN 62208 ed.2:2012 (EN 62208:2011). Latest certificate is available at www.triton-racks.com/certificates.
