Accessories - Power Distribution 230 V

Information

RAB-PD-X02-A1

RAB-PD-X52-X1

RAB-PD-X53-X1

Classification in compliance with norms:
ČSN EN 61643-11…….type 3
IEC 61643-1…………….class III
VDE 0675-6…………….class D

Surge protection protects the connected devices against pulse overvoltage using varistors, which resistance falls with increasing voltage.

Rating voltage Un250VAC 50/60Hz
Maximum persist working voltage300VAC
Standard discharge current (8/20?s)5kA
Nominal discharge current (8/20 ?s)10kA
Residual voltage (8/20 ?s)<1000V
Response time<25ns
Maximum working current16A

Varistor protection used in the RAB-PD-X08-A1 power distribution panels as the 3rd level of overvoltage protection in compliance with appropriate norm, accordingly as a protection placed right in front of the device and eliminating the remnant voltage, which the previous steps of house wiring surge protection failed to break off. The installed surge protection is in form of detachable block, which can discharge the pulse overvoltage and endanger the devices connected to the protective earth conductor. Therefore, it only operates on the so-called three wire distribution system with yellow-green protective conductor. If the overvoltage is really large, the surge protection module would get damaged and the control green light on the module would go out. The power distribution panel would still be working, however, it would no longer protects against the overvoltage and it is necessary to replace the surge protection module.

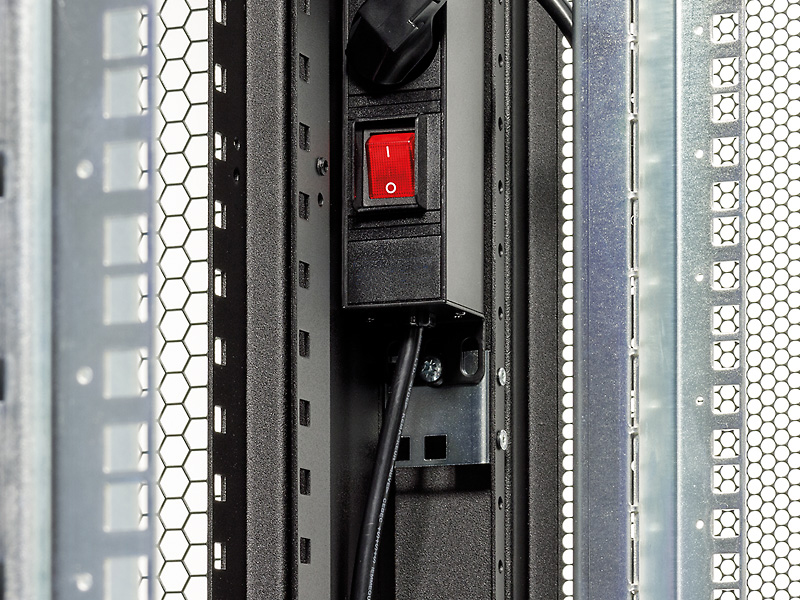

RAX-DR-X11-X1

Holder of PDU 1U (pair). The holders are designed for RTA, RDA cabinets only.

RAX-DR-X12-X1

Holder of PDU 2U (pair). The holders are designed for RDA, RTA, RYA, RDE,RSX, RSX-F cabinets only.

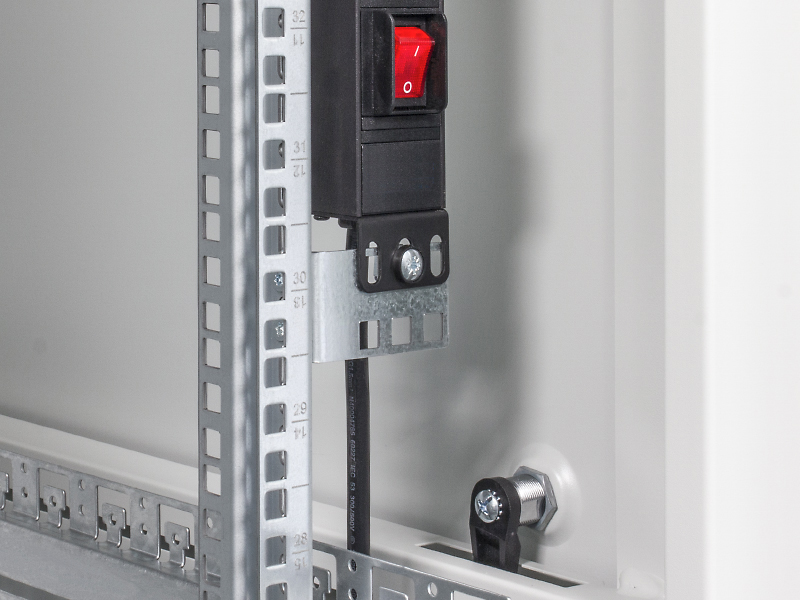

RAX-DR-X13-X1

Holder of PDU 1U (pair). The holders are designed for cabinets of width 800 mm – RMA, RZA.

RAX-DR-X17-X1

PDU with button style mounting holder 2U for cabinet skeleton (pair). For cabinets RTA, RYA, RDA, RDE, RSX, RSX-F.
