TS - Data cabinets

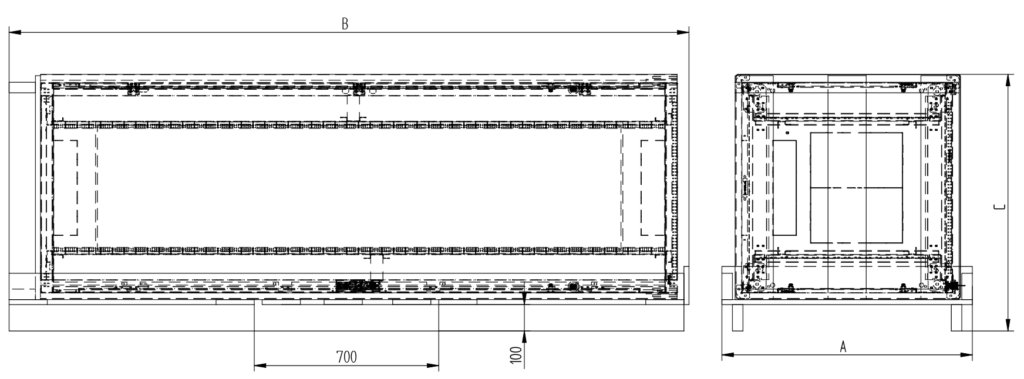

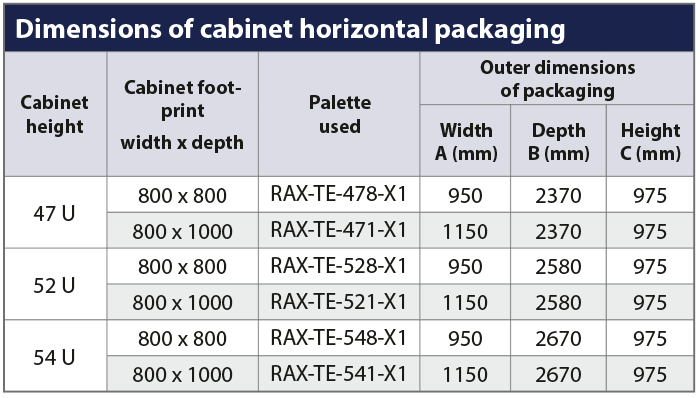

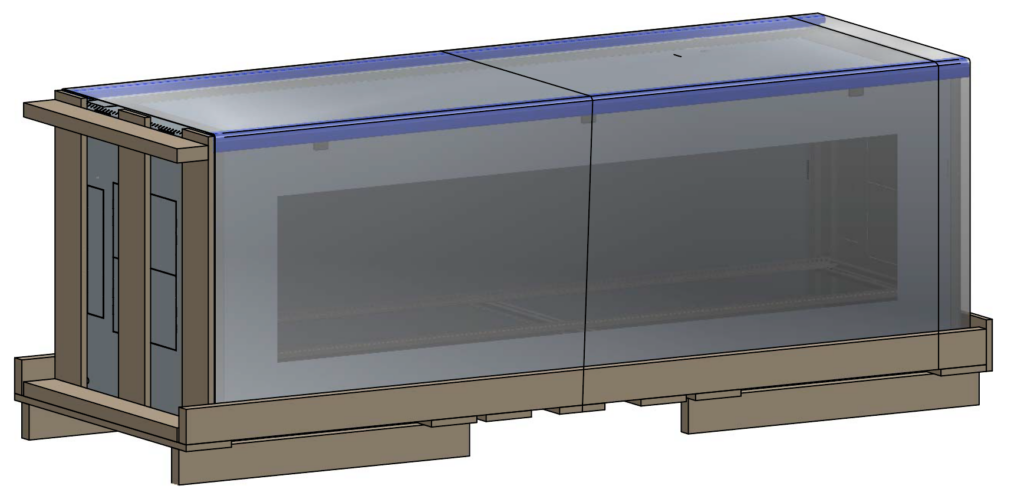

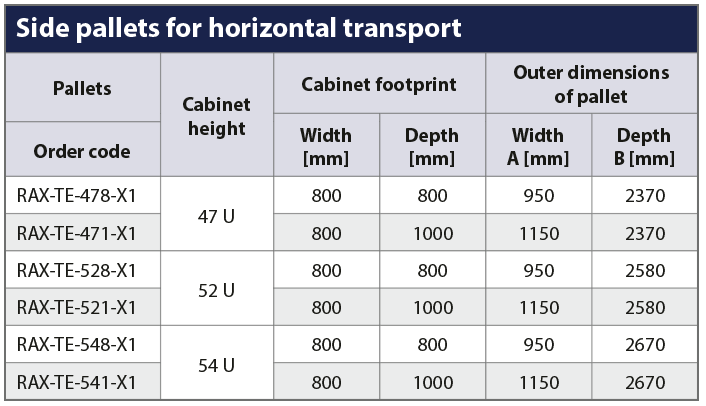

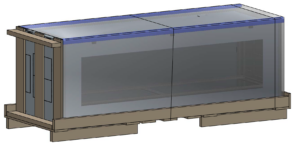

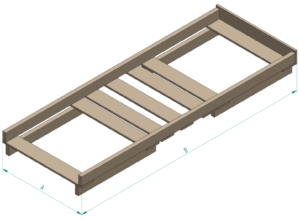

Information
19“ system
10“ system
21“ system
Central vertical rail
Detail A (vertical rail)
Detail B (central vertical rail)
Vertical rail for cabinets RDA, RDE, RXA (of width 800 mm)

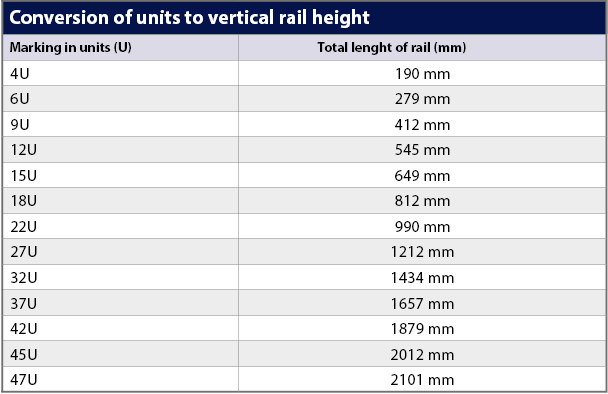

Přepočet unitů na výšku verikální lišty:
Conversion of units to the height
of the vertical rail:
4 U = 189,8 mm
6 U = 278,7 mm
9 U = 412,05 mm
12 U = 545,4 mm
15 U = 678,75 mm
18 U = 812,1 mm
22 U = 989,9 mm
27 U = 1212,15 mm
32 U = 1434,4 mm
37 U = 1656,65 mm
42 U = 1878,9 mm
45 U = 2012,25 mm
47 U = 2101,15 mm
| 800 x 600 – 470 mm 800 x 800 – 670 mm 800 x 900 – 770 mm 800 x 1000 – 870 mm 800 x 1100 – 970 mm 800 x 1200 – 1070 mm | 600 x 600 – 510 mm 600 x 800 – 710 mm 600 x 900 – 810 mm 600 x 1000 – 910 mm 600 x 1100 – 1010 mm 600 x 1200 – 1110 mm |
| Free-standing cabinets | Wall-mounted cabinets |
800 x 600 – 575 mm 600 x 600 – 575 mm | AS3 – 200 mm AS4 – 360 mm AS5 – 460 mm AS6 – 560 mm AD2 – 260 mm AD5 – 480 mm AD6 – 580 mm |
| Free-standing cabinets | Wall-mounted cabinets |
| 600X – 35 mm 800X – 50 mm | RBA – 25 mm RBA 10″ – 30 mm RFA – 20 mm RKA – 30 mm RUA – 50 mm RXA – 35 mm |
600X – 37 mm
800X – 55 mm
unit = 44,45 mm unit = 1,75 inch
inch = 25,4 mm
Screw: M10
lift: 24–35 mm
RAx-UP-X30-A1: minimum 350 mm, maximum 500 mm
RAx-UP-X29-A: minimum 380 mm, maximum 625 mm
RAx-UP-X31-A1: minimum 450 mm, maximum 630 mm
RAx-UP-X20-A1: minimum 250 mm, maximum 710 mm
RAx-UP-X19-A1: minimum 250 mm, maximum 810 mm
DIN support rail TH 35-7,5
DIN support rail TH 35-15
Doors of wall mounted cabinet are full-glass as standard, but can also be solid metal or perforated on request.
Full-glass doors are made of tempered glass, which is impact resistant. It is soda-lime-silica safety glass with a thickness of 4 mm. If the door should happen to break, the safety glass breaks into a number of small fragments, the edges of which are generally blunt, similar to the side windows of cars.
The risk of injury is therefore minimal. For safety reasons, it is recommended that the full-glass door be closed after installation of the equipment in the enclosure to prevent collision with other objects. Our full-glass doors are tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.
Doors of free-standing cabinet are metal with glued glass as standard, but can also be solid metal or perforated on request.
Metal door with glued glass are made using tempered glass, which is impact resistant. It is soda-lime-silica safety glass with a thickness of 4 mm. If the door should happen to break, the safety glass breaks into a number of small fragments, the edges of which are generally blunt, similar to the side windows of cars. The risk of injury is therefore minimal. For safety reasons, it is recommended that the full-glass door be closed
after installation of the equipment in the enclosure to prevent collision with other objects. Used glass is tested in a certified testing laboratory and meet the requirements of ČSN EN 12150-1+A: Glass in construction – Thermally tempered soda-lime-silicate safety glass. The tested glass meets the standard for the disintegration of glass after breakage, Certificate of Conformity CQ-24- 2023, Test Protocol IKATES 58A-2024.
